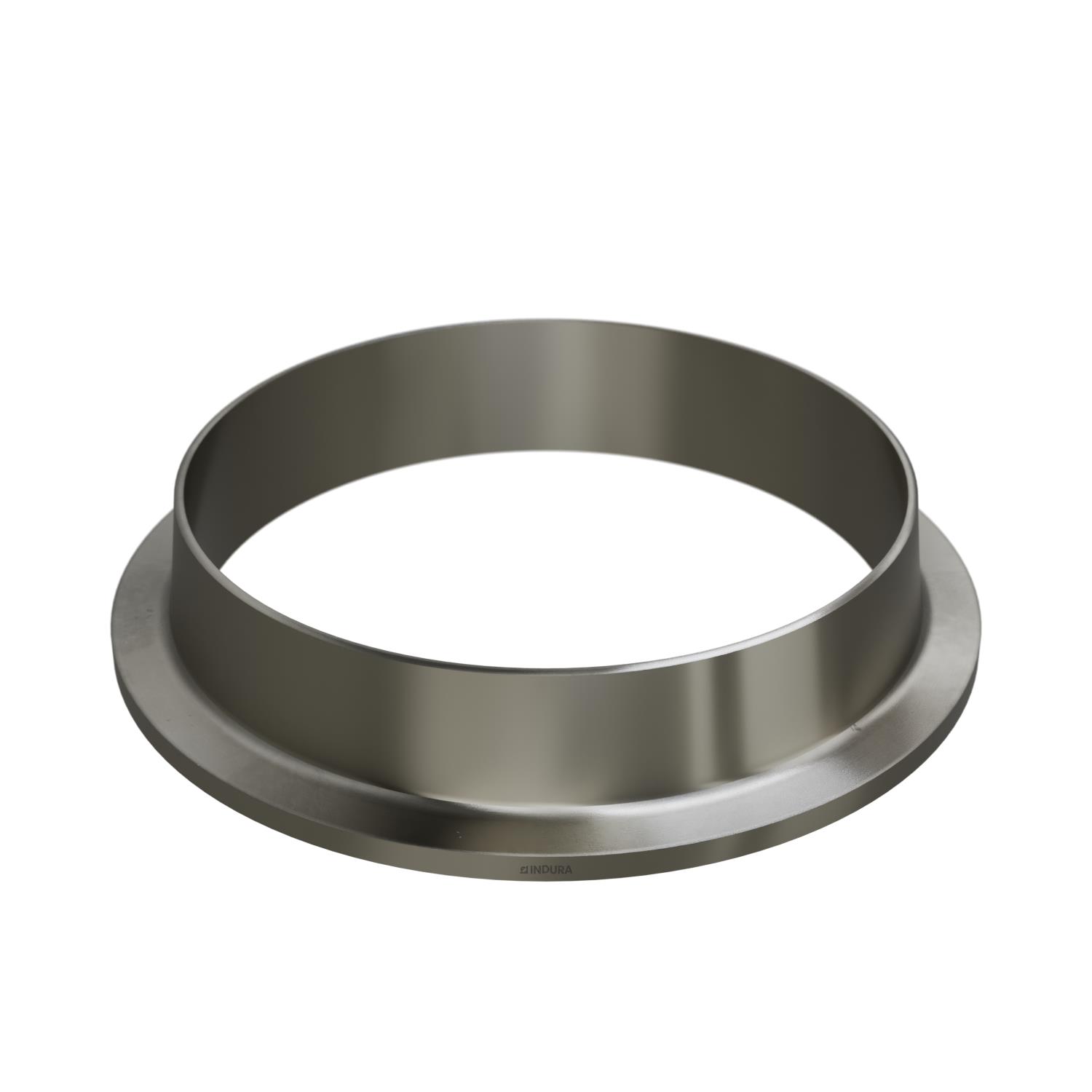

Weldring neck, EN 1092-1, T:35, PN16, DN300, 308,0, MET, AISI316L
Item no.
031994320
In stock
Product information
Material type
Stainless
Product Type
Weldring neck
Norm
EN 1092-1
Norm Type
T:35
Material name
AISI316L
Radius
R-3-6
Nominal pressure
PN16
ISO or MET
MET
HS code
7307210090
EPD Co2(kg)
9.11
Material no.
1.4404
Net Weight (kg)
6.62
Nominal Pipe Size (DN)
300
Pipe Dimension Flange (d1)
308,0
Outside Diameter 1 (d1)
370
Weld End Thickness Reduced (Sp)
2
Weld End Thickness low neck (T1)
10
Weld End Thickness (S)
4
Thickness F (F)
12
Low Outside Neck Diameter (DKS)
320
Corner radius (R1)
6
Height 4 (H4)
70
Weld End Outside Diameter (A)
308
Pcs. per pallet
48
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
750
Width pallet(mm)
800
Length pallet(mm)
1150
Number of layers
8
Pcs. per layer
6
Drawing
