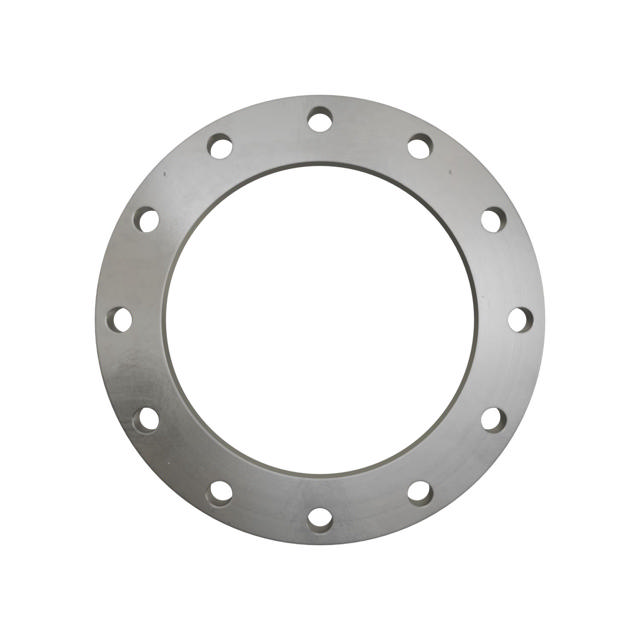

Loose plate flange, EN 1092-1, T:02, PN10, DN300, 318,0, MET, AISI316L
Item no.
031961318
In stock
Product information
Material type
Stainless
Product Type
Loose plate flange
Norm
EN 1092-1
Norm Type
T:02
Packing Surface Type
A
Material name
AISI316L
Nominal pressure
PN10
ISO or MET
MET
HS code
7307210090
EPD Co2(kg)
9.11
Material no.
1.4404
Net Weight (kg)
13.83
Nominal Pipe Size (DN)
300
Pipe Dimension Flange (d1)
318,0
Inside Diameter (B2)
324
Outside Diameter (D)
445
Thickness 1 (C1)
26
Bolt Cirkel Diameter (K)
400
Number of Bolt Holes (n)
12
Bolt Hole Diameter (L)
22
Chamfer (E)
8
Pcs. per pallet
-
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
750
Width pallet(mm)
800
Length pallet(mm)
1200
Number of layers
17
Pcs. per layer
3
Drawing
