Weldring neck, EN 1092-1, T:35, PN25, DN400, 406,4, ISO,
Item no.
031992406
Non-stock product
This is a non-stock product
When ordering, a quotation will be created instead of an order.
Product information
Material type
Stainless
Product Type
Weldring neck
Norm
EN 1092-1
Norm Type
T:35
Material name
Radius
R=5-8
Nominal pressure
PN25
ISO or MET
ISO
HS code
7307210090
EPD Co2(kg)
9.11
Material no.
1.4432
Net Weight (kg)
28.2
Nominal Pipe Size (DN)
400
Pipe Dimension Flange (d1)
406,4
Outside Diameter 1 (d1)
505
Weld End Thickness Reduced (Sp)
8
Weld End Thickness (S)
14
Thickness F (F)
24
Corner radius (R1)
8
Height 4 (H4)
110
Weld End Outside Diameter (A)
406.4
Pcs. per pallet
10
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
750
Width pallet(mm)
800
Length pallet(mm)
1150
Number of layers
5
Pcs. per layer
2

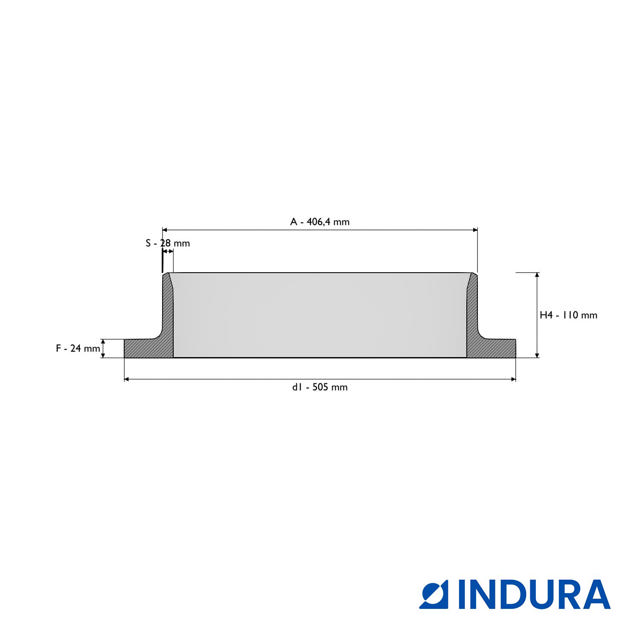

Drawing
