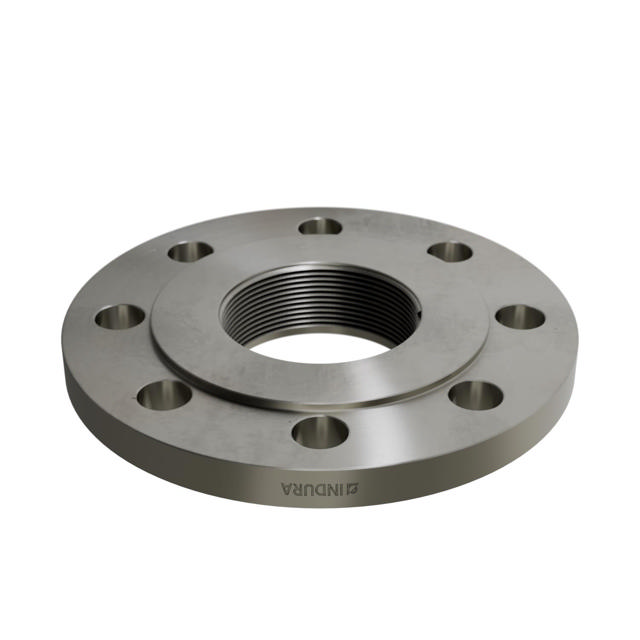

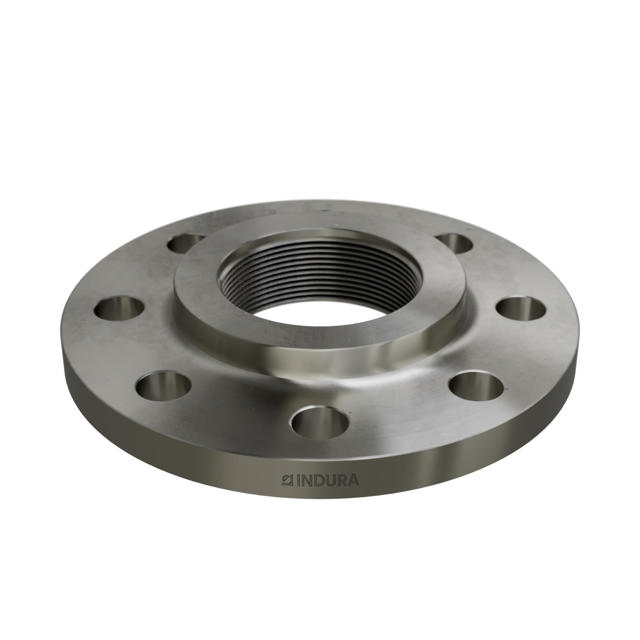

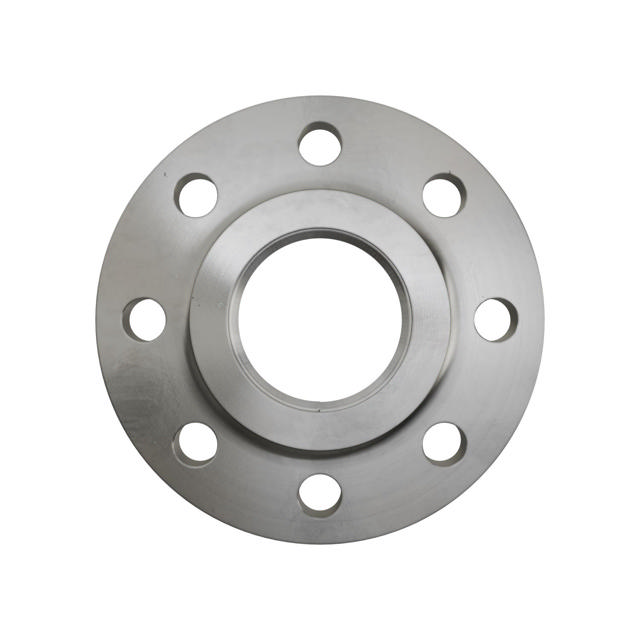

Threaded flange, EN 1092-1, T:13, PN10-16, DN65, 2 1/2", ISO, AISI316TI
Item no.
030951077
Non-stock product
This is a non-stock product
When ordering, a quotation will be created instead of an order.
Product information
Thread
ISO7/1 Rp
Product details
8 holes
Material type
Stainless
Product Type
Threaded flange
Norm
EN 1092-1
Norm Type
T:13
Packing Surface Type
B1
Material name
AISI316TI
Nominal pressure
PN10-16
ISO or MET
ISO
HS code
7307210090
EPD Co2(kg)
9.11
Material no.
1.4571
Important details
No. of bolt holes
Net Weight (kg)
2.95
Nominal Pipe Size (DN)
65
Pipe Dimension Flange (d1)
2 1/2"
Outside Diameter (D)
185
Thickness 2 (C2)
18
Bolt Cirkel Diameter (K)
145
Number of Bolt Holes (n)
8
Bolt Hole Diameter (L)
18
Corner radius (R1)
6
Low Outside Neck Diameter (N2)
104
Height 1 (H1)
32
Packing Surface Height (f1)
3
Packing Surface Diameter (d1)
122
Pcs. per pallet
-
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
550
Width pallet(mm)
800
Length pallet(mm)
1200
Number of layers
9
Pcs. per layer
25

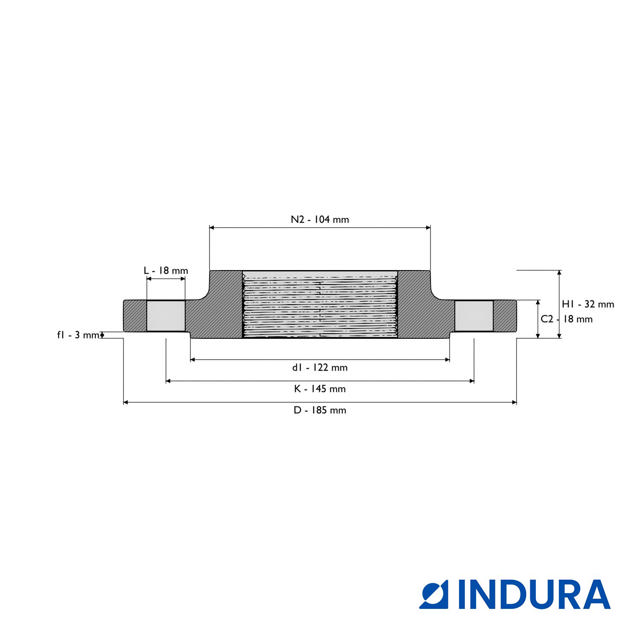

Drawing
