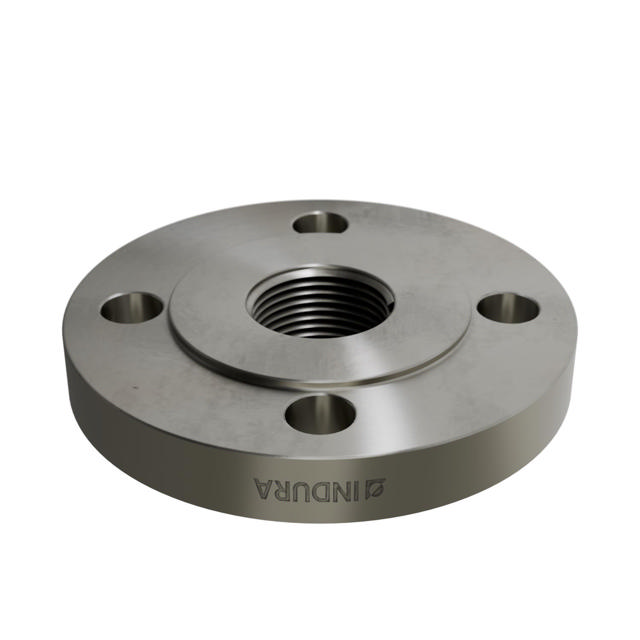

Threaded flange, EN 1092-1, T:13, PN10-40, DN25, 1", ISO, AISI316TI
Item no.
030951034
Not in stock
Product information
Thread
ISO7/1 Rp
Material type
Stainless
Product Type
Threaded flange
Norm
EN 1092-1
Norm Type
T:13
Packing Surface Type
B1
Material name
AISI316TI
Nominal pressure
PN10-40
ISO or MET
ISO
HS code
7307210090
EPD Co2(kg)
9.11
Material no.
1.4571
Net Weight (kg)
1.25
Nominal Pipe Size (DN)
25
Pipe Dimension Flange (d1)
1"
Outside Diameter (D)
115
Thickness 2 (C2)
18
Bolt Cirkel Diameter (K)
85
Number of Bolt Holes (n)
4
Bolt Hole Diameter (L)
14
Corner radius (R1)
4
Low Outside Neck Diameter (N2)
52
Height 1 (H1)
28
Packing Surface Height (f1)
2
Packing Surface Diameter (d1)
68
Pcs. per pallet
-
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
350
Width pallet(mm)
800
Length pallet(mm)
1200
Number of layers
6
Pcs. per layer
66

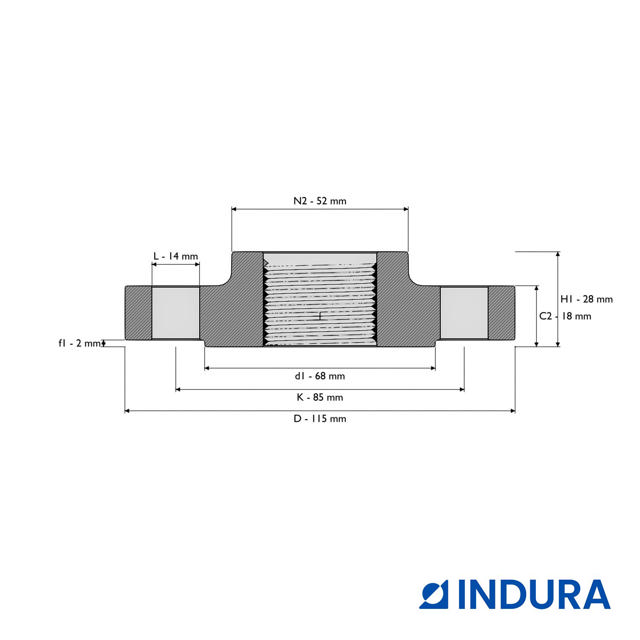

Drawing
Do you have any questions?
We are ready to assist with any questions about products, services, or anything else. Contact us for professional advice and support.
Alternative varer
Item number
Description
Norm
Material
Product Type

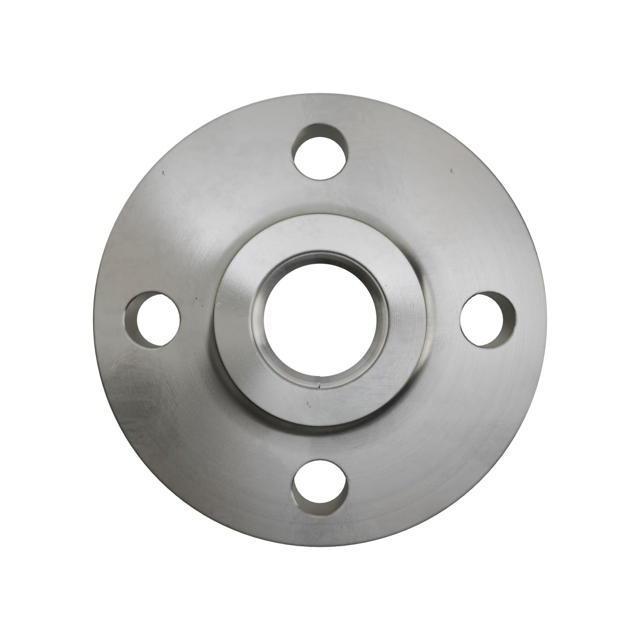

DN25 1" Threaded flange
EN 1092-1 T:13 B1 PN10-40 ISO ISO7/1 Rp
AISI316L 1.4404
Threaded flange
In stock
1-4 days delivery
