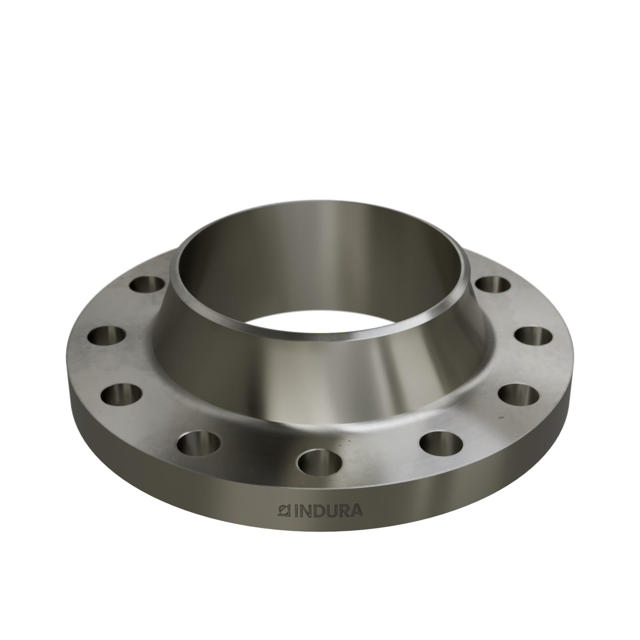

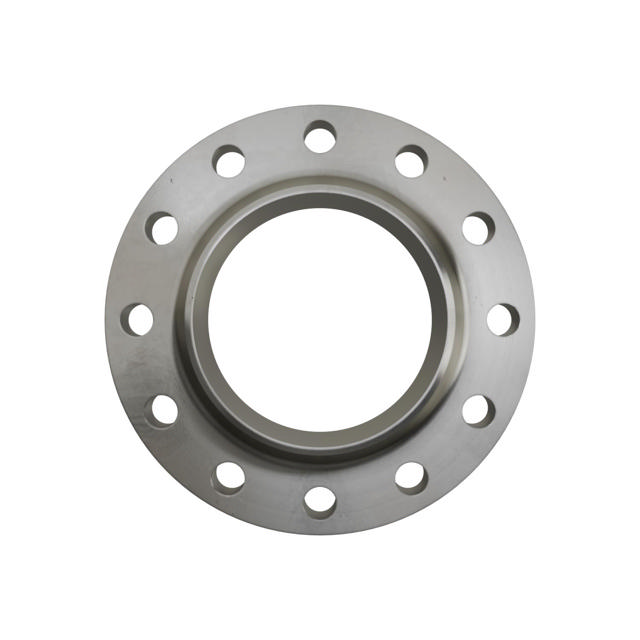

Weld-neck flange, EN 1092-1, T:11, PN63, DN250, 273,0, ISO, AISI316L
Item no.
031926273
Non-stock product
This is a non-stock product
When ordering, a quotation will be created instead of an order.
Product information
Material type
Stainless
Product Type
Weld-neck flange
Norm
EN 1092-1
Norm Type
T:11
Packing Surface Type
B2
Material name
AISI316L
Nominal pressure
PN63
ISO or MET
ISO
HS code
7307210090
EPD Co2(kg)
9.11
Material no.
1.4404
Important details
Packing surface
Net Weight (kg)
47.3
Nominal Pipe Size (DN)
250
Pipe Dimension Flange (d1)
273,0
Outside Diameter (D)
470
Weld End Thickness (S)
8.8
Thickness 2 (C2)
46
Bolt Cirkel Diameter (K)
400
Number of Bolt Holes (n)
12
Bolt Hole Diameter (L)
36
Corner radius (R1)
12
Height 2 (H2)
125
Height 3 (H3)
18
Weld End Outside Diameter (A)
273
Low Outside Neck Diameter (N1)
316
Packing Surface Height (f1)
3
Packing Surface Diameter (d1)
345
Pcs. per pallet
-
Pcs. per box
-
Pcs. per bag
-

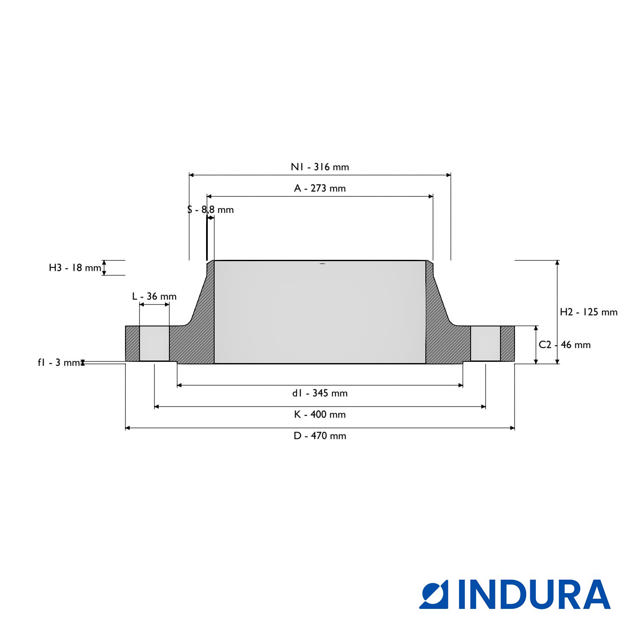

Drawing
