Weld-neck flange, EN 1092-1, T:11, PN10-40, DN32, 42,4, ISO, AISI316L
Item no.
031966042
In stock
Product information
Material type
Stainless
Product Type
Weld-neck flange
Norm
EN 1092-1
Norm Type
T:11
Packing Surface Type
B1
Material name
AISI316L
Nominal pressure
PN10-40
ISO or MET
ISO
HS code
7307210090
EPD Co2(kg)
9.11
Material no.
1.4404
Net Weight (kg)
1.86
Nominal Pipe Size (DN)
32
Pipe Dimension Flange (d1)
42,4
Outside Diameter (D)
140
Weld End Thickness (S)
2.6
Thickness 2 (C2)
18
Bolt Cirkel Diameter (K)
100
Number of Bolt Holes (n)
4
Bolt Hole Diameter (L)
18
Corner radius (R1)
6
Height 2 (H2)
42
Height 3 (H3)
6
Weld End Outside Diameter (A)
42.4
Low Outside Neck Diameter (N1)
56
Packing Surface Height (f1)
2
Packing Surface Diameter (d1)
78
Pcs. per pallet
500
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
550
Width pallet(mm)
800
Length pallet(mm)
1200
Number of layers
8
Pcs. per layer
45

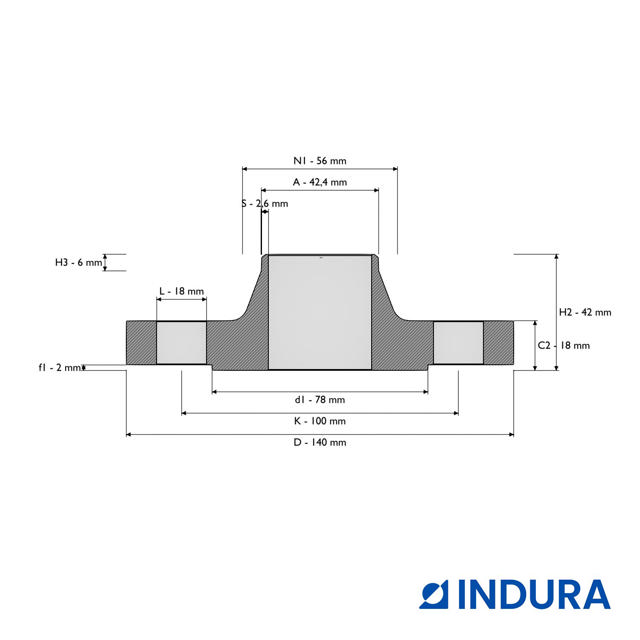

Drawing
Do you have any questions?
We are ready to assist with any questions about products, services, or anything else. Contact us for professional advice and support.
Alternative varer
Item number
Description
Norm
Material
Product Type
DN32 42,4 Weld-neck flange (S-2.6)
EN 1092-1 T:11 B1 PN10-40 ISO
AISI316TI 1.4571
Weld-neck flange
Not in stock
DN32 42,4 Weld-neck flange (S-2.6)
EN 1092-1 T:11 B1 PN10-40 ISO
AISI304L 1.4307
Weld-neck flange
In stock
DN32 42,4 Weld-neck flange (S-2.6)
EN 1092-1 T:11 B1 PN10-40 ISO
AISI321 1.4541
Weld-neck flange
Not in stock
