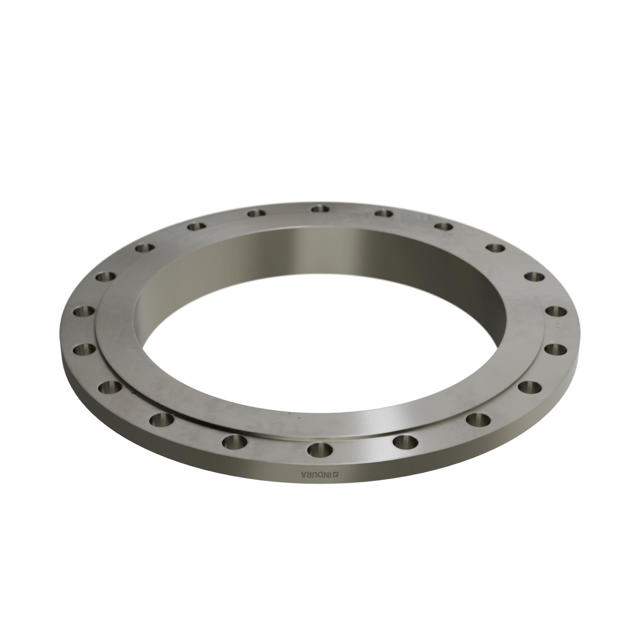

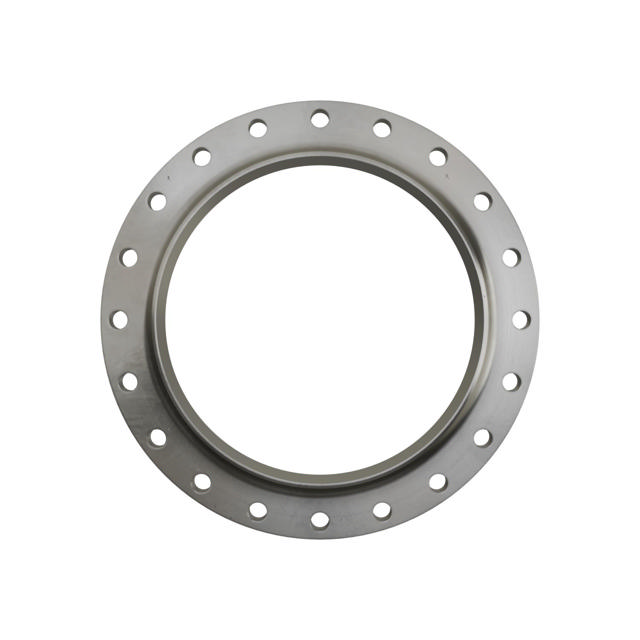

Weld-neck flange, EN 1092-1, T:11, PN10, DN450, 457,0, ISO, AISI321
Item no.
030943457
Not in stock
Product information
Material type
Stainless
Product Type
Weld-neck flange
Norm
EN 1092-1
Norm Type
T:11
Packing Surface Type
B1
Material name
AISI321
Nominal pressure
PN10
ISO or MET
ISO
HS code
7307210090
EPD Co2(kg)
9.11
Material no.
1.4541
Net Weight (kg)
33.1
Nominal Pipe Size (DN)
450
Pipe Dimension Flange (d1)
457,0
Outside Diameter (D)
615
Weld End Thickness (S)
7.1
Thickness 2 (C2)
28
Bolt Cirkel Diameter (K)
565
Number of Bolt Holes (n)
20
Bolt Hole Diameter (L)
26
Corner radius (R1)
12
Height 2 (H2)
72
Height 3 (H3)
16
Weld End Outside Diameter (A)
457
Low Outside Neck Diameter (N1)
488
Packing Surface Height (f1)
4
Packing Surface Diameter (d1)
532
Pcs. per pallet
-
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
750
Width pallet(mm)
800
Length pallet(mm)
1200
Number of layers
7
Pcs. per layer
1

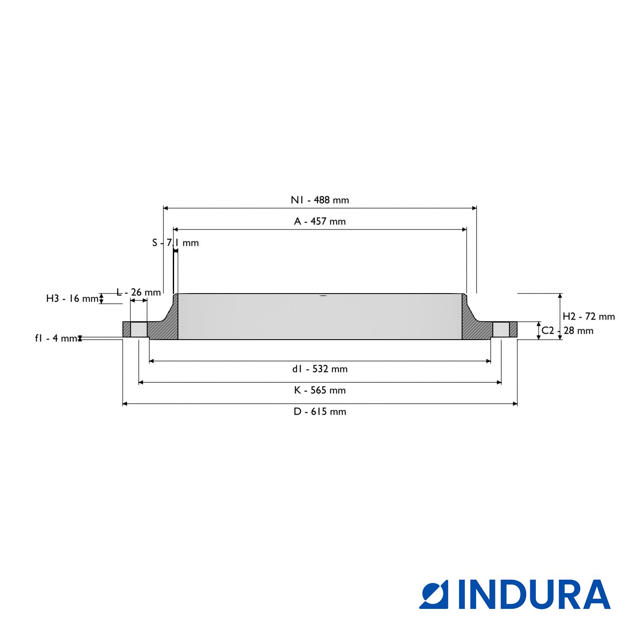

Drawing
