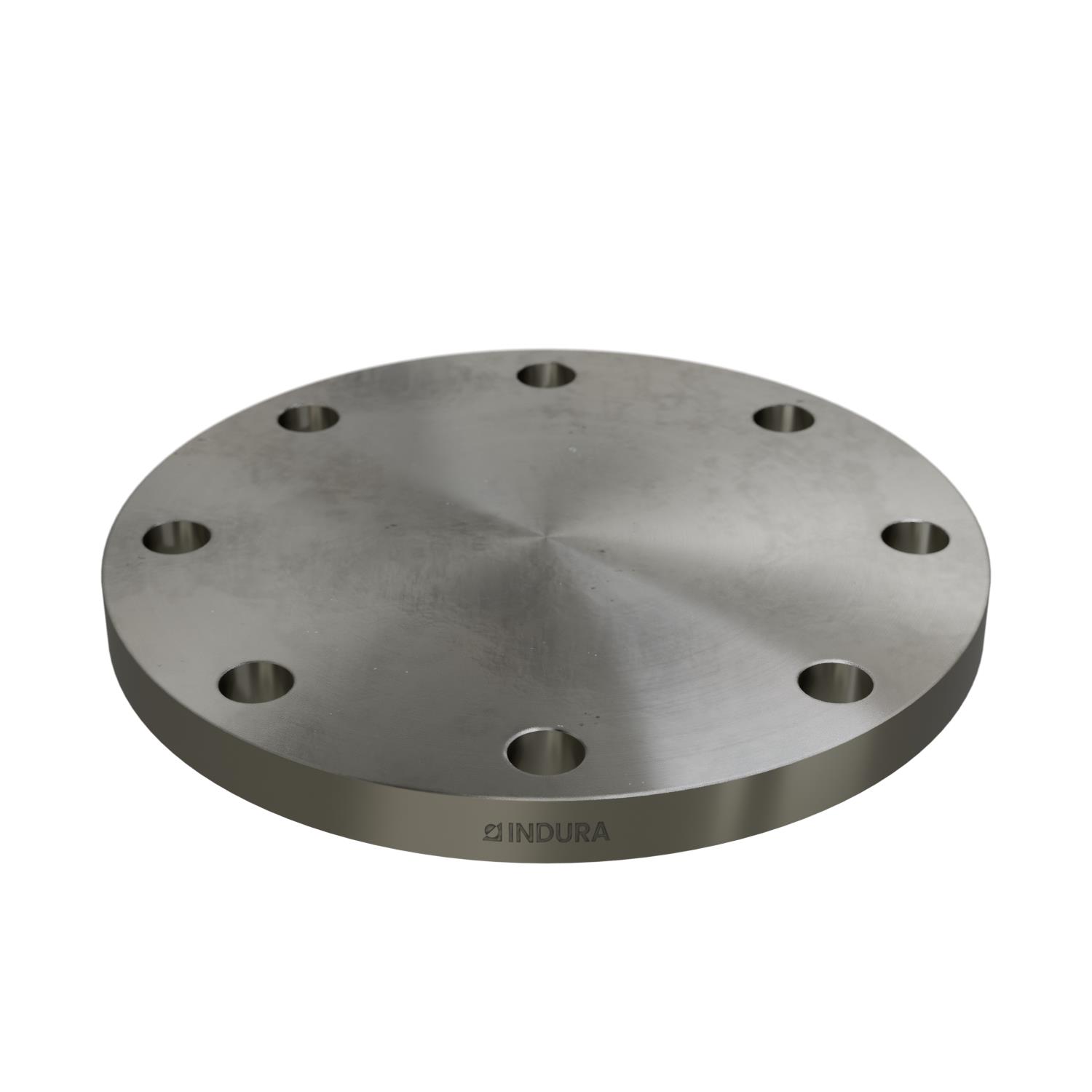

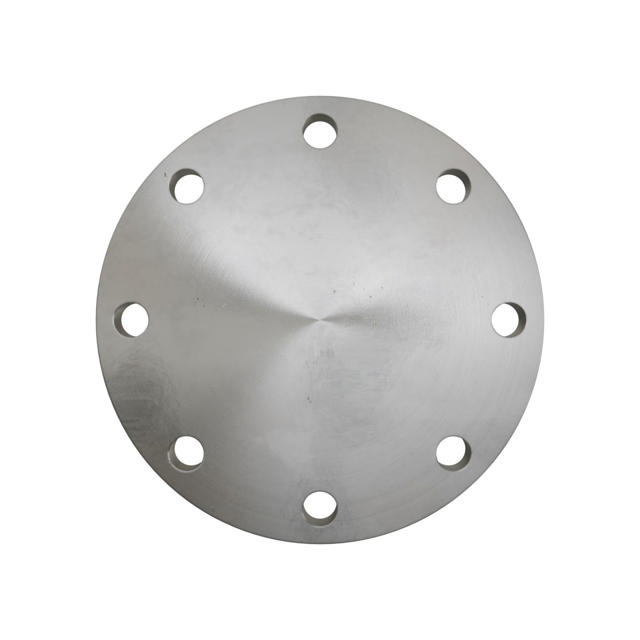

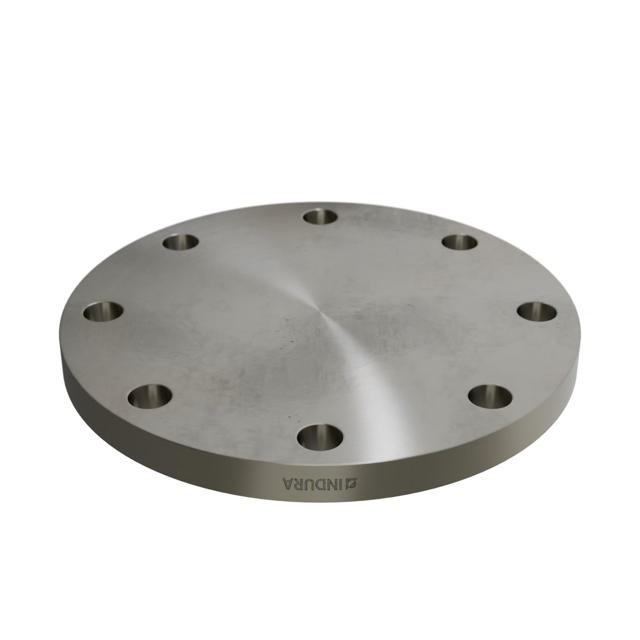

Blind flange, EN 1092-1, T:05, PN16, DN200, ISO, AISI304L
Item no.
031981219
In stock
Product information
Material type
Stainless
Product Type
Blind flange
Norm
EN 1092-1
Norm Type
T:05
Packing Surface Type
A
Material name
AISI304L
Nominal pressure
PN16
ISO or MET
ISO
HS code
7307210090
EPD Co2(kg)
9.11
Material no.
1.4307
Net Weight (kg)
16.2
Nominal Pipe Size (DN)
200
Outside Diameter (D)
340
Thickness 4 (C4)
24
Bolt Cirkel Diameter (K)
295
Number of Bolt Holes (n)
12
Bolt Hole Diameter (L)
22
Pcs. per pallet
-
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
350
Width pallet(mm)
800
Length pallet(mm)
1200
Number of layers
6
Pcs. per layer
6

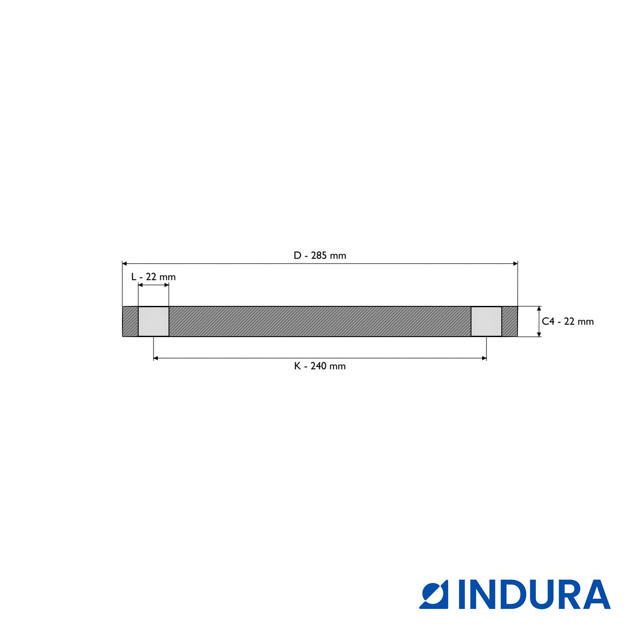

Drawing
