Loose plate flange, EN 1092-1, T:02, PN16, DN500, 521,0, MET, AISI304L
Item no.
031941522
In stock
Product information
Material type
Stainless
Product Type
Loose plate flange
Norm
EN 1092-1
Norm Type
T:02
Packing Surface Type
A
Material name
AISI304L
Nominal pressure
PN16
ISO or MET
MET
HS code
7307210090
EPD Co2(kg)
9.11
Material no.
1.4307
Net Weight (kg)
62
Nominal Pipe Size (DN)
500
Pipe Dimension Flange (d1)
521,0
Inside Diameter (B2)
530
Outside Diameter (D)
715
Thickness 1 (C1)
46
Bolt Cirkel Diameter (K)
650
Number of Bolt Holes (n)
20
Bolt Hole Diameter (L)
33
Chamfer (E)
8
Pcs. per pallet
-
Pcs. per box
-
Pcs. per bag
-

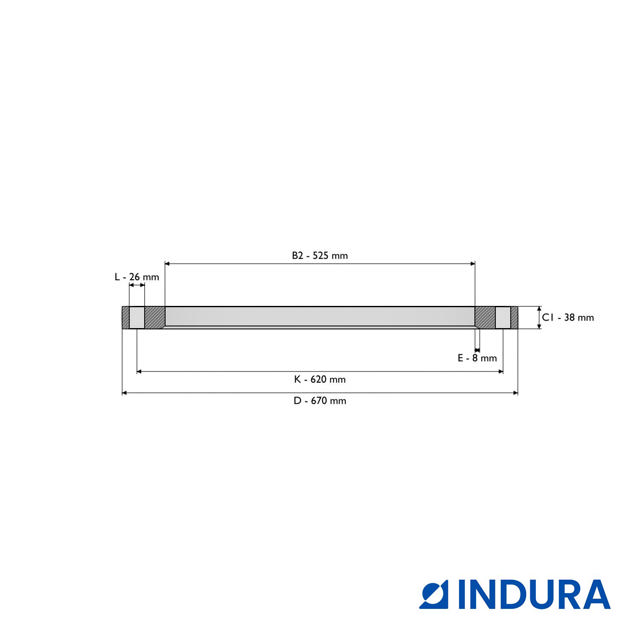

Drawing
