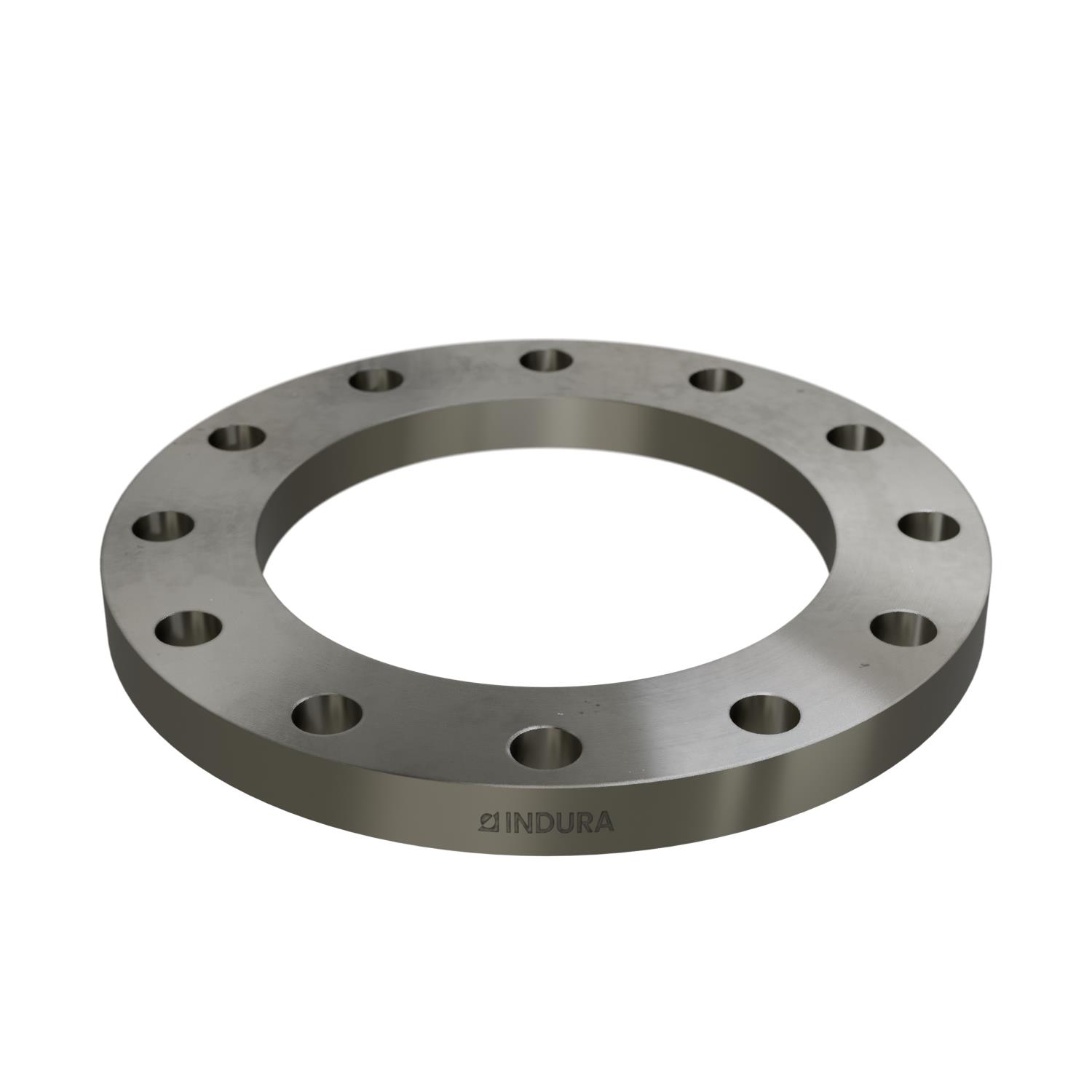

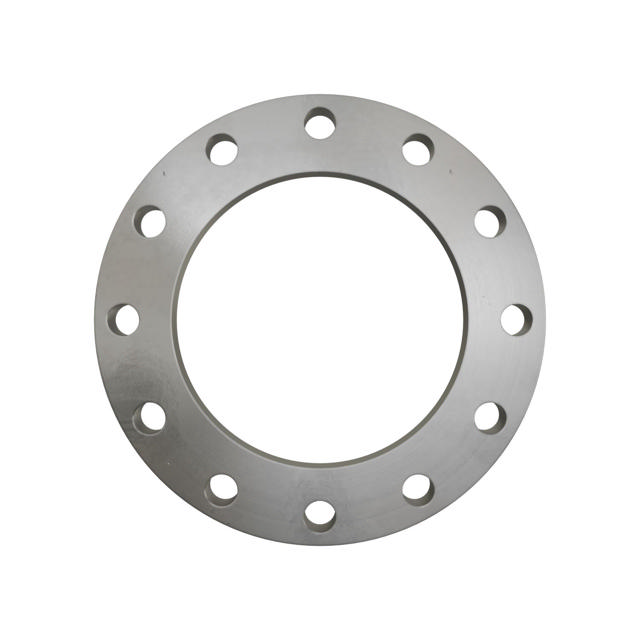

Loose plate flange, EN 1092-1, T:02, PN16, DN250, 267,0, MET, AISI316L
Item no.
031961268
In stock
Product information
Material type
Stainless
Product Type
Loose plate flange
Norm
EN 1092-1
Norm Type
T:02
Packing Surface Type
A
Material name
AISI316L
Nominal pressure
PN16
ISO or MET
MET
HS code
7307210090
EPD Co2(kg)
9.11
Material no.
1.4404
Net Weight (kg)
13.5
Nominal Pipe Size (DN)
250
Pipe Dimension Flange (d1)
267,0
Inside Diameter (B2)
273
Outside Diameter (D)
405
Thickness 1 (C1)
29
Bolt Cirkel Diameter (K)
355
Number of Bolt Holes (n)
12
Bolt Hole Diameter (L)
26
Chamfer (E)
8
Pcs. per pallet
-
Pcs. per box
-
Pcs. per bag
-

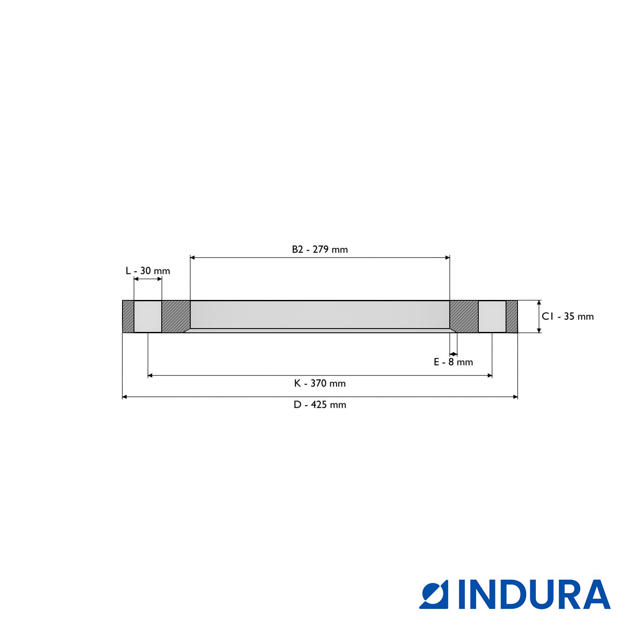

Drawing
Do you have any questions?
We are ready to assist with any questions about products, services, or anything else. Contact us for professional advice and support.
Relaterede varer
Alternative varer
Item number
Description
Norm
Material
Product Type

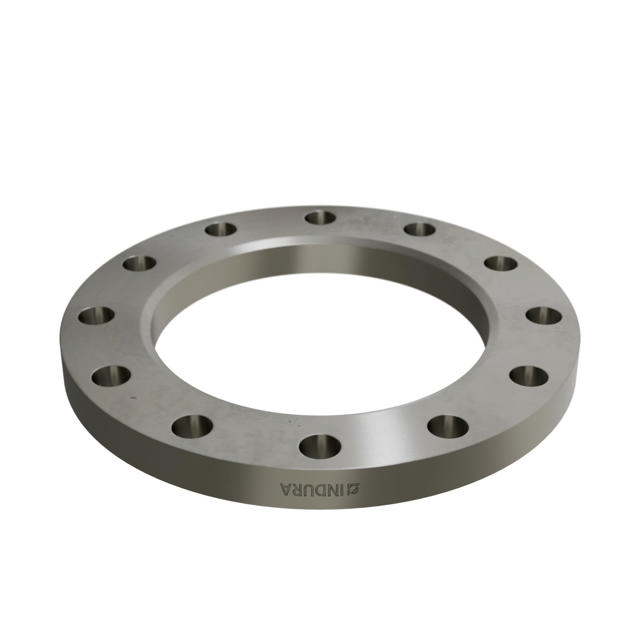

DN250 267,0 Loose plate flange (B2-273)
