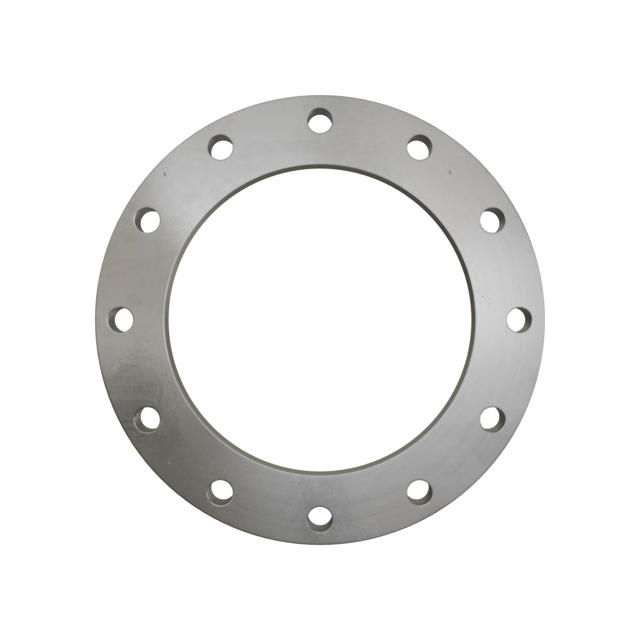

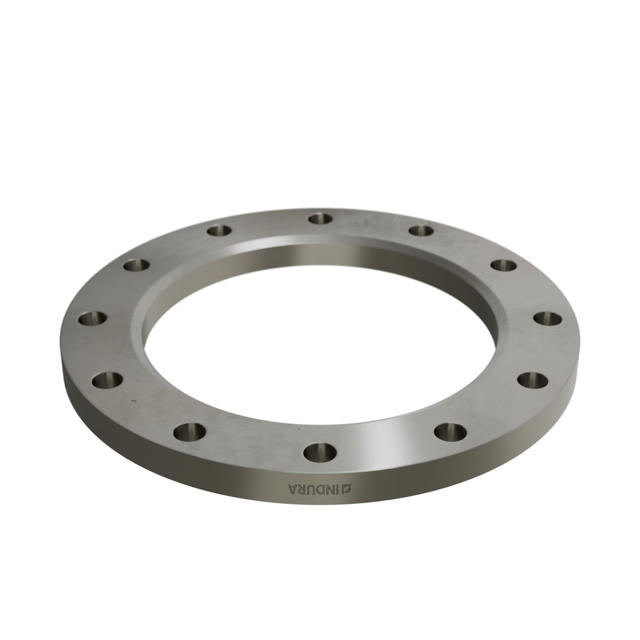

Loose plate flange, EN 1092-1, T:02, PN10, DN250, 254,0, MET, AISI316L
Item no.
031961254
Non-stock product
This is a non-stock product
When ordering, a quotation will be created instead of an order.
Product information
Material type
Stainless
Product Type
Loose plate flange
Norm
EN 1092-1
Norm Type
T:02
Packing Surface Type
A
Material name
AISI316L
Nominal pressure
PN10
ISO or MET
MET
HS code
7307210090
EPD Co2(kg)
9.11
Material no.
1.4404
Important details
Special I.D.
Net Weight (kg)
12.94
Nominal Pipe Size (DN)
250
Pipe Dimension Flange (d1)
254,0
Inside Diameter (B2)
262
Outside Diameter (D)
395
Thickness 1 (C1)
26
Bolt Cirkel Diameter (K)
350
Number of Bolt Holes (n)
12
Bolt Hole Diameter (L)
22
Chamfer (E)
8
Pcs. per pallet
-
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
550
Width pallet(mm)
800
Length pallet(mm)
1200
Number of layers
10
Pcs. per layer
4

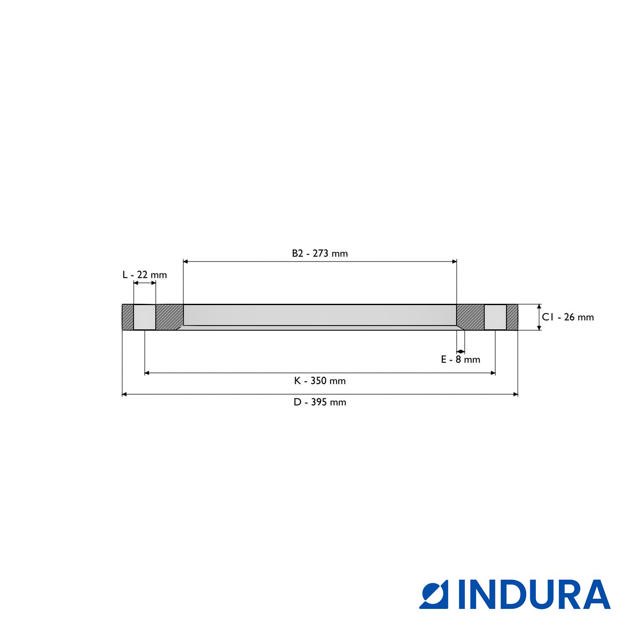

Drawing
