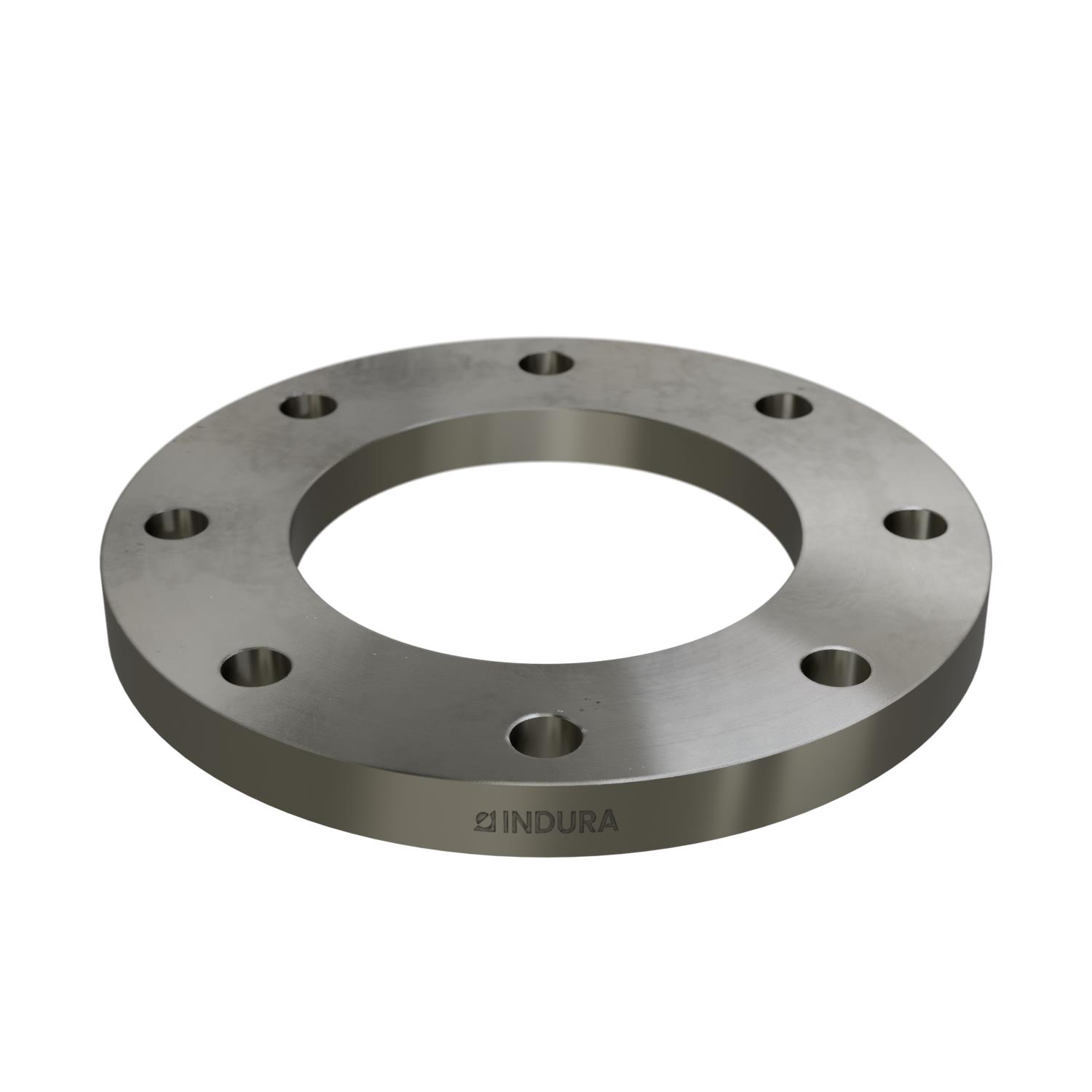

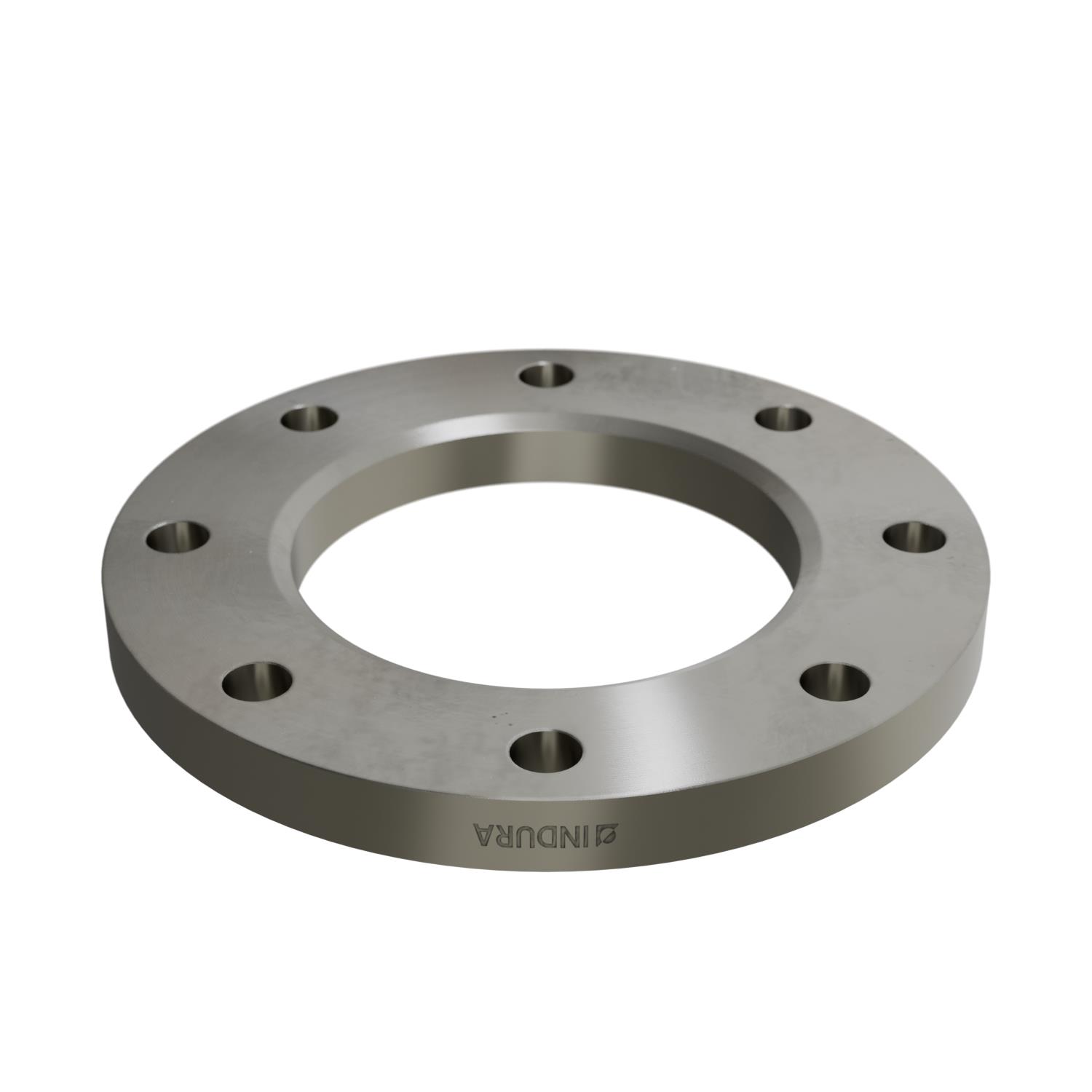

Loose plate flange, EN 1092-1, T:02, PN25-40, DN125, 133,0, MET, AISI316L

Item no.

031961134

In stock


Product information

Material type

Stainless

Product Type

Loose plate flange

Norm

EN 1092-1

Norm Type

T:02

Packing Surface Type

A

Material name

AISI316L

Nominal pressure

PN25-40

ISO or MET

MET

HS code

7307210090

EPD Co2(kg)

9.11

Material no.

1.4404

Net Weight (kg)

7.95

Nominal Pipe Size (DN)

125

Pipe Dimension Flange (d1)

133,0

Inside Diameter (B2)

140

Outside Diameter (D)

270

Thickness 1 (C1)

28

Bolt Cirkel Diameter (K)

220

Number of Bolt Holes (n)

8

Bolt Hole Diameter (L)

26

Chamfer (E)

6

Pcs. per pallet

-

Pcs. per box

-

Pcs. per bag

-
