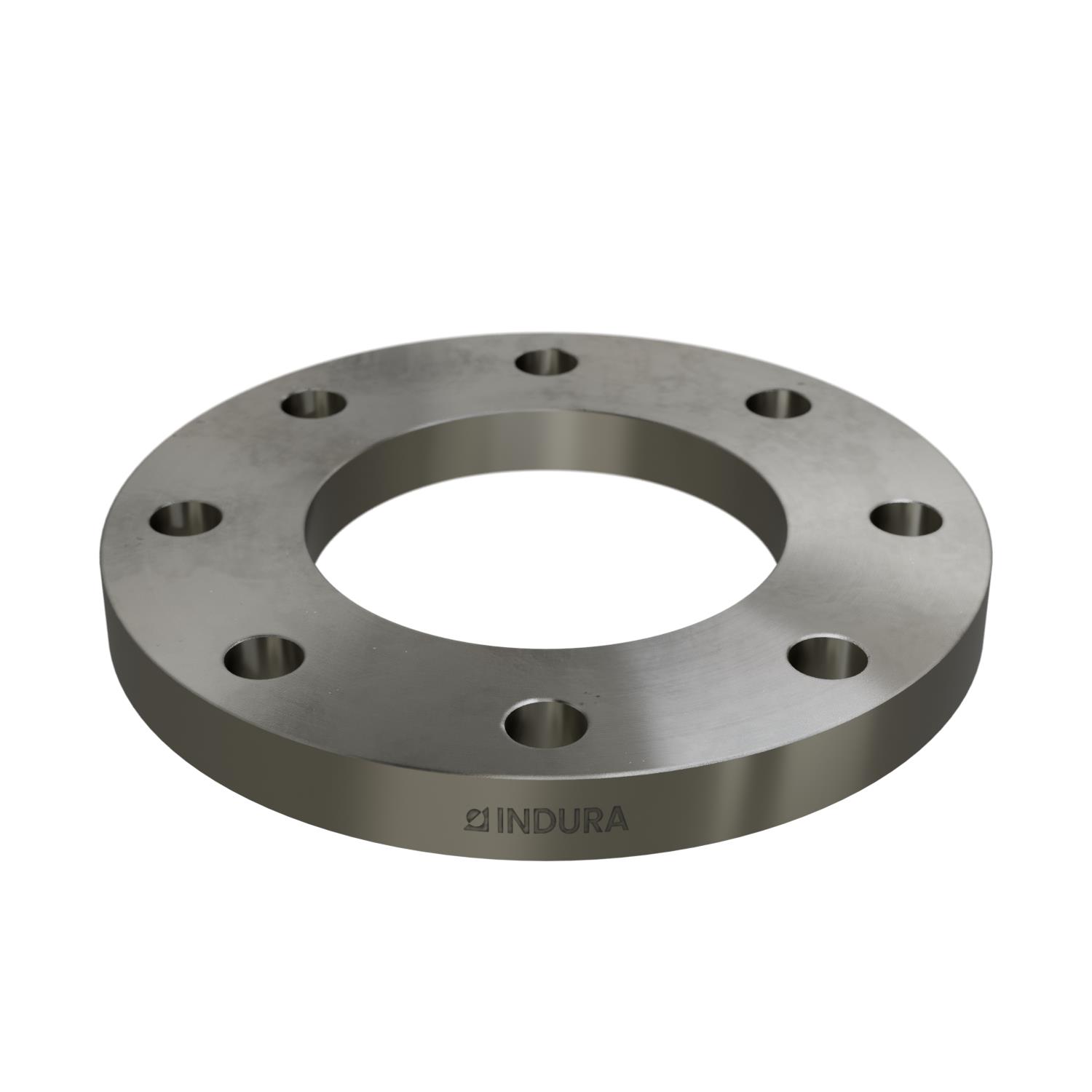

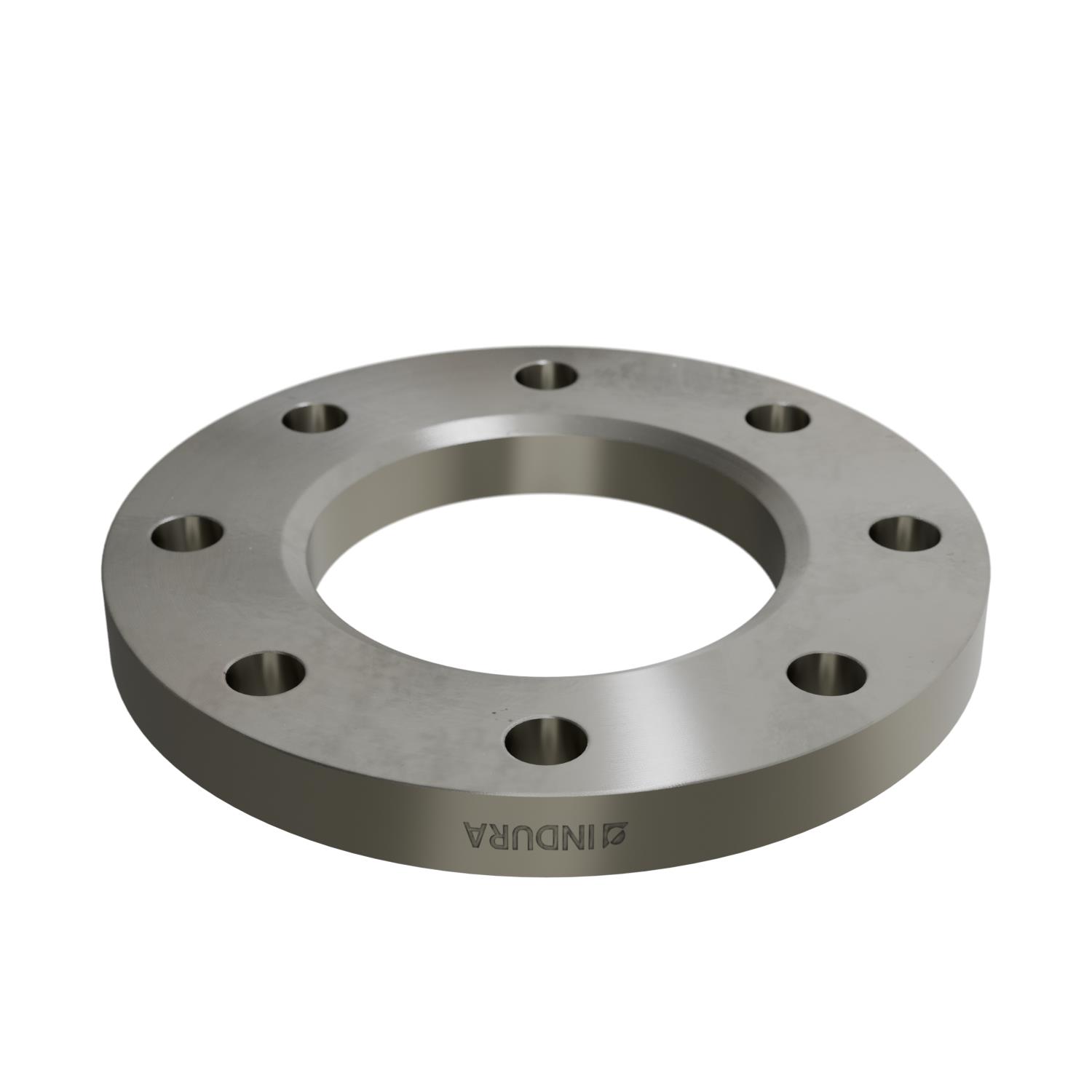

Loose plate flange, EN 1092-1, T:02, PN10-16, DN100, 114,3, ISO, AISI304L
Item no.
031941114
Not in stock
Product information
Material type
Stainless
Product Type
Loose plate flange
Norm
EN 1092-1
Norm Type
T:02
Packing Surface Type
A
Material name
AISI304L
Nominal pressure
PN10-16
ISO or MET
ISO
HS code
7307210090
EPD Co2(kg)
9.11
Material no.
1.4307
Net Weight (kg)
4.2
Nominal Pipe Size (DN)
100
Pipe Dimension Flange (d1)
114,3
Inside Diameter (B2)
120
Outside Diameter (D)
220
Thickness 1 (C1)
22
Bolt Cirkel Diameter (K)
180
Number of Bolt Holes (n)
8
Bolt Hole Diameter (L)
18
Chamfer (E)
6
Pcs. per pallet
-
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
550
Width pallet(mm)
800
Length pallet(mm)
1200
Number of layers
11
Pcs. per layer
15
Drawing
