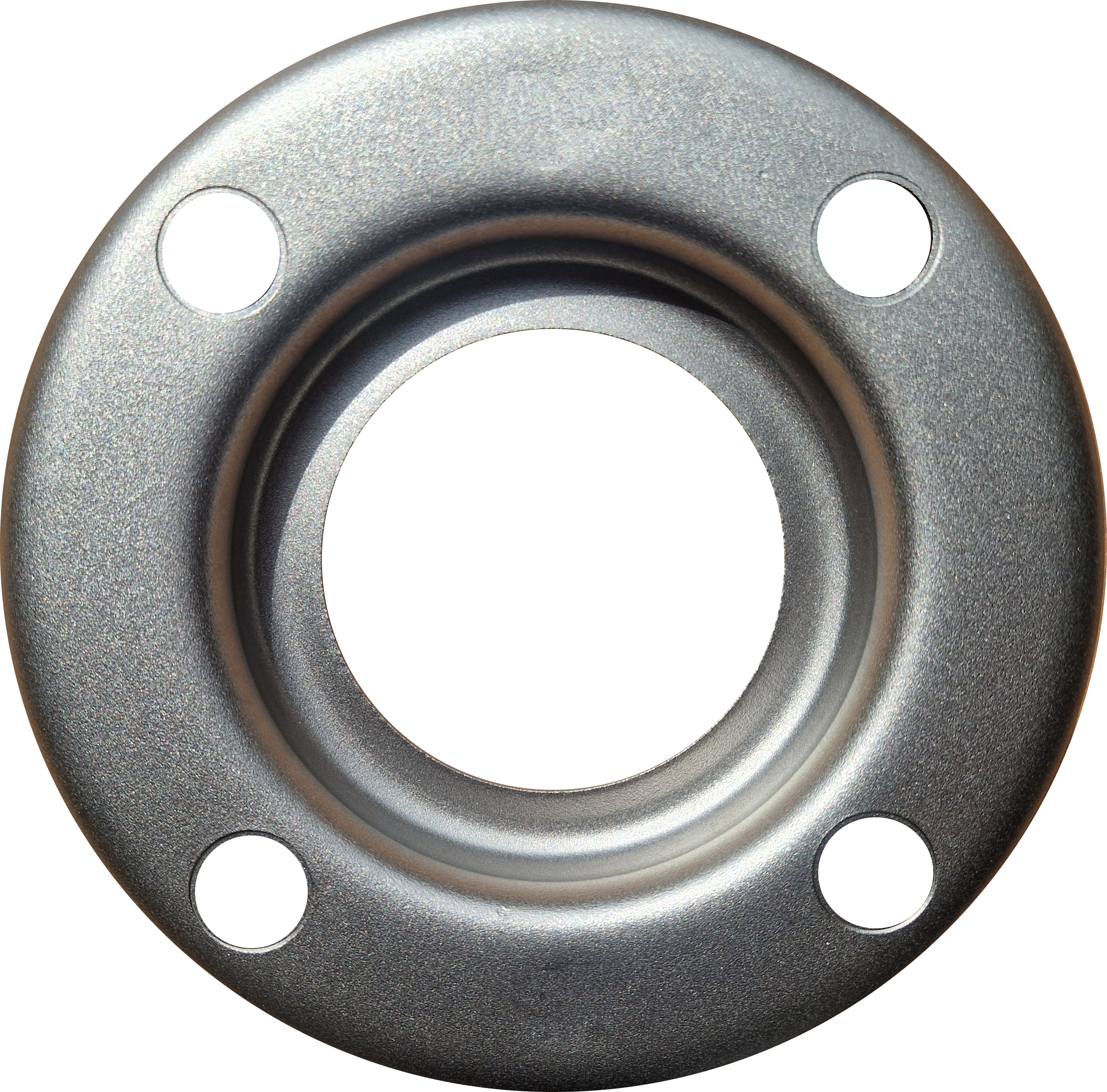

Loose flange pressed, T:02, PN10-16, DN65, 76,1, ISO, AISI304L
Item no.
032151076
In stock
Product information
Product details
4 holes
Material type
Stainless
Product Type
Loose flange pressed
Norm details
Connection acc. to EN 1092-1
Norm Type
T:02
Material name
AISI304L
Nominal pressure
PN10-16
ISO or MET
ISO
HS code
7307210090
EPD Co2(kg)
9.11
Material no.
1.4307
Important details
Not pressure rated
Net Weight (kg)
0.83
Nominal Pipe Size (DN)
65
Pipe Dimension Flange (d1)
76,1
Inside Diameter (B2)
81
Outside Diameter (D)
185
Thickness 1 (C1)
3
Bolt Cirkel Diameter (K)
145
Number of Bolt Holes (n)
4
Bolt Hole Diameter (L)
18
Height 2 (H2)
21.5
Pcs. per pallet
-
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
750
Width pallet(mm)
800
Length pallet(mm)
1200
Number of layers
20
Pcs. per layer
25

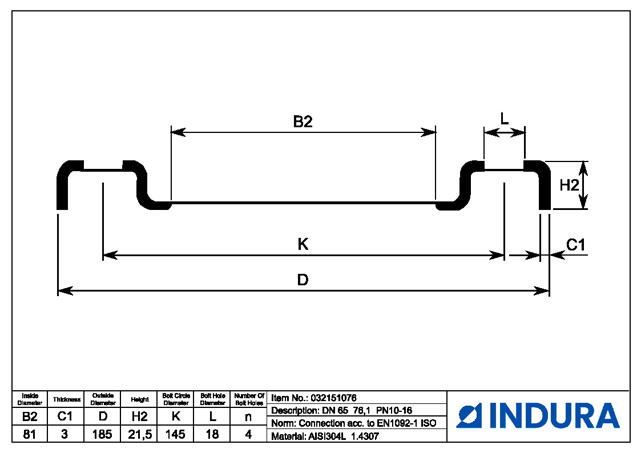

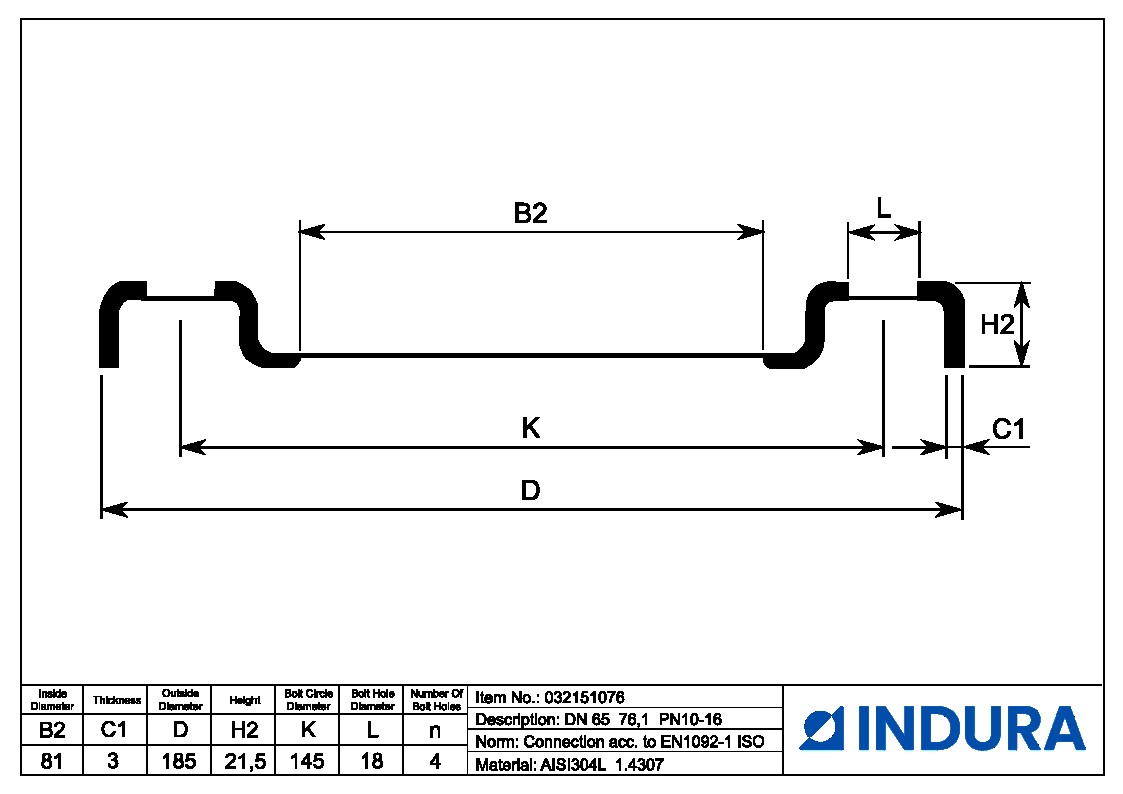

Drawing
