Loose flange pressed, T:02, PN10, DN250, 254,0, MET, AISI304L
Item no.
032151254
In stock
Product information
Material type
Stainless
Product Type
Loose flange pressed
Norm details
Connection acc. to EN 1092-1
Norm Type
T:02
Material name
AISI304L
Nominal pressure
PN10
ISO or MET
MET
HS code
7307210090
EPD Co2(kg)
9.11
Material no.
1.4307
Important details
Not pressure rated
Net Weight (kg)
4.25
Nominal Pipe Size (DN)
250
Pipe Dimension Flange (d1)
254,0
Inside Diameter (B2)
262
Outside Diameter (D)
395
Thickness 1 (C1)
5
Bolt Cirkel Diameter (K)
350
Number of Bolt Holes (n)
12
Bolt Hole Diameter (L)
21.5
Height 2 (H2)
31
Pcs. per pallet
-
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
750
Width pallet(mm)
800
Length pallet(mm)
1200
Number of layers
16
Pcs. per layer
4

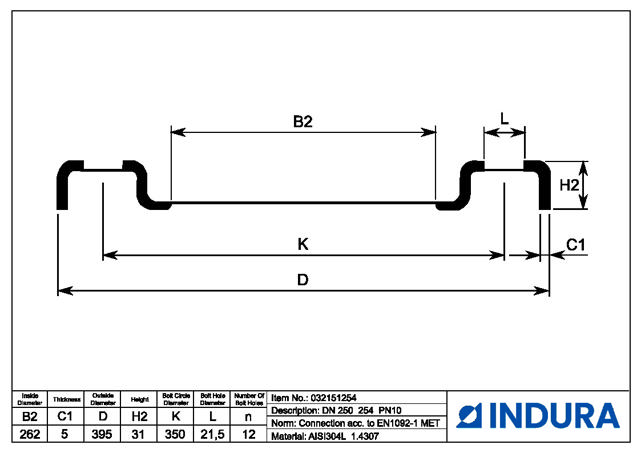

Drawing
