Loose flange pressed, T:02, PN10-16, DN150, 168,3, ISO, AISI304L
Item no.
032151168
In stock
Product information
Material type
Stainless
Product Type
Loose flange pressed
Norm details
Connection acc. to EN 1092-1
Norm Type
T:02
Material name
AISI304L
Nominal pressure
PN10-16
ISO or MET
ISO
HS code
7307210090
EPD Co2(kg)
9.11
Material no.
1.4307
Important details
Not pressure rated
Net Weight (kg)
1.93
Nominal Pipe Size (DN)
150
Pipe Dimension Flange (d1)
168,3
Inside Diameter (B2)
173
Outside Diameter (D)
285
Thickness 1 (C1)
4
Bolt Cirkel Diameter (K)
240
Number of Bolt Holes (n)
8
Bolt Hole Diameter (L)
22
Height 2 (H2)
26
Pcs. per pallet
-
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
750
Width pallet(mm)
800
Length pallet(mm)
1200
Number of layers
19
Pcs. per layer
9

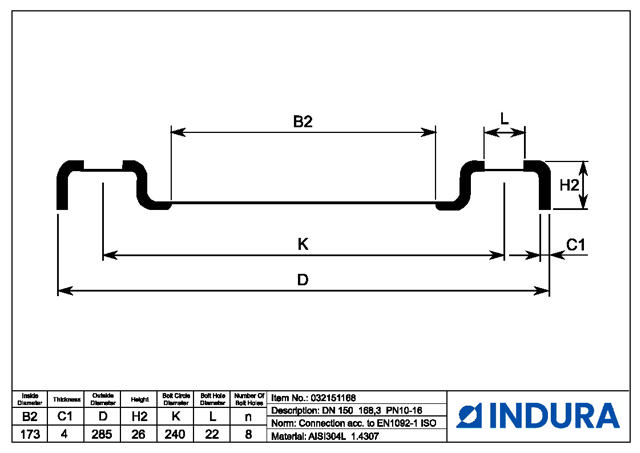

Drawing
