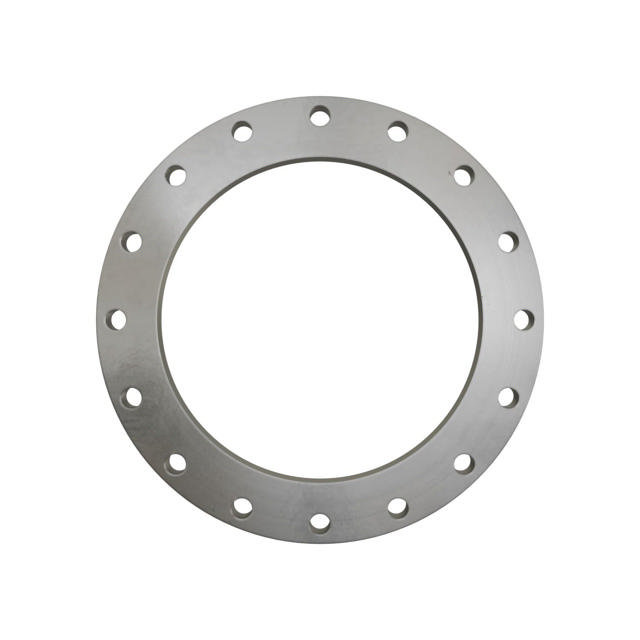

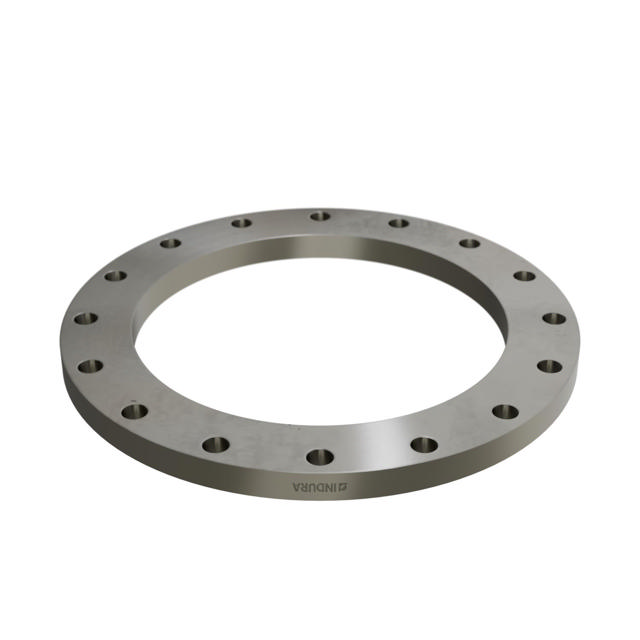

Plate flange, EN 1092-1, T:01, PN10, DN400, 406,4, ISO, AISI321
Item no.
030947406
Not in stock
Product information
Material type
Stainless
Product Type
Plate flange
Norm
EN 1092-1
Norm Type
T:01
Packing Surface Type
A
Material name
AISI321
Nominal pressure
PN10
ISO or MET
ISO
HS code
7307210090
EPD Co2(kg)
9.11
Material no.
1.4541
Net Weight (kg)
27.5
Nominal Pipe Size (DN)
400
Pipe Dimension Flange (d1)
406,4
Inside Diameter (B1)
411
Outside Diameter (D)
565
Thickness 1 (C1)
32
Bolt Cirkel Diameter (K)
515
Number of Bolt Holes (n)
16
Bolt Hole Diameter (L)
26
Pcs. per pallet
22
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
550
Width pallet(mm)
800
Length pallet(mm)
1200
Number of layers
11
Pcs. per layer
2

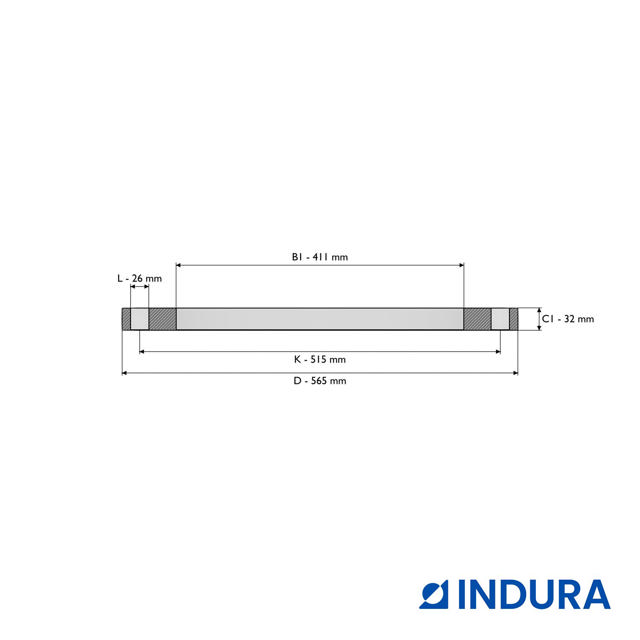

Drawing
Do you have any questions?
We are ready to assist with any questions about products, services, or anything else. Contact us for professional advice and support.
Alternative varer
Item number
Description
Norm
Material
Product Type
DN400 406,4 Plate flange (B1-411)
EN 1092-1 T:01 A PN10 ISO
AISI316L 1.4404
Plate flange
In stock
DN400 406,4 Plate flange (B1-411)
EN 1092-1 T:01 A PN10 ISO
AISI316TI 1.4571
Plate flange
In stock
DN400 406,4 Plate flange (B1-411)
EN 1092-1 T:01 A PN10 ISO
AISI304L 1.4307
Plate flange
In stock
