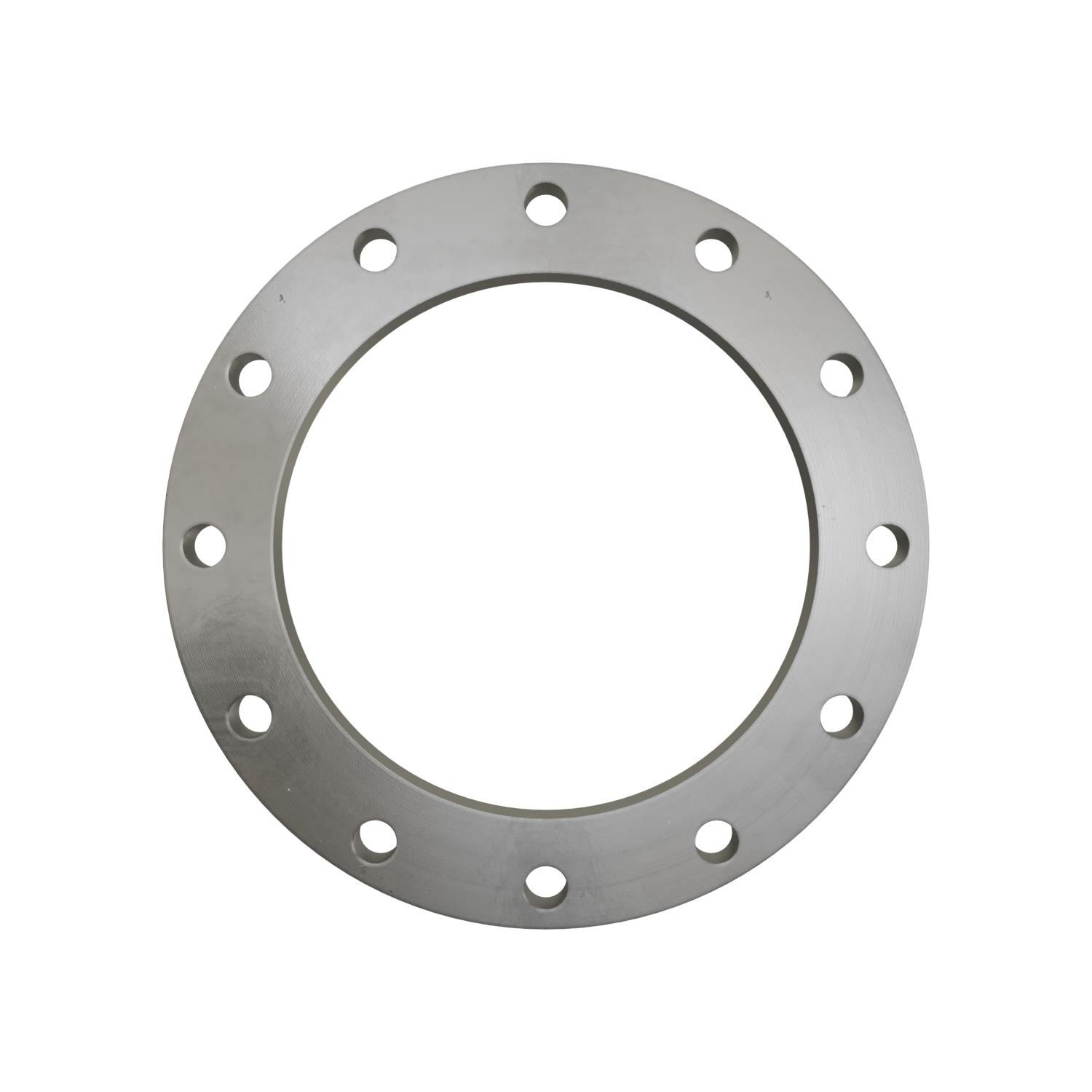

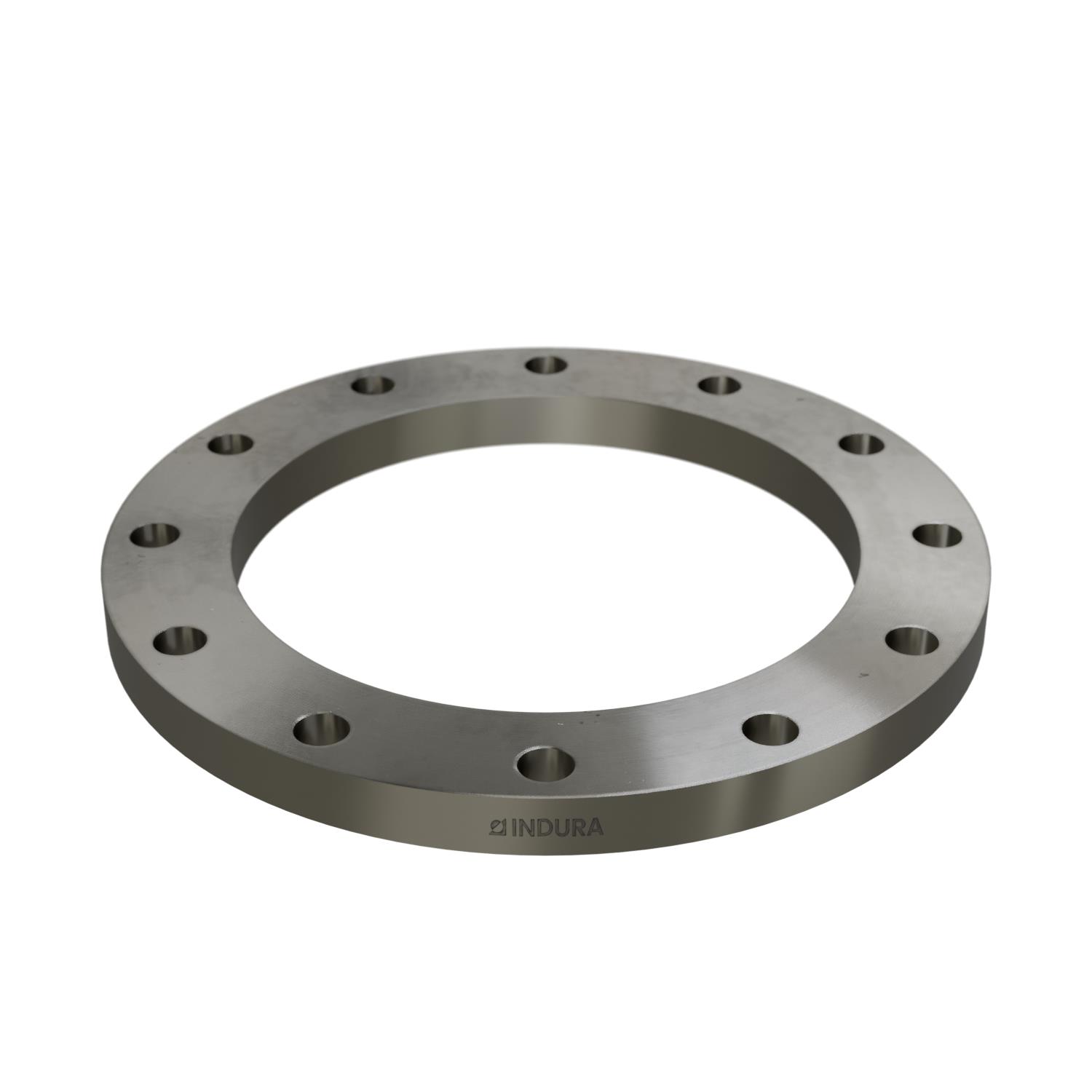

Plate flange, EN 1092-1, T:01, PN16, DN300, 323,9, ISO, AISI316TI
Item no.
030967325
Not in stock
Product information
Material type
Stainless
Product Type
Plate flange
Norm
EN 1092-1
Norm Type
T:01
Packing Surface Type
A
Material name
AISI316TI
Nominal pressure
PN16
ISO or MET
ISO
HS code
7307210090
EPD Co2(kg)
9.11
Material no.
1.4571
Net Weight (kg)
19
Nominal Pipe Size (DN)
300
Pipe Dimension Flange (d1)
323,9
Inside Diameter (B1)
327.5
Outside Diameter (D)
460
Thickness 1 (C1)
32
Bolt Cirkel Diameter (K)
410
Number of Bolt Holes (n)
12
Bolt Hole Diameter (L)
26
Pcs. per pallet
-
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
750
Width pallet(mm)
800
Length pallet(mm)
1200
Number of layers
16
Pcs. per layer
3
Drawing
Do you have any questions?
We are ready to assist with any questions about products, services, or anything else. Contact us for professional advice and support.
Alternative varer
Item number
Description
Norm
Material
Product Type
DN300 323,9 Plate flange (B1-327.5)
EN 1092-1 T:01 B1 PN16 ISO
AISI316L 1.4404
Plate flange
In stock
DN300 323,9 Plate flange (B1-327.5)
EN 1092-1 T:01 A PN16 ISO
AISI316L 1.4404
Plate flange
In stock
DN300 323,9 Plate flange (B1-327.5)
EN 1092-1 T:01 A PN16 ISO
AISI304L 1.4307
Plate flange
In stock
