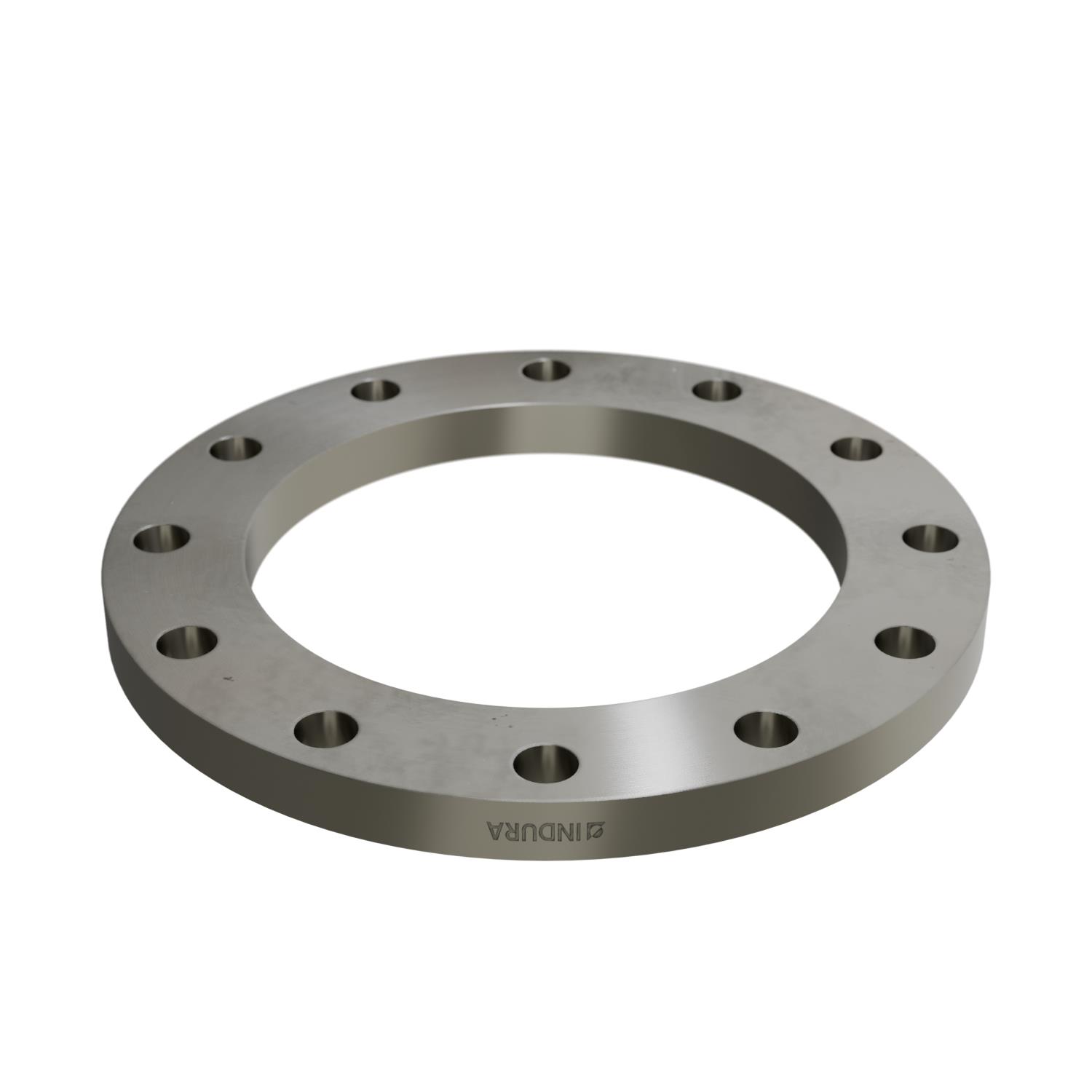

Plate flange, EN 1092-1, T:01, PN16, DN250, 273,0, ISO, AISI316TI
Item no.
030967274
Not in stock
Product information
Material type
Stainless
Product Type
Plate flange
Norm
EN 1092-1
Norm Type
T:01
Packing Surface Type
A
Material name
AISI316TI
Nominal pressure
PN16
ISO or MET
ISO
HS code
7307210090
EPD Co2(kg)
9.11
Material no.
1.4571
Net Weight (kg)
14.2
Nominal Pipe Size (DN)
250
Pipe Dimension Flange (d1)
273,0
Inside Diameter (B1)
276.5
Outside Diameter (D)
405
Thickness 1 (C1)
29
Bolt Cirkel Diameter (K)
355
Number of Bolt Holes (n)
12
Bolt Hole Diameter (L)
26
Pcs. per pallet
-
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
550
Width pallet(mm)
800
Length pallet(mm)
1200
Number of layers
11
Pcs. per layer
4
Drawing
