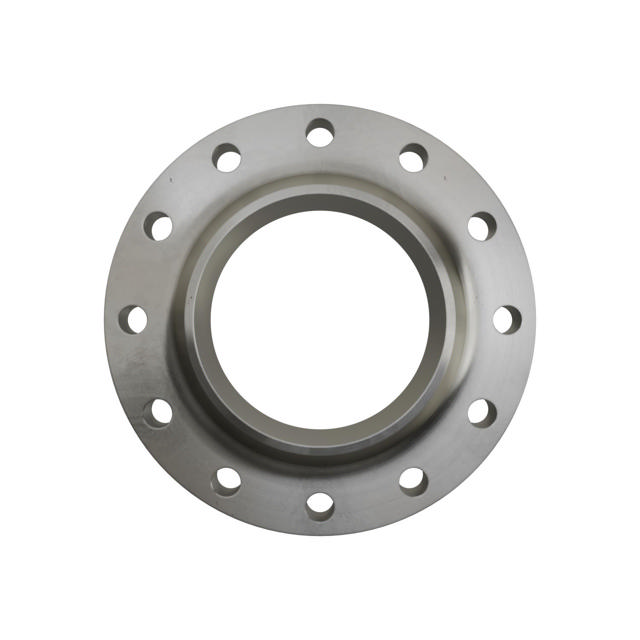

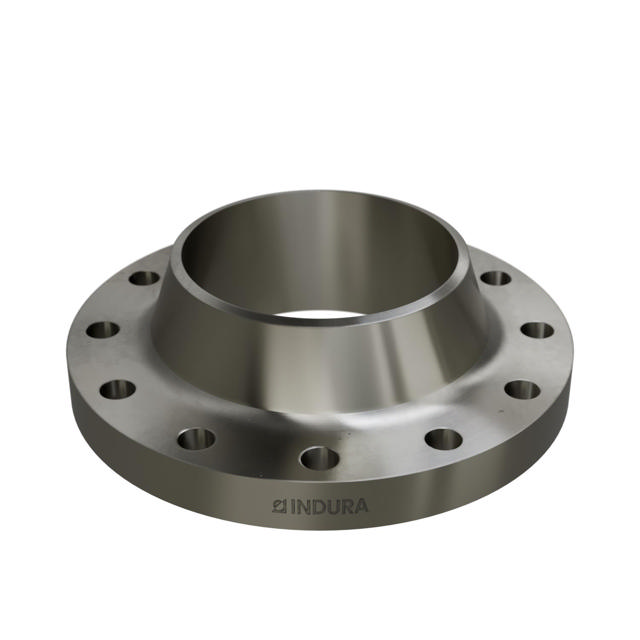

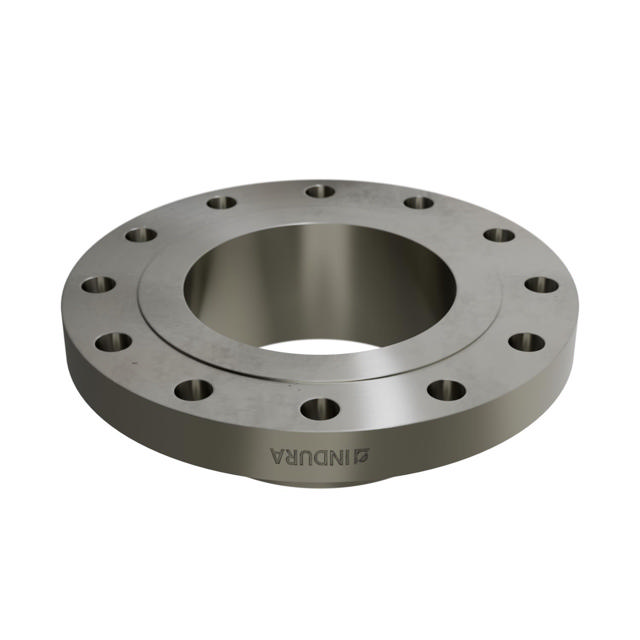

Welding neck flange, ASME B16.5, Sch. Std., 300 lbs, 8", AISI304L
Item no.
032149219
Non-stock product
This is a non-stock product
When ordering, a quotation will be created instead of an order.
Product information
Schedule
Sch. Std.
Material type
Stainless
Product Type
Welding neck flange
Norm
ASME B16.5
Packing Surface Type
RF
Material name
AISI304L
Nominal pressure
300 lbs
HS code
7307210090
EPD Co2(kg)
9.11
Material no.
1.4307
Net Weight (kg)
29.9
DN (DN)
200
Nominal Pipe Size(")
8"
Inside Diameter (B)
202.7
Outside Diameter (O)
381
Weld End Thickness (t)
8.18
Thickness (tf)
39.6
Bolt Cirkel Diameter (W)
330.2
Number of Bolt Holes (Z)
12
Bolt Hole Diameter (I)
25.4
Height (Y)
110
Weld End Outside Diameter (A)
219.2
Low Outside Neck Diameter (X)
260
Packing Surface Height (rf)
1.5
Packing Surface Diameter (R)
269.7
Pcs. per pallet
-
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
750
Width pallet(mm)
800
Length pallet(mm)
1200
Number of layers
4
Pcs. per layer
5

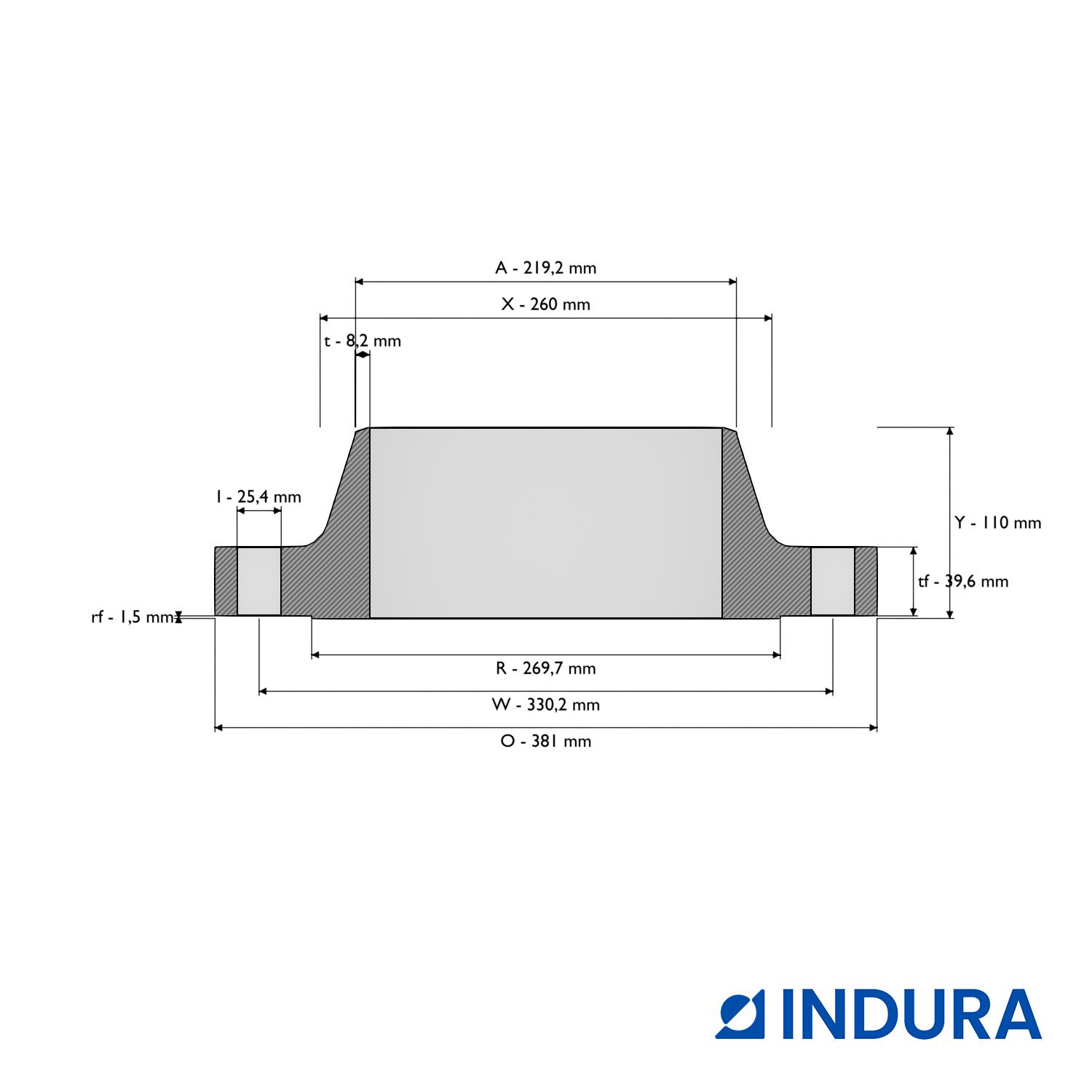

Drawing
