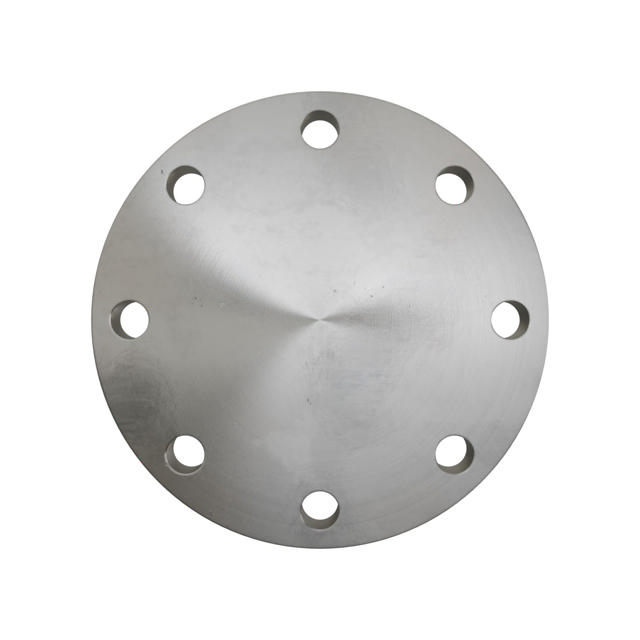

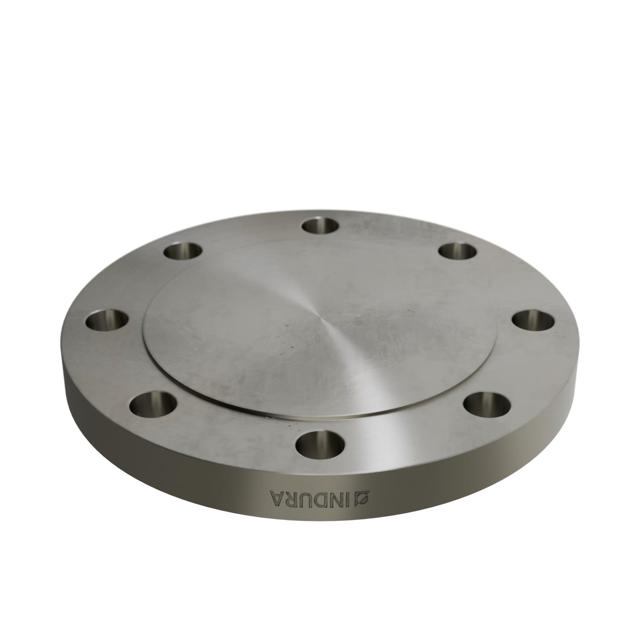

Blind flange, ASME B16.5, 150 lbs, 4", AISI316L
Item no.
032250114
In stock
Product information
Material type
Stainless
Product Type
Blind flange
Norm
ASME B16.5
Packing Surface Type
RF
Material name
AISI316L
Nominal pressure
150 lbs
HS code
7307210090
EPD Co2(kg)
9.11
Material no.
1.4404
Net Weight (kg)
7.5
DN (DN)
100
Nominal Pipe Size(")
4"
Outside Diameter (O)
229
Thickness (tf)
22.4
Bolt Cirkel Diameter (W)
190.5
Number of Bolt Holes (Z)
8
Bolt Hole Diameter (I)
19.1
Packing Surface Height (rf)
1.5
Packing Surface Diameter (R)
157.2
Pcs. per pallet
-
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
350
Width pallet(mm)
800
Length pallet(mm)
1200
Number of layers
6
Pcs. per layer
15

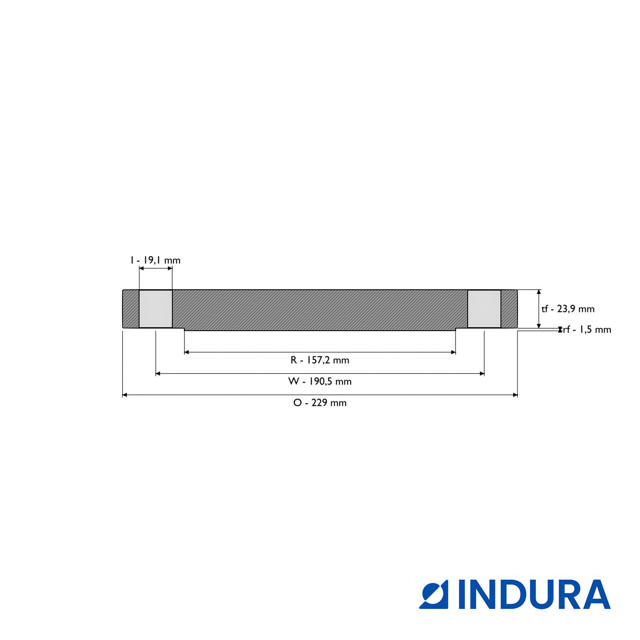

Drawing
