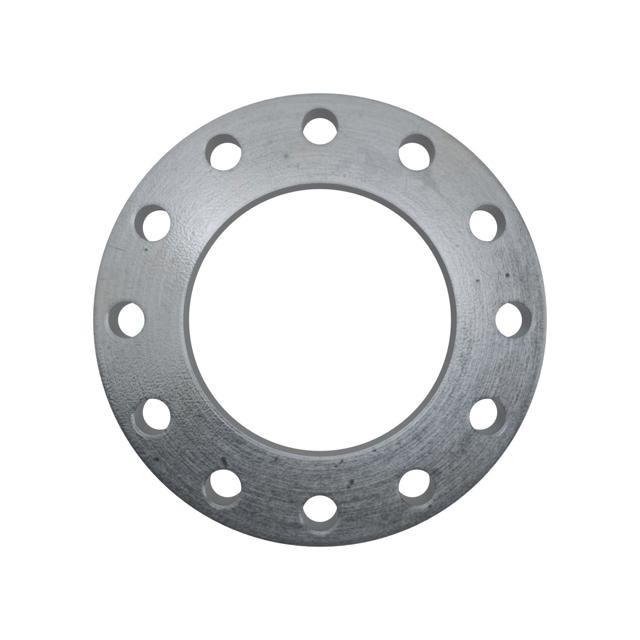

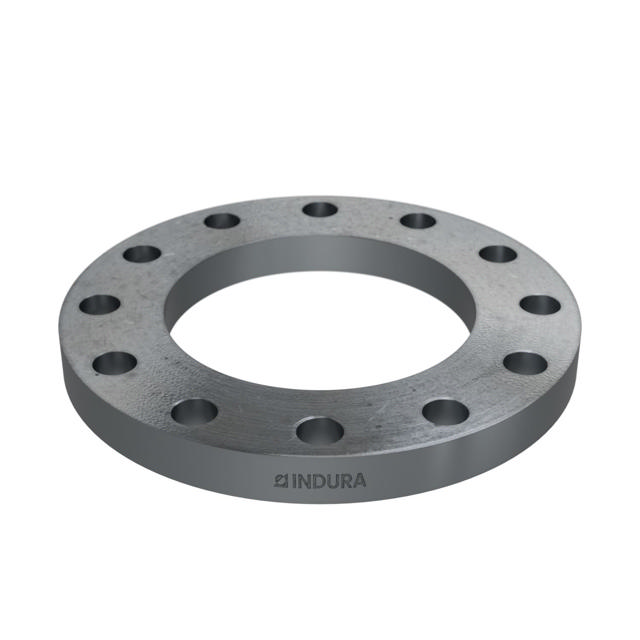

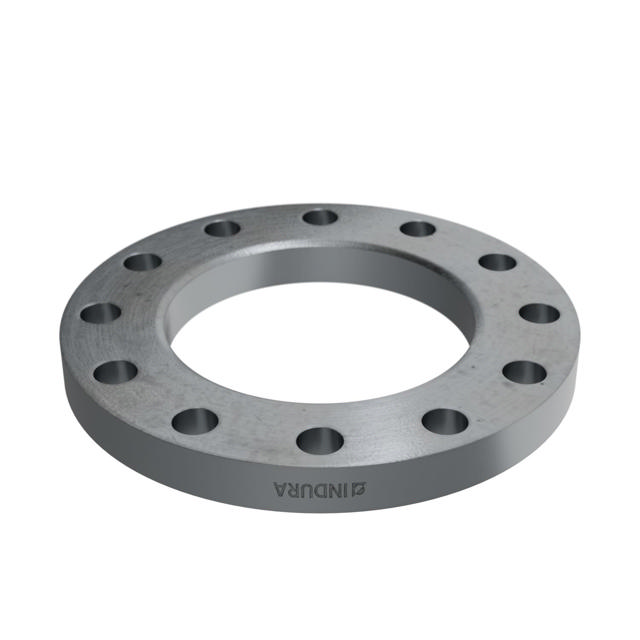

Loose plate flange, HDG, EN 1092-1, T:02, PN40, DN200, 219,1, ISO, S235JR
Item no.
000657219
In stock
Product information
Surface
HDG
Material type
Carbon
Product Type
Loose plate flange
Norm
EN 1092-1
Norm Type
T:02
Packing Surface Type
A
Material name
S235JR
Nominal pressure
PN40
ISO or MET
ISO
HS code
7307910090
EPD Co2(kg)
5.69
Material no.
1.0038
Net Weight (kg)
17.4
Nominal Pipe Size (DN)
200
Pipe Dimension Flange (d1)
219,1
Inside Diameter (B2)
226
Outside Diameter (D)
375
Thickness 1 (C1)
36
Bolt Cirkel Diameter (K)
320
Number of Bolt Holes (n)
12
Bolt Hole Diameter (L)
30
Chamfer (E)
6
Pcs. per pallet
40
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
550
Width pallet(mm)
800
Length pallet(mm)
1200
Number of layers
8
Pcs. per layer
5
Number of Frames
2

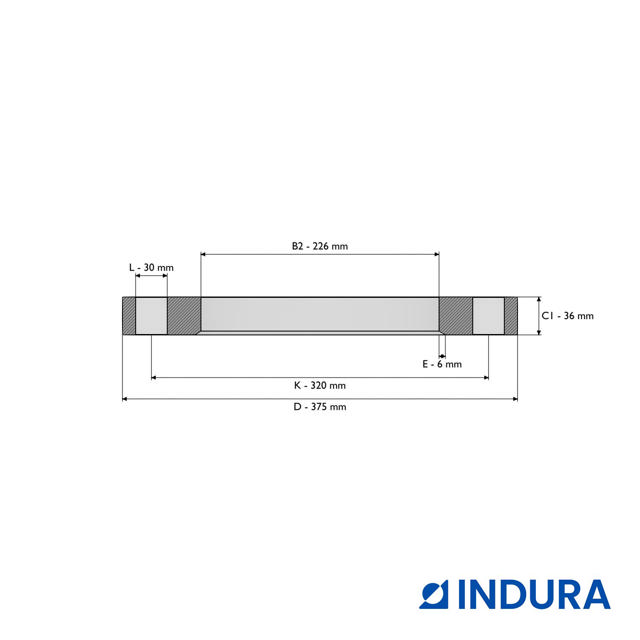

Drawing
Do you have any questions?
We are ready to assist with any questions about products, services, or anything else. Contact us for professional advice and support.
Alternative varer
Item number
Description
Norm
Material
Product Type
DN200 219,1 Loose plate flange (B2-226)
EN 1092-1 T:02 A PN40 ISO
P280GH 1.0426 HDG
Loose plate flange
In stock
