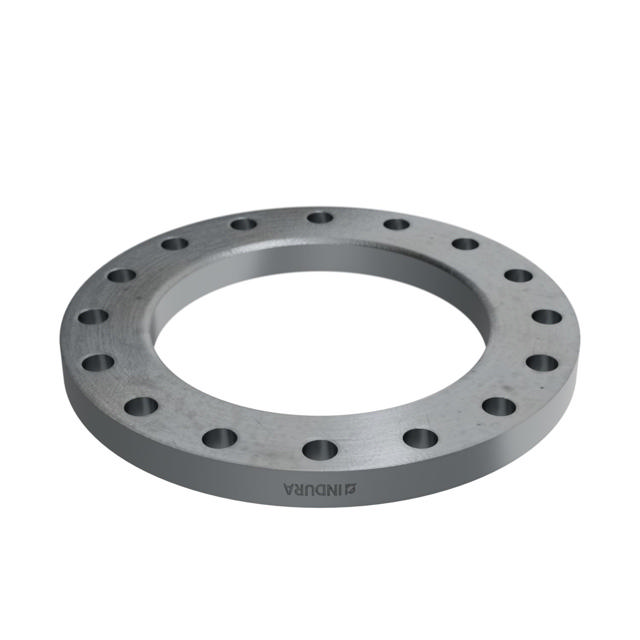

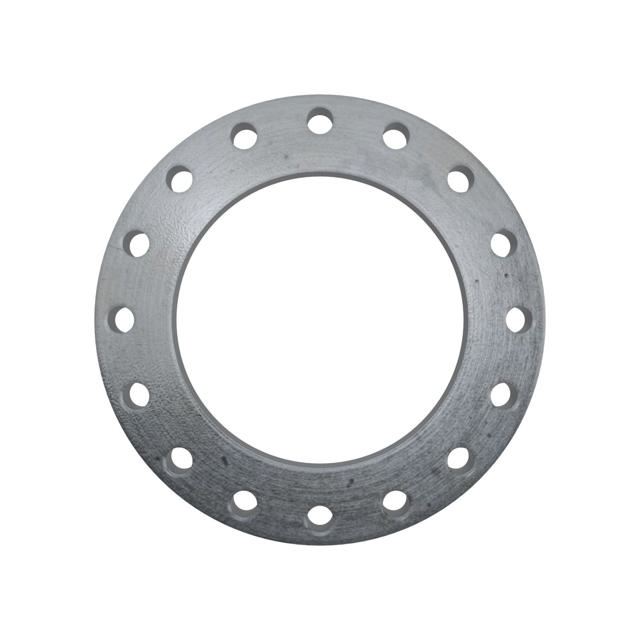

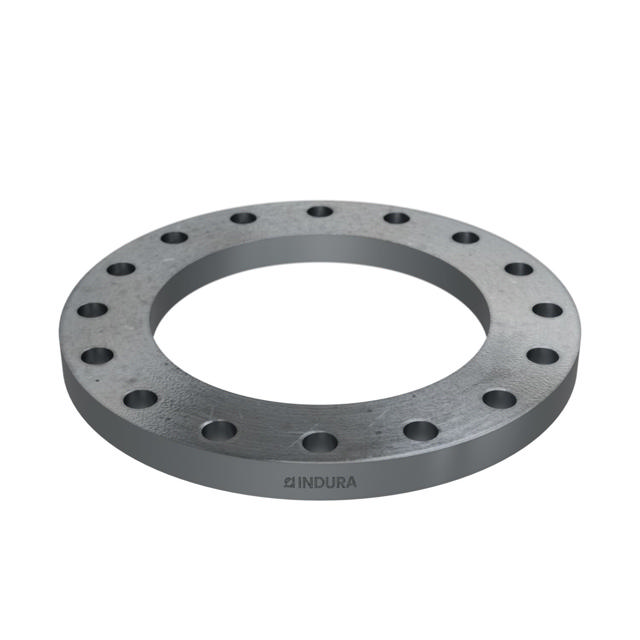

Loose plate flange, HDG, EN 1092-1, T:02, PN25, DN350, 355,6, ISO, P280GH
Item no.
000856357
In stock
Product information
Surface
HDG
Material type
Carbon
Product Type
Loose plate flange
Norm
EN 1092-1
Norm Type
T:02
Packing Surface Type
A
Material name
P280GH
Nominal pressure
PN25
ISO or MET
ISO
HS code
7307910090
EPD Co2(kg)
5.69
Material no.
1.0426
Net Weight (kg)
40.5
Nominal Pipe Size (DN)
350
Pipe Dimension Flange (d1)
355,6
Inside Diameter (B2)
365
Outside Diameter (D)
555
Thickness 1 (C1)
42
Bolt Cirkel Diameter (K)
490
Number of Bolt Holes (n)
16
Bolt Hole Diameter (L)
33
Chamfer (E)
8
Pcs. per pallet
16
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
550
Width pallet(mm)
800
Length pallet(mm)
1200
Number of layers
8
Pcs. per layer
2
Number of Frames
2

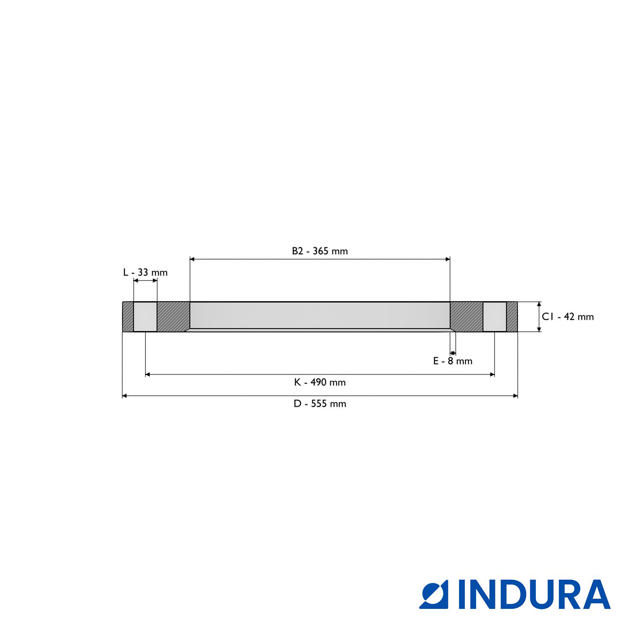

Drawing
Do you have any questions?
We are ready to assist with any questions about products, services, or anything else. Contact us for professional advice and support.
Relaterede varer
Item number
Description
Norm
Material
Product Type

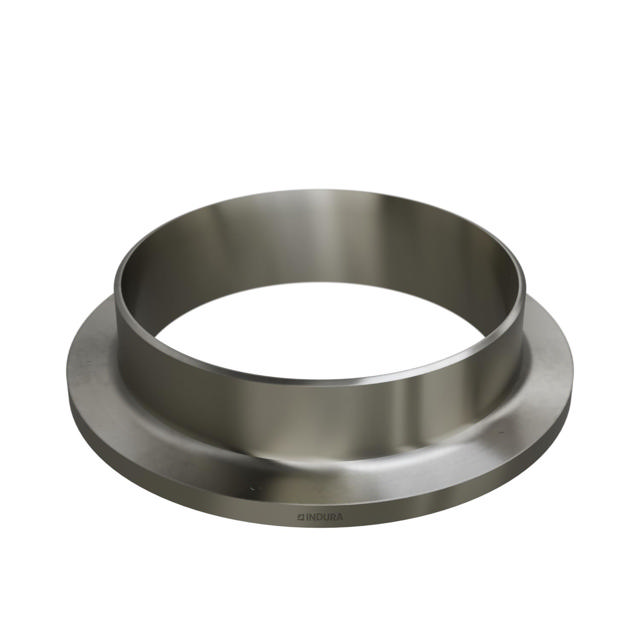

DN350 355,6 Weldring neck S-12
