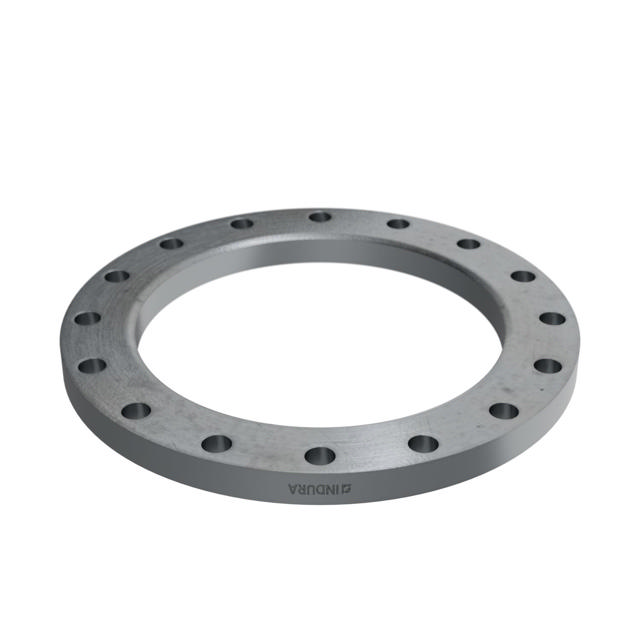

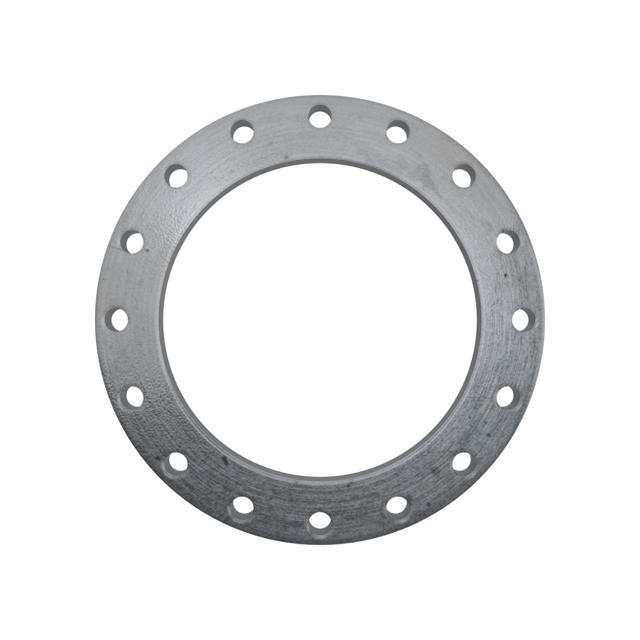

Loose plate flange, HDG, EN 1092-1, T:02, PN16, DN400, 406,4, ISO, S235JR
Item no.
000656406
Non-stock product
This is a non-stock product
When ordering, a quotation will be created instead of an order.
Product information
Surface
HDG
Material type
Carbon
Product Type
Loose plate flange
Norm
EN 1092-1
Norm Type
T:02
Packing Surface Type
A
Material name
S235JR
Nominal pressure
PN16
ISO or MET
ISO
HS code
7307910090
EPD Co2(kg)
5.69
Material no.
1.0038
Net Weight (kg)
34.6
Nominal Pipe Size (DN)
400
Pipe Dimension Flange (d1)
406,4
Inside Diameter (B2)
416
Outside Diameter (D)
580
Thickness 1 (C1)
38
Bolt Cirkel Diameter (K)
525
Number of Bolt Holes (n)
16
Bolt Hole Diameter (L)
30
Chamfer (E)
8
Pcs. per pallet
18
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
550
Width pallet(mm)
800
Length pallet(mm)
1200
Number of layers
9
Pcs. per layer
2
Number of Frames
2

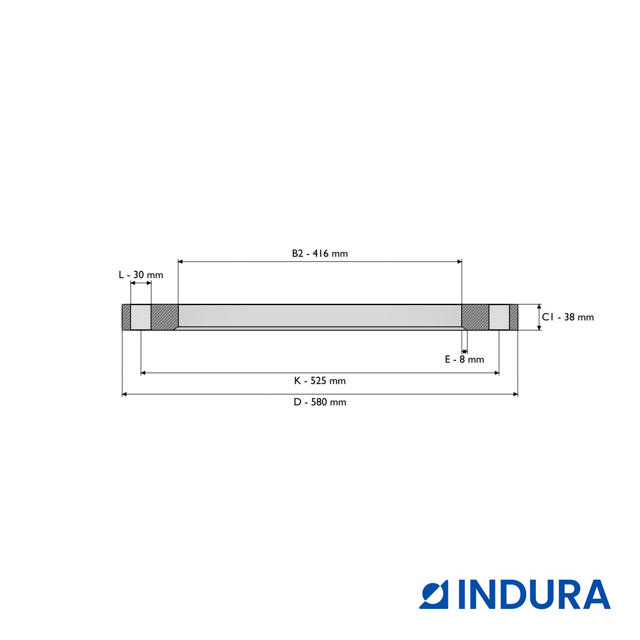

Drawing
