Loose plate flange, HDG, EN 1092-1, T:02, PN10, DN1200, 1200,0, S235JR
Item no.
000607956
Not in stock
Product information
Surface
HDG
Material type
Carbon
Product Type
Loose plate flange
Norm
EN 1092-1
Norm Type
T:02
Packing Surface Type
A
Material name
S235JR
Nominal pressure
PN10
HS code
7307910090
Norm 2
ISO 9624
EPD Co2(kg)
5.69
Material no.
1.0038
Important details
Special I.D. and Thickness
Net Weight (kg)
102.7
Nominal Pipe Size (DN)
1200
Pipe Dimension Flange (d1)
1200,0
Inside Diameter (B2)
1260
Outside Diameter (D)
1455
Thickness 1 (C1)
35
Bolt Cirkel Diameter (K)
1380
Number of Bolt Holes (n)
32
Bolt Hole Diameter (L)
39
Chamfer (E)
8
Pcs. per pallet
7
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
550
Width pallet(mm)
800
Length pallet(mm)
1200
Number of layers
7
Pcs. per layer
1

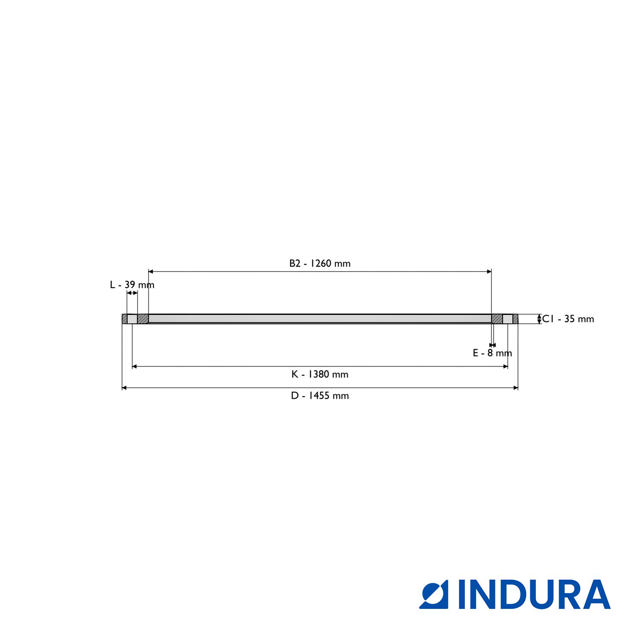

Drawing
