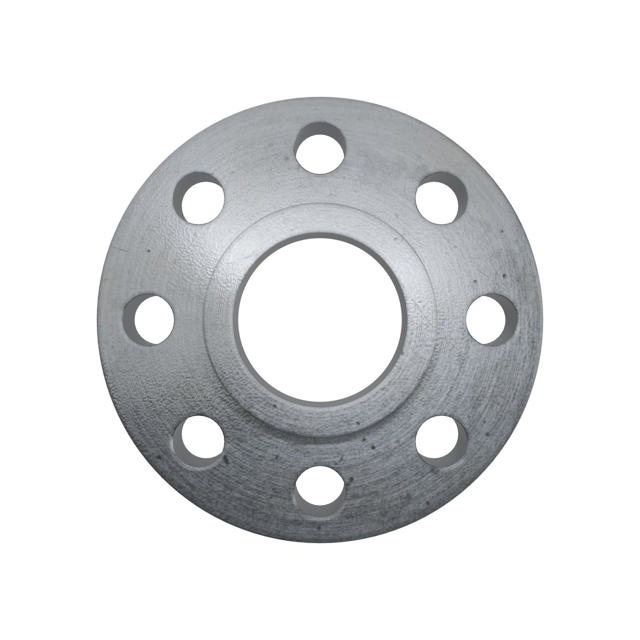

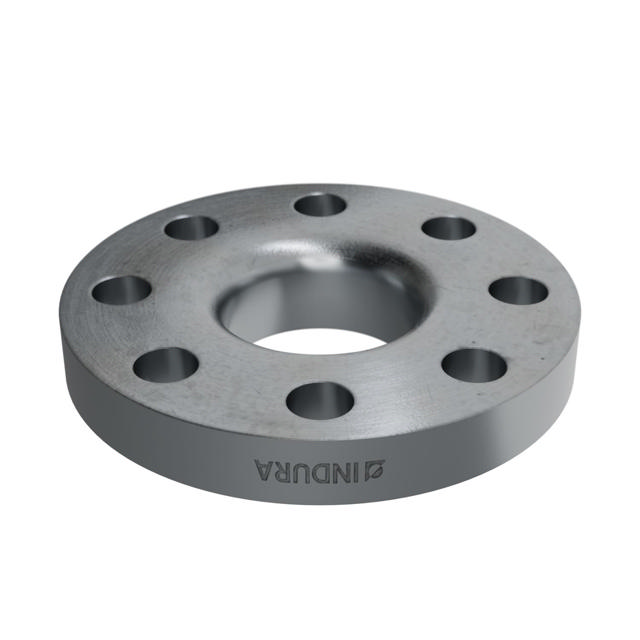

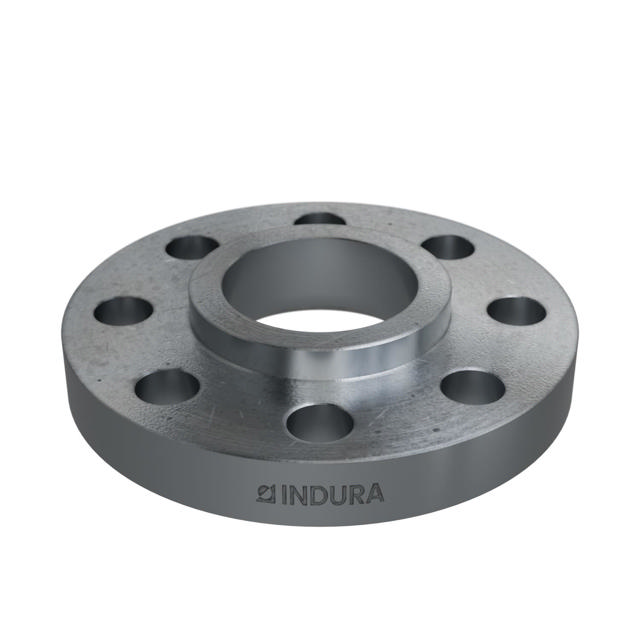

Lap Joint flange, HDG, ASME B16.5, 300 lbs, 2", LF2 C1-SA/A105N-P280GH
Item no.
002411060
In stock
Product information
Surface
HDG
Material type
Carbon
Product Type
Lap Joint flange
Norm
ASME B16.5
Packing Surface Type
FF
Material name
LF2 C1-SA/A105N-P280GH
Nominal pressure
300 lbs
HS code
7307910090
EPD Co2(kg)
5.69
Important details
Impact test
Net Weight (kg)
3.01
DN (DN)
50
Nominal Pipe Size(")
2"
Inside Diameter (B)
62.5
Outside Diameter (O)
165
Thickness (tf)
22.4
Bolt Cirkel Diameter (W)
127
Number of Bolt Holes (Z)
8
Bolt Hole Diameter (I)
19.1
Height (Y)
33
Low Outside Neck Diameter (X)
84
Pcs. per pallet
150
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
350
Width pallet(mm)
800
Length pallet(mm)
1200
Number of layers
5
Pcs. per layer
30
Number of Frames
1

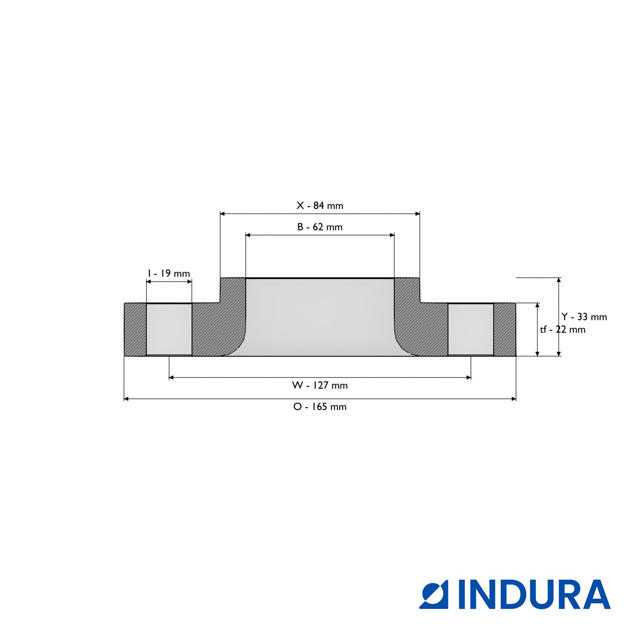

Drawing
