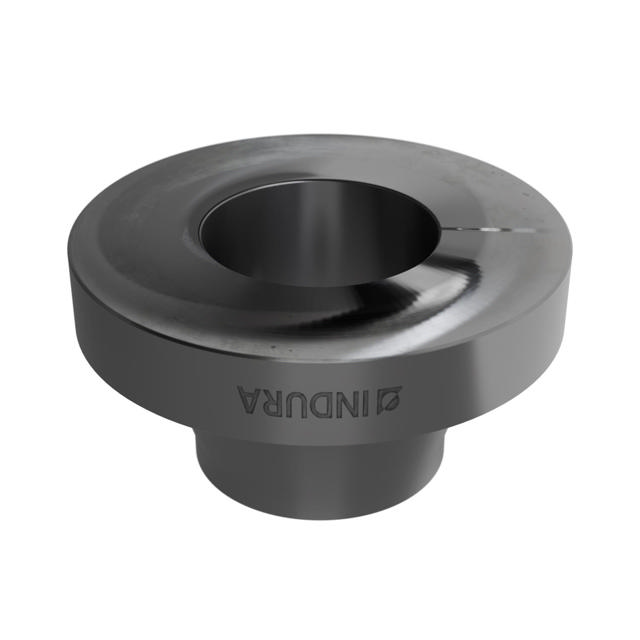

Weld-neck collar, EN 1092-1, T:34, PN10-40, DN32, 42,4, ISO, P250GH
Item no.
000608042
In stock
Product information
Material type
Carbon
Product Type
Weld-neck collar
Norm
EN 1092-1
Norm Type
T:34
Material name
P250GH
Nominal pressure
PN10-40
ISO or MET
ISO
HS code
7307910090
EPD Co2(kg)
5.69
Material no.
1.0460
Net Weight (kg)
0.56
Nominal Pipe Size (DN)
32
Pipe Dimension Flange (d1)
42,4
Outside Diameter 1 (d1)
78
Weld End Thickness (S)
2.6
Thickness F (F)
14
Number of Bolt Holes (n)
0
Corner radius (R1)
6
Height 2 (H2)
42
Height 3 (H3)
6
Weld End Outside Diameter (A)
42.4
Low Outside Neck Diameter (N1)
56
Pcs. per pallet
792
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
350
Width pallet(mm)
800
Length pallet(mm)
1200
Number of layers
4
Pcs. per layer
198
Number of Frames
1

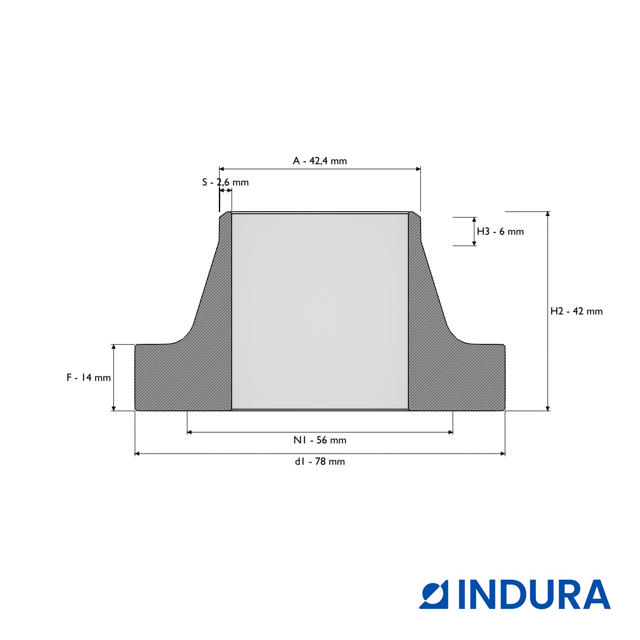

Drawing
