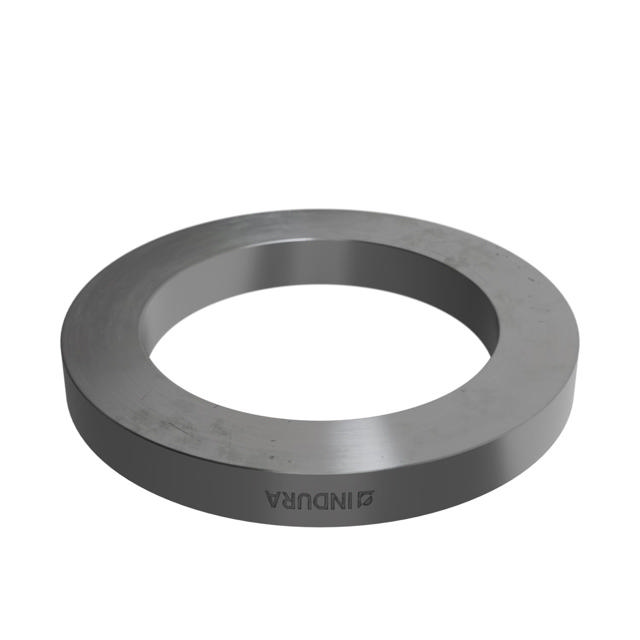

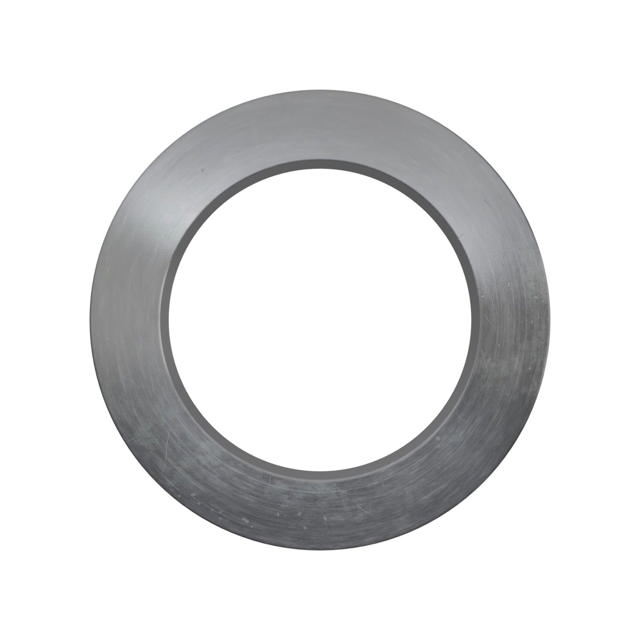

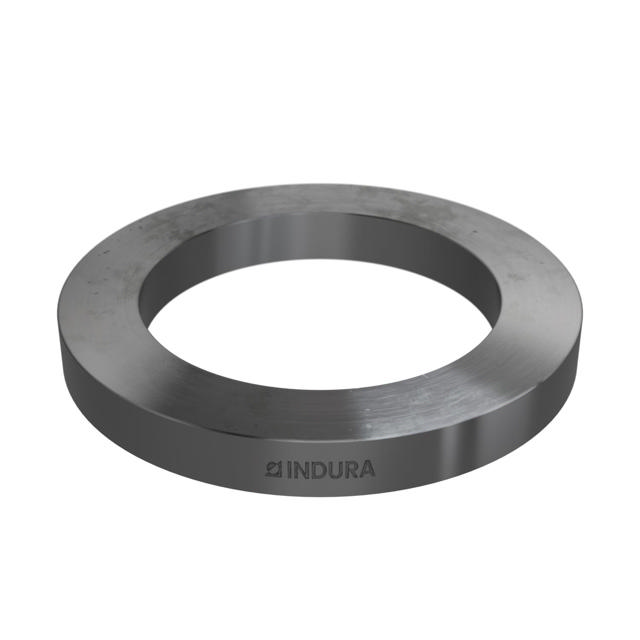

Weld-on plate collar, EN 1092-1, T:32, PN10-16, DN100, 108,0, S235JR
Item no.
000662108
Non-stock product
This is a non-stock product
When ordering, a quotation will be created instead of an order.
Product information
Material type
Carbon
Product Type
Weld-on plate collar
Norm
EN 1092-1
Norm Type
T:32
Material name
S235JR
Nominal pressure
PN10-16
HS code
7307910090
Norm 2
DIN 2642
EPD Co2(kg)
5.69
Material no.
1.0038
Important details
Double stamped norm - Special thickness
Net Weight (kg)
1.44
Nominal Pipe Size (DN)
100
Pipe Dimension Flange (d1)
108,0
Inside Diameter (B1)
109.6
Thickness F (F)
18
Number of Bolt Holes (n)
0
Packing Surface Diameter (d1)
158
Pcs. per pallet
495
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
550
Width pallet(mm)
800
Length pallet(mm)
1200
Number of layers
33
Pcs. per layer
15
Number of Frames
2

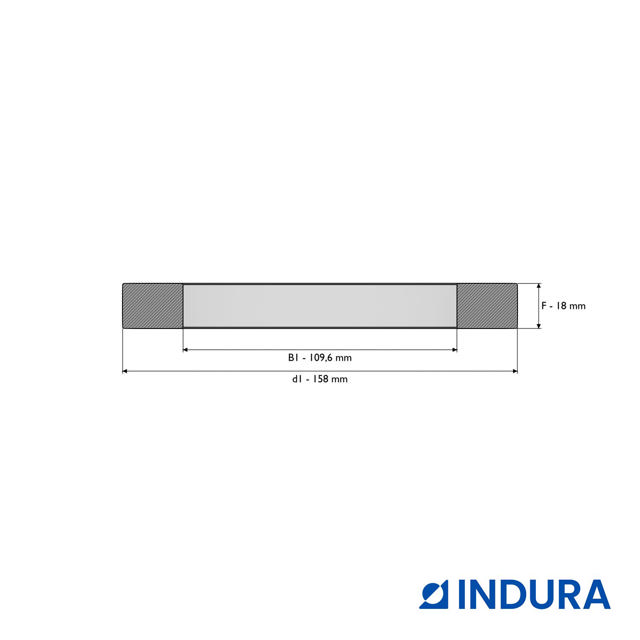

Drawing
