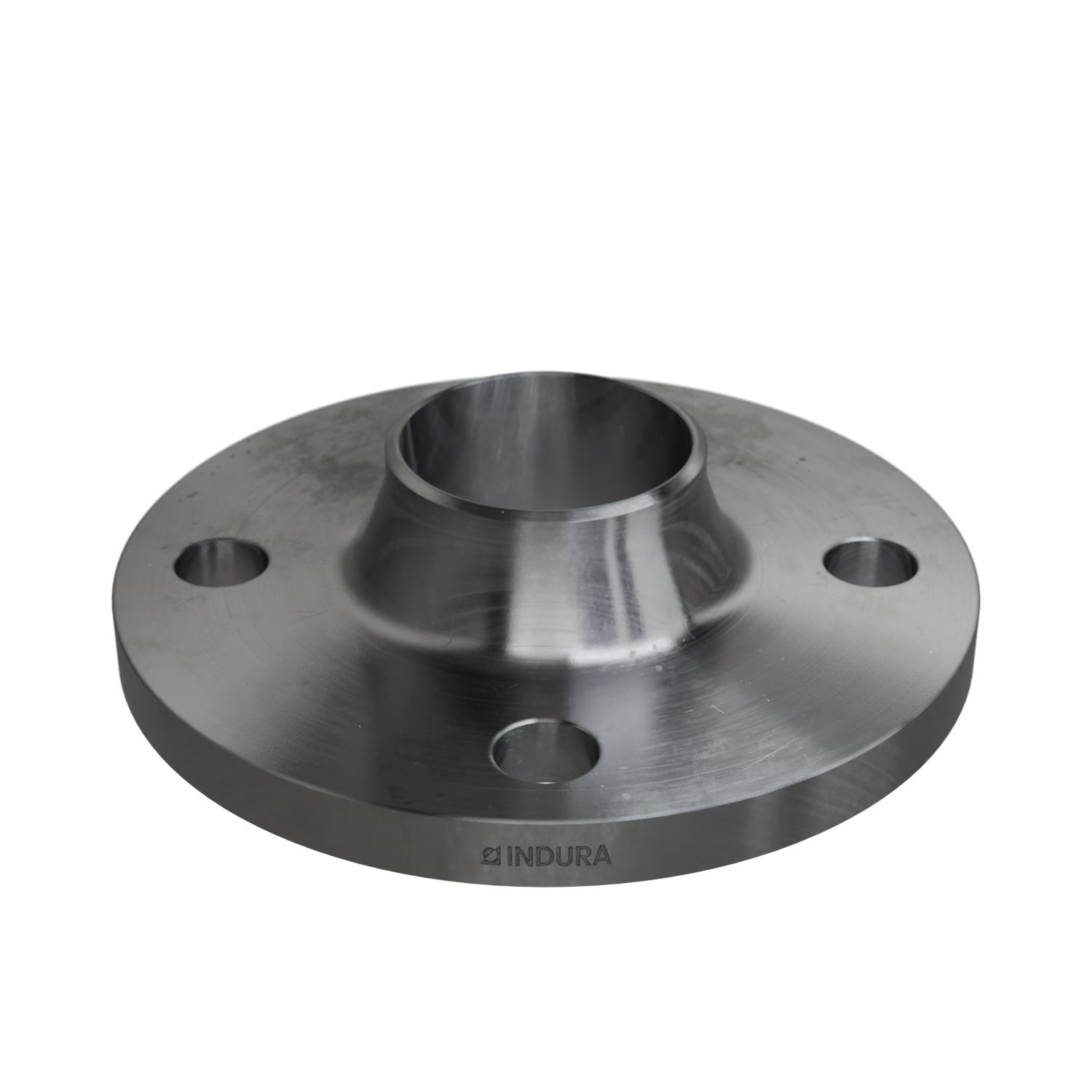

Weld-neck flange, EN 1092-1, T:11, PN10-16, DN150, 168,3, ISO, P250GH
Item no.
040623168
Not in stock
Product information
Material type
Carbon
Product Type
Weld-neck flange
Norm
EN 1092-1
Norm Type
T:11
Packing Surface Type
B1
Material name
P250GH
Nominal pressure
PN10-16
ISO or MET
ISO
HS code
7307910090
EPD Co2(kg)
5.69
Material no.
1.0460
Important details
Special S measure
Net Weight (kg)
9.7
Nominal Pipe Size (DN)
150
Pipe Dimension Flange (d1)
168,3
Outside Diameter (D)
285
Weld End Thickness (S)
7.1
Thickness 2 (C2)
22
Bolt Cirkel Diameter (K)
240
Number of Bolt Holes (n)
8
Bolt Hole Diameter (L)
22
Corner radius (R1)
10
Hub radius (R2)
2.4
Weld End Flat Point (Sf)
1.6
Weld End Chamfer outside 1(°)
30
Height 2 (H2)
55
Height 3 (H3)
12
Weld End Outside Diameter (A)
168.3
Low Outside Neck Diameter (N1)
184
Packing Surface Height (f1)
3
Packing Surface Diameter (d1)
212
Pcs. per pallet
36
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
350
Width pallet(mm)
800
Length pallet(mm)
1200
Number of layers
3
Pcs. per layer
12
Number of Frames
1
Drawing
Do you have any questions?
We are ready to assist with any questions about products, services, or anything else. Contact us for professional advice and support.
Alternative varer
Item number
Description
Norm
Material
Product Type
DN150 168,3 Weld-neck flange (S-4.5)
EN 1092-1 T:11 B1 PN10-16 ISO
P250GH 1.0460
Weld-neck flange
In stock
