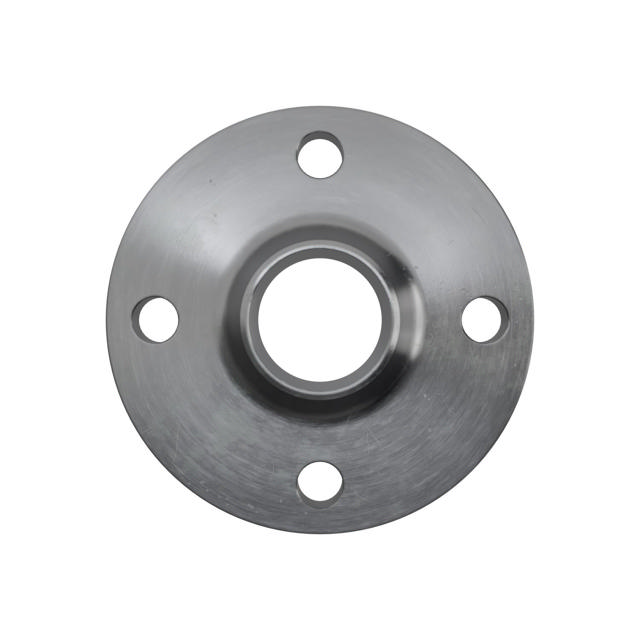

Weld-neck flange, EN 1092-1, T:11, PN6, DN40, 48,3, ISO, P250GH
Item no.
000621048
In stock
Product information
Material type
Carbon
Product Type
Weld-neck flange
Norm
EN 1092-1
Norm Type
T:11
Packing Surface Type
B1
Material name
P250GH
Nominal pressure
PN6
ISO or MET
ISO
HS code
7307910090
EPD Co2(kg)
5.69
Material no.
1.0460
Net Weight (kg)
1.2
Nominal Pipe Size (DN)
40
Pipe Dimension Flange (d1)
48,3
Outside Diameter (D)
130
Weld End Thickness (S)
2.6
Thickness 2 (C2)
14
Bolt Cirkel Diameter (K)
100
Number of Bolt Holes (n)
4
Bolt Hole Diameter (L)
14
Corner radius (R1)
6
Hub radius (R2)
1.6
Weld End Flat Point (Sf)
1.6
Weld End Chamfer outside 1(°)
30
Height 2 (H2)
38
Height 3 (H3)
7
Weld End Outside Diameter (A)
48.3
Low Outside Neck Diameter (N1)
62
Packing Surface Height (f1)
3
Packing Surface Diameter (d1)
80
Pcs. per pallet
376
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
350
Width pallet(mm)
800
Length pallet(mm)
1200
Number of layers
4
Pcs. per layer
94
Number of Frames
1

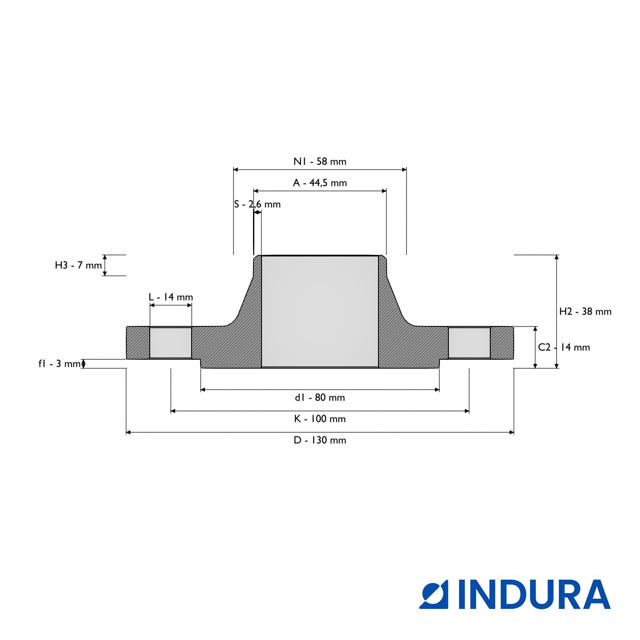

Drawing
