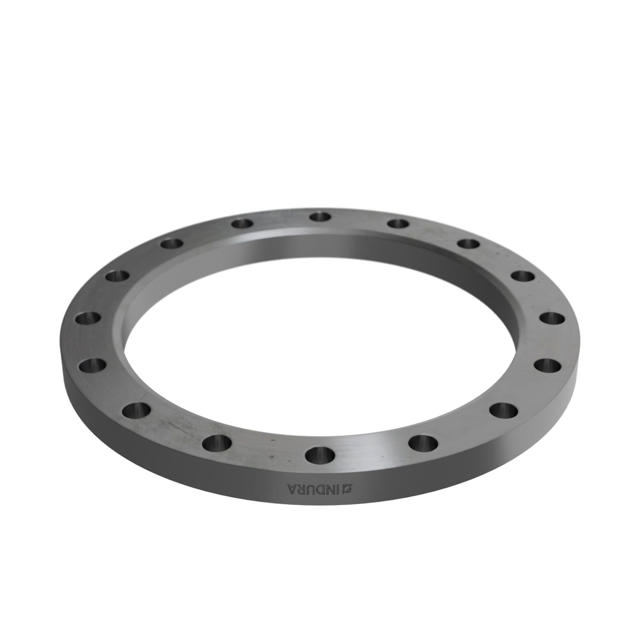

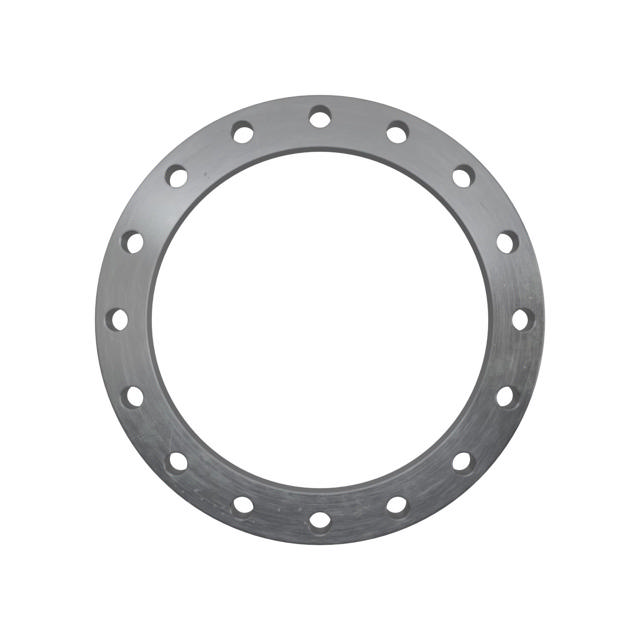

Loose plate flange, EN 1092-1, T:04, PN16, DN350, 355,6, ISO, P250GH
Item no.
000605357
In stock
Product information
Material type
Carbon
Product Type
Loose plate flange
Norm
EN 1092-1
Norm Type
T:04
Packing Surface Type
A
Material name
P250GH
Nominal pressure
PN16
ISO or MET
ISO
HS code
7307910090
EPD Co2(kg)
5.69
Material no.
1.0460
Net Weight (kg)
21.2
Nominal Pipe Size (DN)
350
Pipe Dimension Flange (d1)
355,6
Inside Diameter (B3)
400
Outside Diameter (D)
520
Thickness 1 (C1)
35
Bolt Cirkel Diameter (K)
470
Number of Bolt Holes (n)
16
Bolt Hole Diameter (L)
26
Chamfer (E)
8
Pcs. per pallet
30
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
750
Width pallet(mm)
800
Length pallet(mm)
1200
Number of layers
15
Pcs. per layer
2
Number of Frames
3

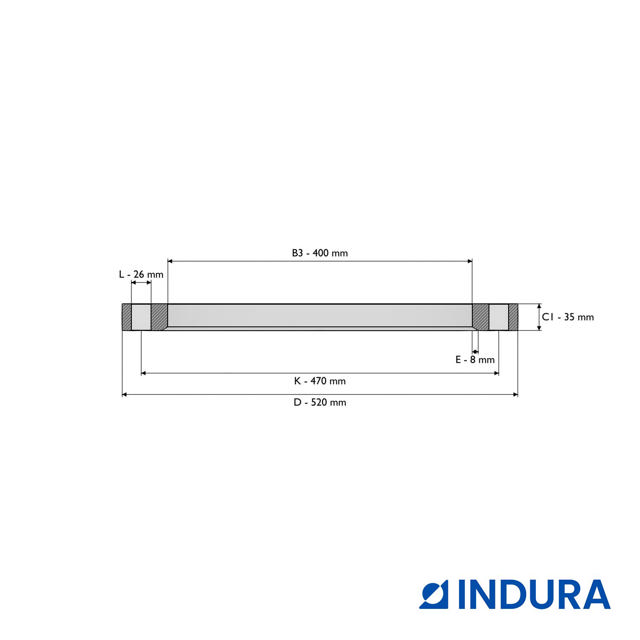

Drawing
Do you have any questions?
We are ready to assist with any questions about products, services, or anything else. Contact us for professional advice and support.
Relaterede varer
Item number
Description
Norm
Material
Product Type

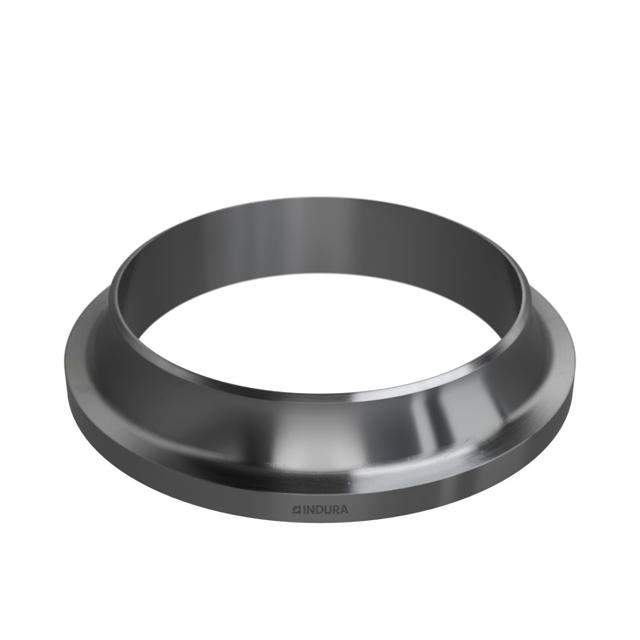

DN350 355,6 Weld-neck collar
