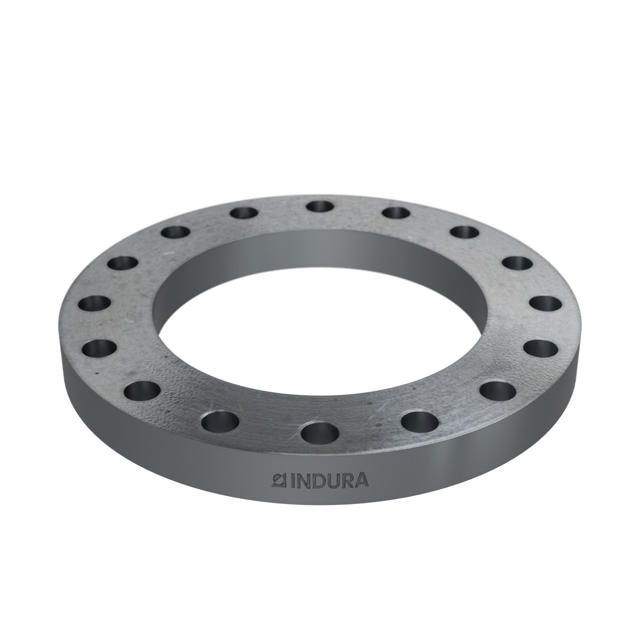

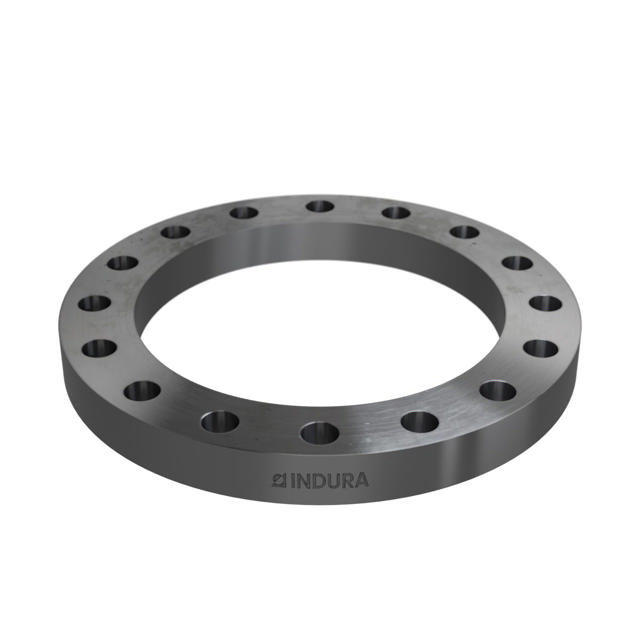

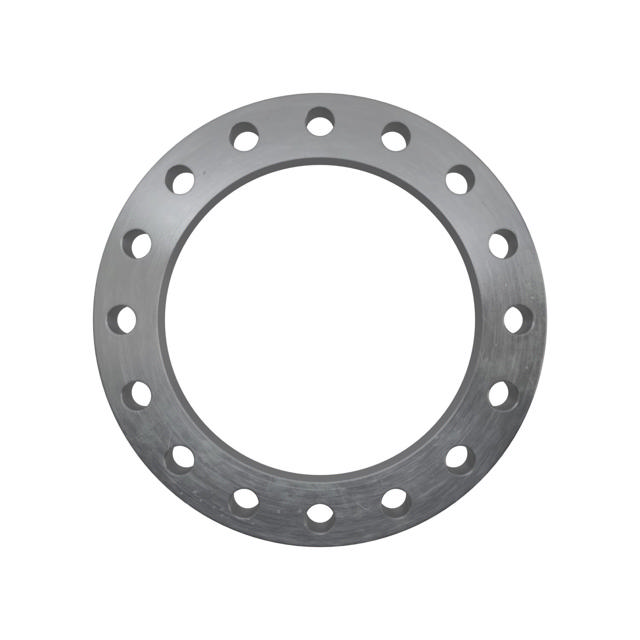

Loose plate flange, EN 1092-1, T:04, PN40, DN300, 323,9, ISO, P250GH
Item no.
000605327
In stock
Product information
Material type
Carbon
Product Type
Loose plate flange
Norm
EN 1092-1
Norm Type
T:04
Packing Surface Type
A
Material name
P250GH
Nominal pressure
PN40
ISO or MET
ISO
HS code
7307910090
EPD Co2(kg)
5.69
Material no.
1.0460
Net Weight (kg)
35.7
Nominal Pipe Size (DN)
300
Pipe Dimension Flange (d1)
323,9
Inside Diameter (B3)
368
Outside Diameter (D)
515
Thickness 1 (C1)
52
Bolt Cirkel Diameter (K)
450
Number of Bolt Holes (n)
16
Bolt Hole Diameter (L)
33
Chamfer (E)
8
Pcs. per pallet
-
Pcs. per box
-
Pcs. per bag
-

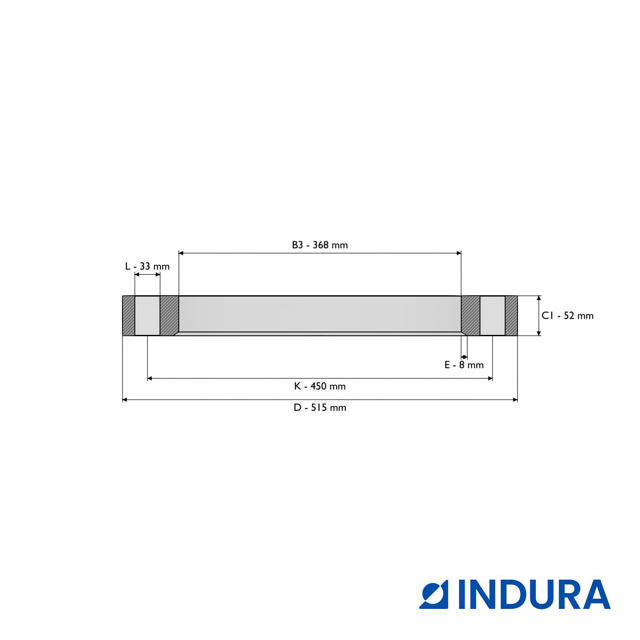

Drawing
Do you have any questions?
We are ready to assist with any questions about products, services, or anything else. Contact us for professional advice and support.
Relaterede varer
Item number
Description
Norm
Material
Product Type

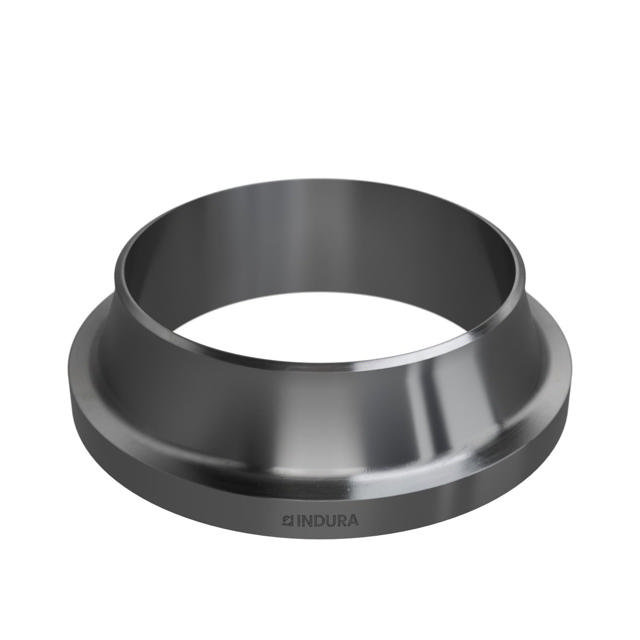

DN300 323,9 Weld-neck collar
EN 1092-1 T:34 PN40 ISO
P250GH 1.0460
Weld-neck collar
Non-stock product
Alternative varer
Item number
Description
Norm
Material
Product Type
DN300 323,9 Loose plate flange (B2-333)
EN 1092-1 T:02 A PN40 ISO
P280GH 1.0426 HDG
Loose plate flange
In stock
