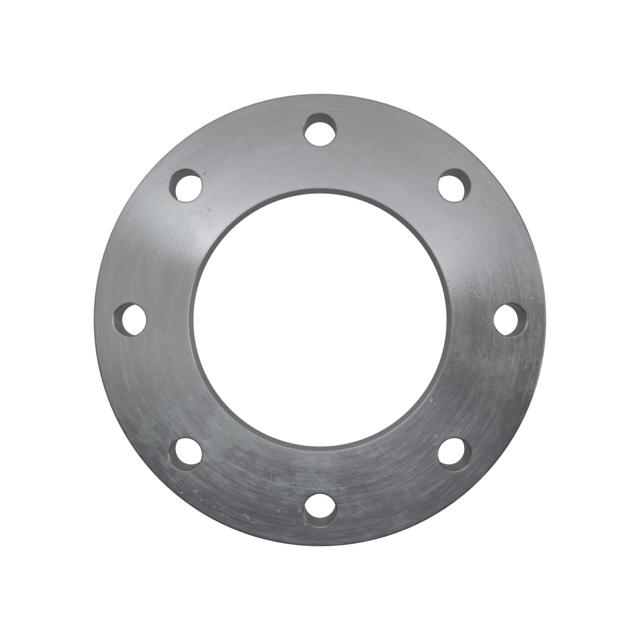

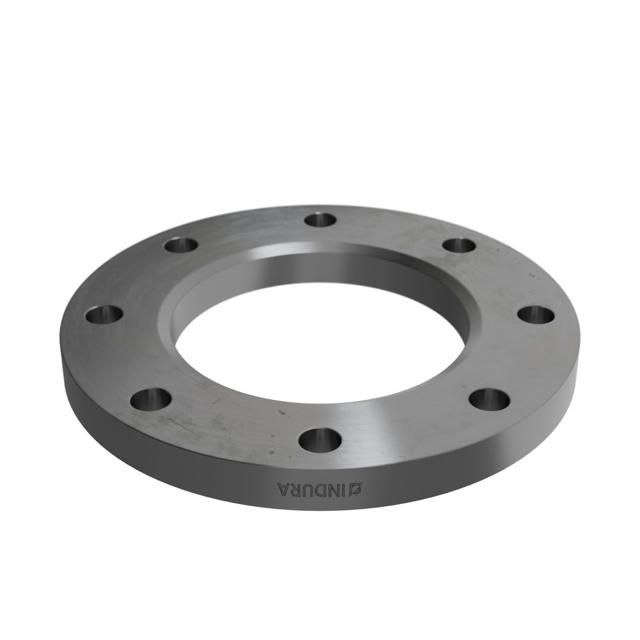

Loose plate flange, EN 1092-1, T:02, PN10-16, DN125, 139,7, ISO, S235JR
Item no.
000651140
In stock
Product information
Material type
Carbon
Product Type
Loose plate flange
Norm
EN 1092-1
Norm Type
T:02
Packing Surface Type
A
Material name
S235JR
Nominal pressure
PN10-16
ISO or MET
ISO
HS code
7307910090
EPD Co2(kg)
5.69
Material no.
1.0038
Net Weight (kg)
5.21
Nominal Pipe Size (DN)
125
Pipe Dimension Flange (d1)
139,7
Inside Diameter (B2)
145
Outside Diameter (D)
250
Thickness 1 (C1)
22
Bolt Cirkel Diameter (K)
210
Number of Bolt Holes (n)
8
Bolt Hole Diameter (L)
18
Chamfer (E)
6
Pcs. per pallet
84
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
350
Width pallet(mm)
800
Length pallet(mm)
1200
Number of layers
7
Pcs. per layer
12
Number of Frames
1

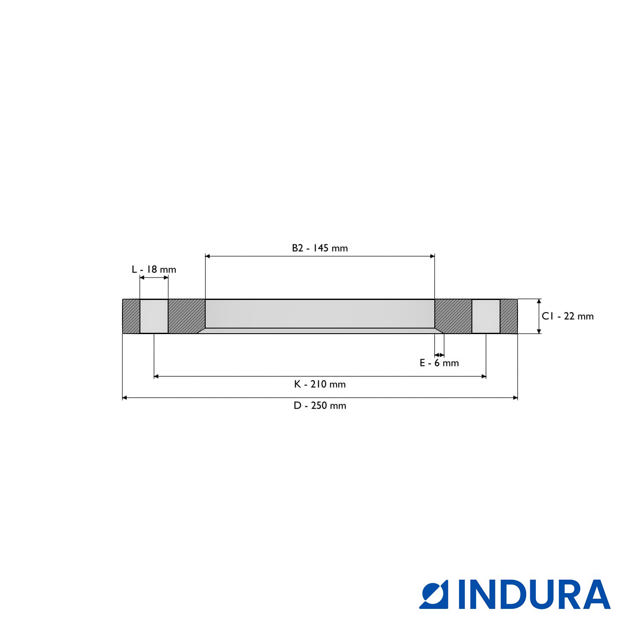

Drawing
