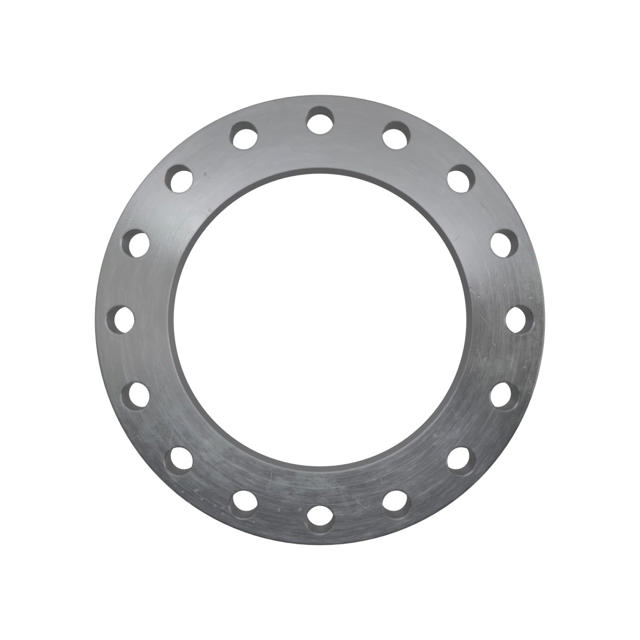

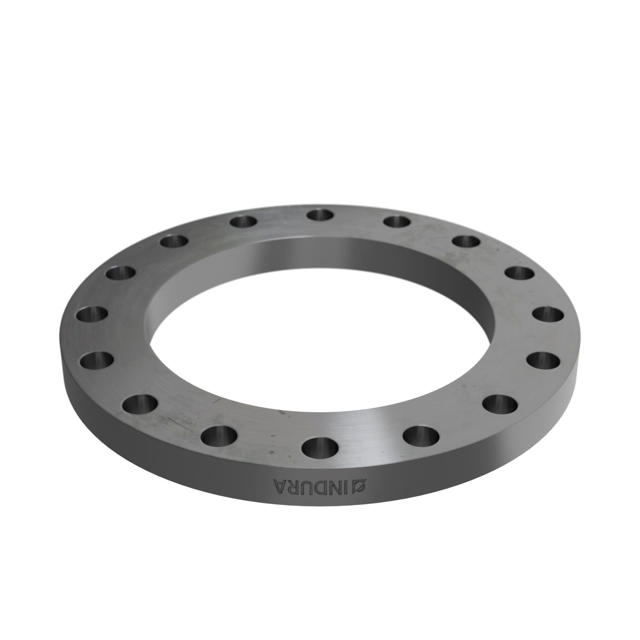

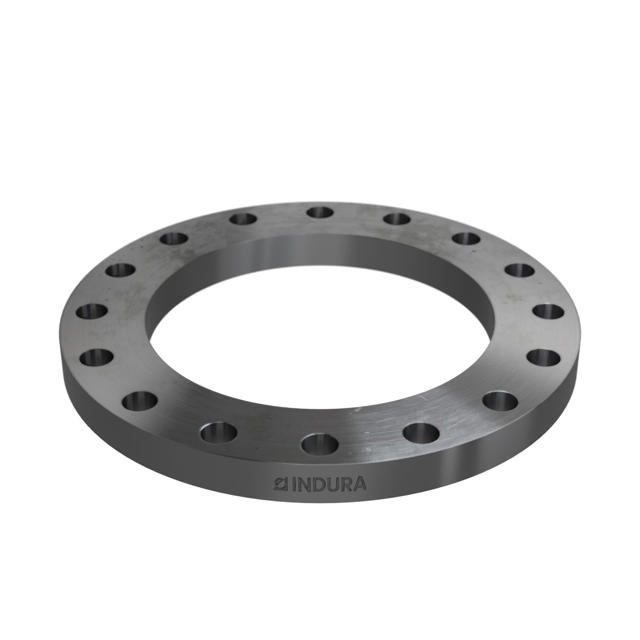

Plate flange, EN 1092-1, T:01, PN6, DN450, 457,0, ISO, S235JR
Item no.
000599457
Non-stock product
This is a non-stock product
When ordering, a quotation will be created instead of an order.
Product information
Material type
Carbon
Product Type
Plate flange
Norm
EN 1092-1
Norm Type
T:01
Packing Surface Type
A
Material name
S235JR
Nominal pressure
PN6
ISO or MET
ISO
HS code
7307910090
EPD Co2(kg)
5.69
Material no.
1.0038
Net Weight (kg)
24.6
Nominal Pipe Size (DN)
450
Pipe Dimension Flange (d1)
457,0
Inside Diameter (B1)
462
Outside Diameter (D)
595
Thickness 1 (C1)
30
Bolt Cirkel Diameter (K)
550
Number of Bolt Holes (n)
16
Bolt Hole Diameter (L)
22
Pcs. per pallet
17
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
750
Width pallet(mm)
800
Length pallet(mm)
1200
Number of layers
17
Pcs. per layer
1
Number of Frames
3

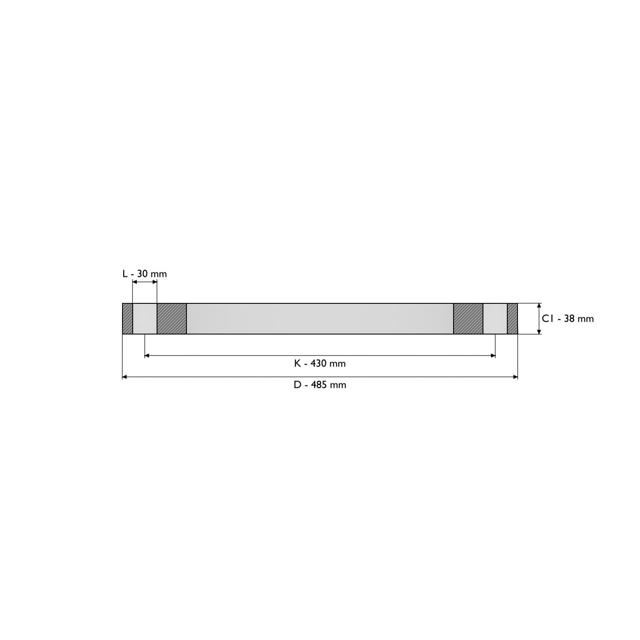

Drawing
