Welding neck flange, DIN, 2633, PN16, DN250, 273,0, P250GH
Item no.
070623273
Non-stock product
This is a non-stock product
When ordering, a quotation will be created instead of an order.
Product information
Packing Surface Description
w/Tongue
Material type
Carbon
Product Type
Welding neck flange
Norm
DIN
Norm Type
2633
Packing Surface Type
F
Material name
P250GH
Nominal pressure
PN16
HS code
7307910090
Norm 2
DIN 2512
EPD Co2(kg)
5.69
Material no.
1.0460
Net Weight (kg)
15.6
Nominal Pipe Size (DN)
250
Pipe Dimension Flange (d1)
273,0
Outside Diameter (D)
405
Weld End Thickness (S)
6.3
Thickness (b)
26
Bolt Cirkel Diameter (k)
355
Number of Bolt Holes (A)
12
Bolt Hole Diameter (d2)
26
Height 1 (h1)
70
Pcs. per pallet
32
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
750
Width pallet(mm)
800
Length pallet(mm)
1200
Number of layers
8
Pcs. per layer
4
Number of Frames
3

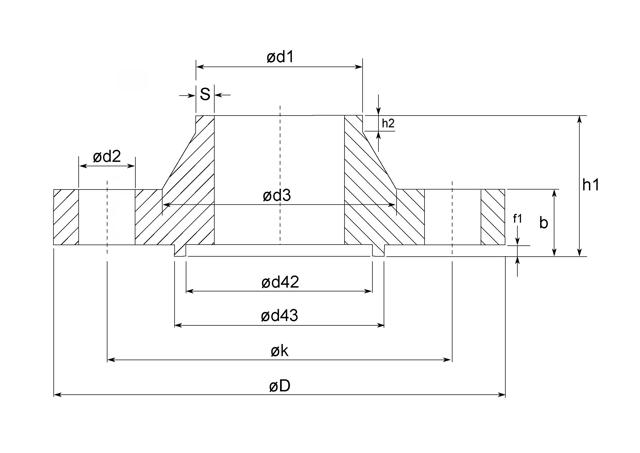

Drawing
