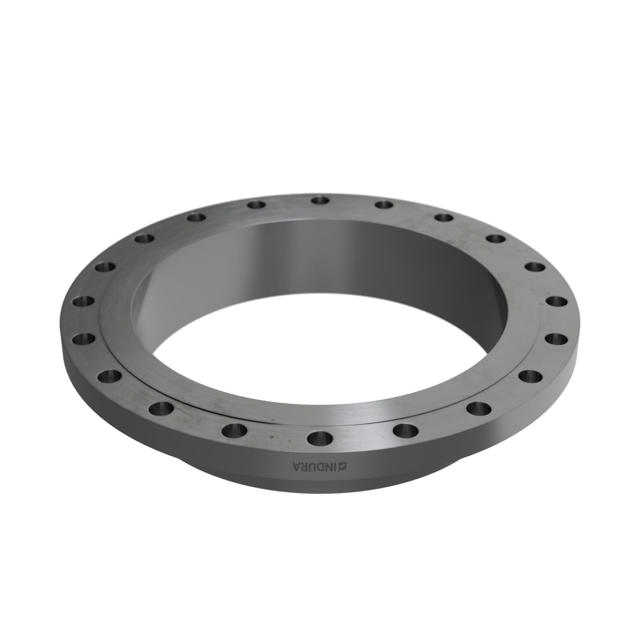

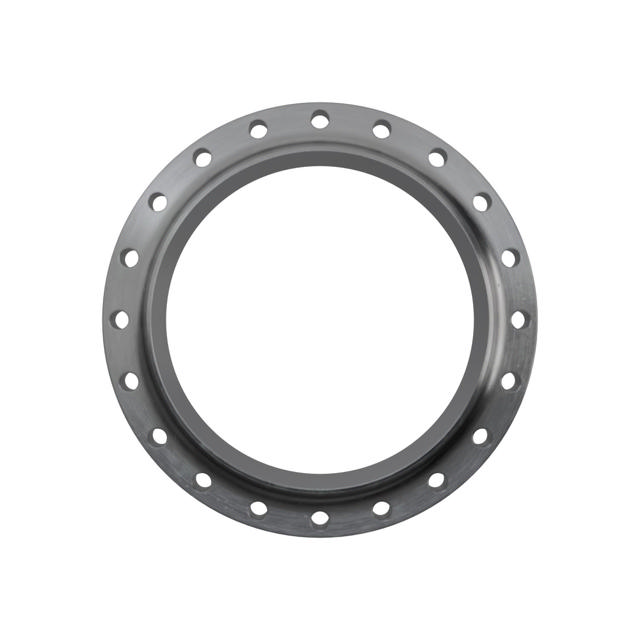

Welding neck flange, ASME B16.5, Sch. Std., 150 lbs, 24", LF2 C1-SA/A105N-P280GH
Item no.
002050610
In stock
Product information
Schedule
Sch. Std.
Material type
Carbon
Product Type
Welding neck flange
Norm
ASME B16.5
Packing Surface Type
RF
Material name
LF2 C1-SA/A105N-P280GH
Nominal pressure
150 lbs
HS code
7307910090
EPD Co2(kg)
5.69
Important details
Impact test
Net Weight (kg)
118
DN (DN)
600
Nominal Pipe Size(")
24"
Inside Diameter (B)
590.6
Outside Diameter (O)
813
Weld End Thickness (t)
9.53
Thickness (tf)
46
Bolt Cirkel Diameter (W)
749.3
Number of Bolt Holes (Z)
20
Bolt Hole Diameter (I)
34.9
Height (Y)
151
Weld End Outside Diameter (A)
609.6
Low Outside Neck Diameter (X)
663
Packing Surface Height (rf)
1.5
Packing Surface Diameter (R)
692.2
Pcs. per pallet
3
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
750
Width pallet(mm)
812.8
Length pallet(mm)
1200
Number of layers
3
Pcs. per layer
1

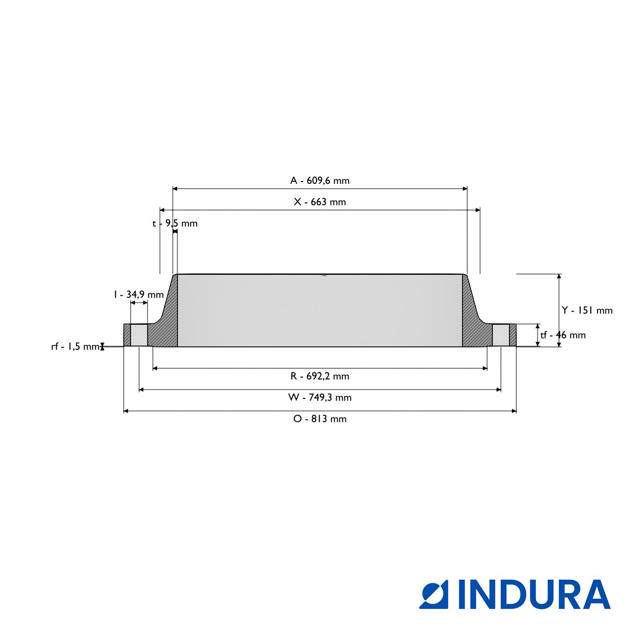

Drawing
