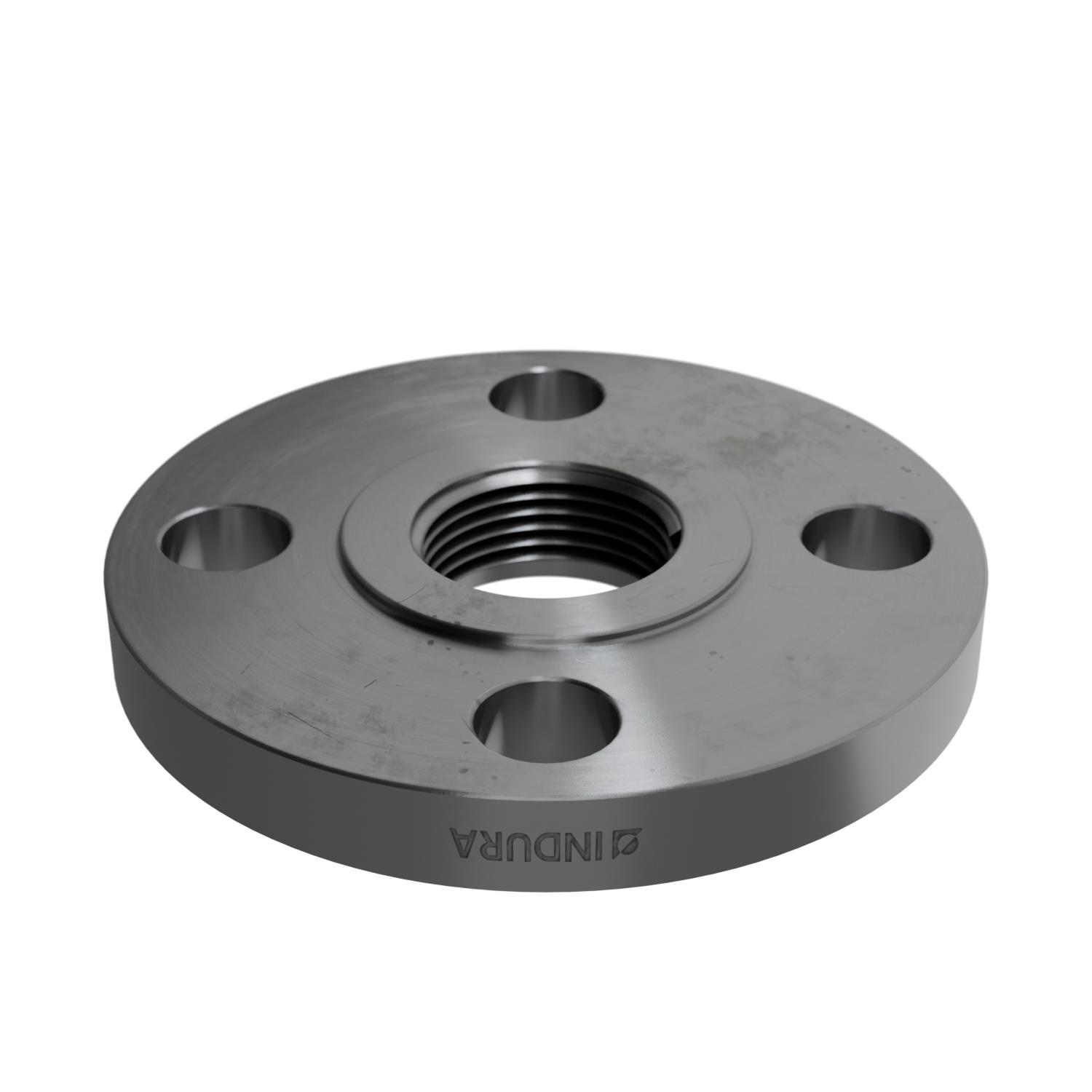

Threaded flange, ASME B16.5, 150 lbs, 1", LF2 C2-SA/A105N-P280GH
Item no.
002010034
In stock
Product information
Thread
NPT
Material type
Carbon
Product Type
Threaded flange
Norm
ASME B16.5
Packing Surface Type
RF
Material name
LF2 C2-SA/A105N-P280GH
Nominal pressure
150 lbs
HS code
7307910090
EPD Co2(kg)
5.69
Important details
Impact test
Net Weight (kg)
0.849
DN (DN)
25
Nominal Pipe Size(")
1"
Outside Diameter (O)
108
Thickness (tf)
12.7
Bolt Cirkel Diameter (W)
79.2
Number of Bolt Holes (Z)
4
Bolt Hole Diameter (I)
15.9
Height (Y)
16
Low Outside Neck Diameter (X)
49
Packing Surface Height (rf)
1.5
Thread Lenght (T)
18
Packing Surface Diameter (R)
50.8
Pcs. per pallet
432
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
350
Width pallet(mm)
800
Length pallet(mm)
1200
Number of layers
6
Pcs. per layer
72
Number of Frames
1

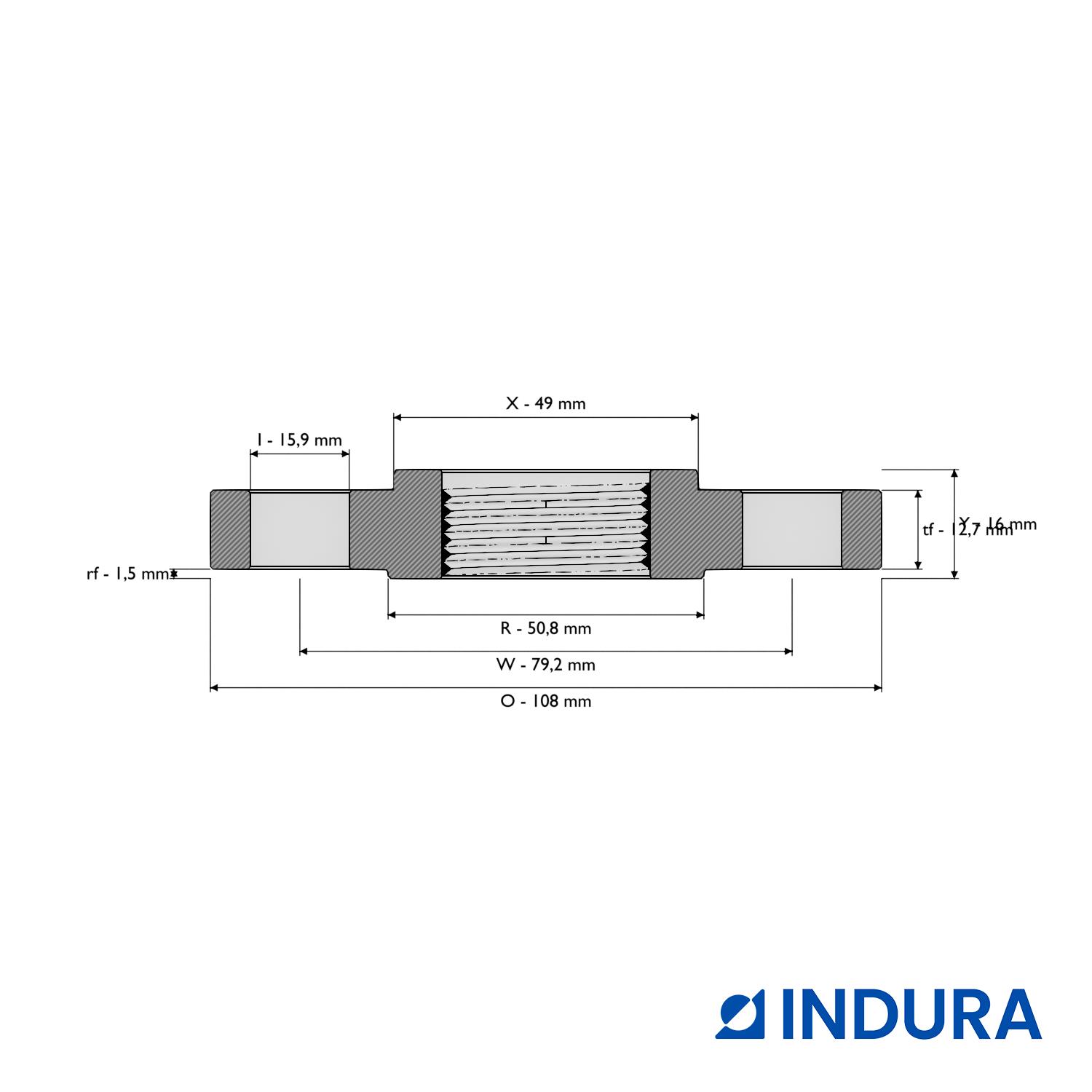

Drawing
