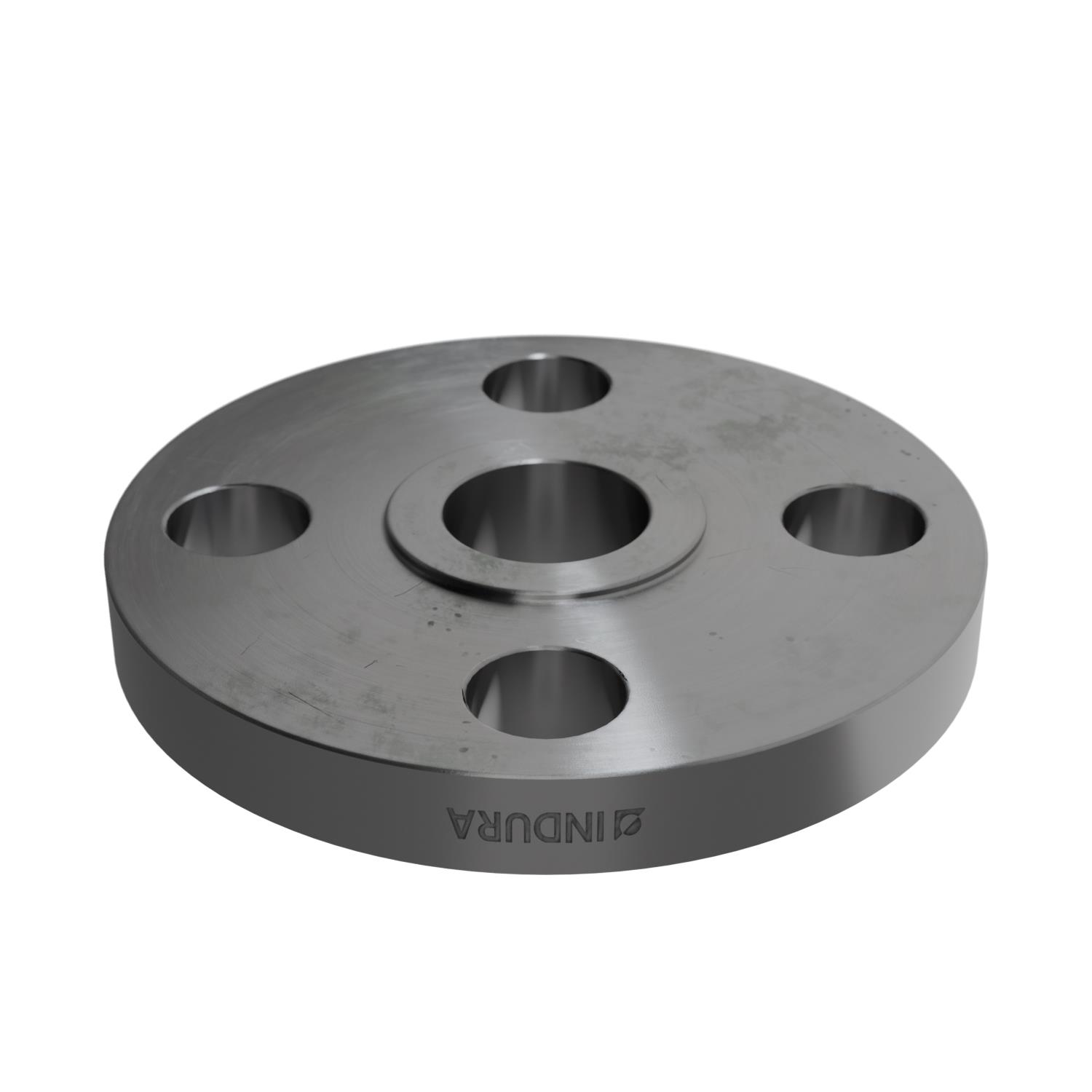

Slip-On flange, ASME B16.5, 300 lbs, 24", LF2 C2-SA/A105N-P280GH
Item no.
002311610
Non-stock product
This is a non-stock product
When ordering, a quotation will be created instead of an order.
Product information
Material type
Carbon
Product Type
Slip-On flange
Norm
ASME B16.5
Packing Surface Type
RF
Material name
LF2 C2-SA/A105N-P280GH
Nominal pressure
300 lbs
HS code
7307910090
EPD Co2(kg)
5.69
Important details
Impact test
Net Weight (kg)
201
DN (DN)
600
Nominal Pipe Size(")
24"
Inside Diameter (B)
616
Outside Diameter (O)
914
Thickness (tf)
68.3
Bolt Cirkel Diameter (W)
812.8
Number of Bolt Holes (Z)
24
Bolt Hole Diameter (I)
41.3
Height (Y)
105
Low Outside Neck Diameter (X)
702
Packing Surface Height (rf)
1.5
Packing Surface Diameter (R)
692.2
Pcs. per pallet
3
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
550
Width pallet(mm)
914.4
Length pallet(mm)
1200
Number of layers
3
Pcs. per layer
1
Drawing
