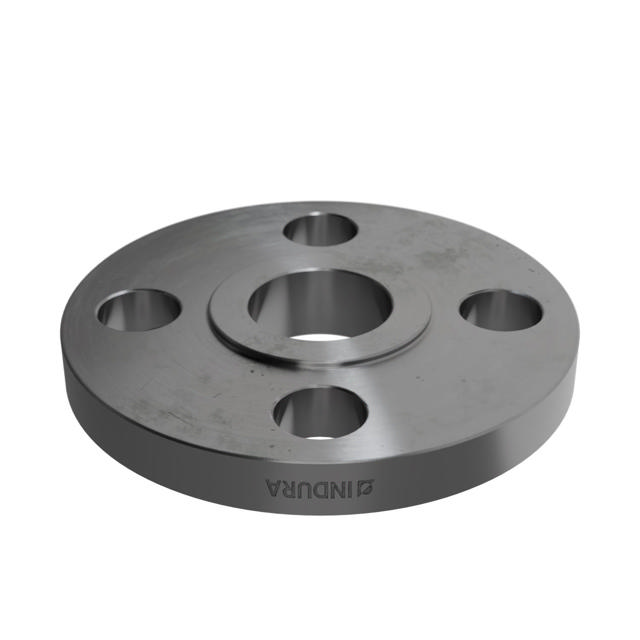

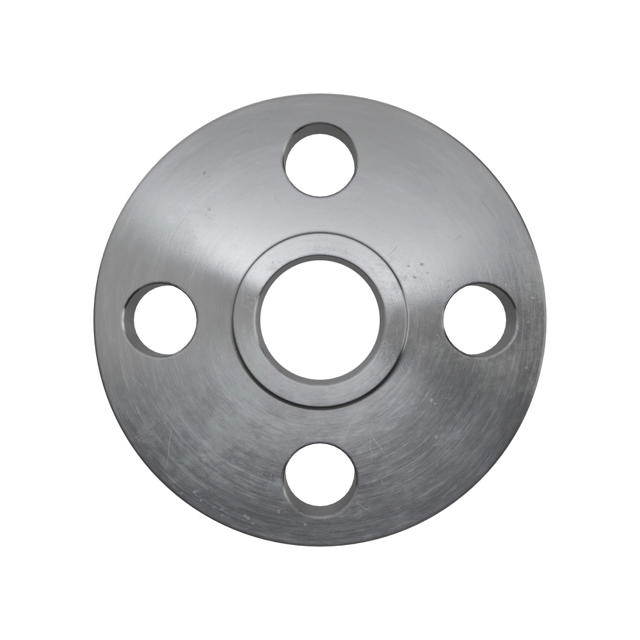

Slip-On flange, ASME B16.5, 150 lbs, 24", LF2 C1-SA/A105N-P280GH
Item no.
002310610
In stock
Product information
Material type
Carbon
Product Type
Slip-On flange
Norm
ASME B16.5
Packing Surface Type
RF
Material name
LF2 C1-SA/A105N-P280GH
Nominal pressure
150 lbs
HS code
7307910090
EPD Co2(kg)
5.69
Important details
Impact test
Net Weight (kg)
99.8
DN (DN)
600
Nominal Pipe Size(")
24"
Inside Diameter (B)
616
Outside Diameter (O)
813
Thickness (tf)
46
Bolt Cirkel Diameter (W)
749.3
Number of Bolt Holes (Z)
20
Bolt Hole Diameter (I)
34.9
Height (Y)
81
Low Outside Neck Diameter (X)
663
Packing Surface Height (rf)
1.5
Packing Surface Diameter (R)
692.2
Pcs. per pallet
6
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
750
Width pallet(mm)
812.8
Length pallet(mm)
1200
Number of layers
6
Pcs. per layer
1

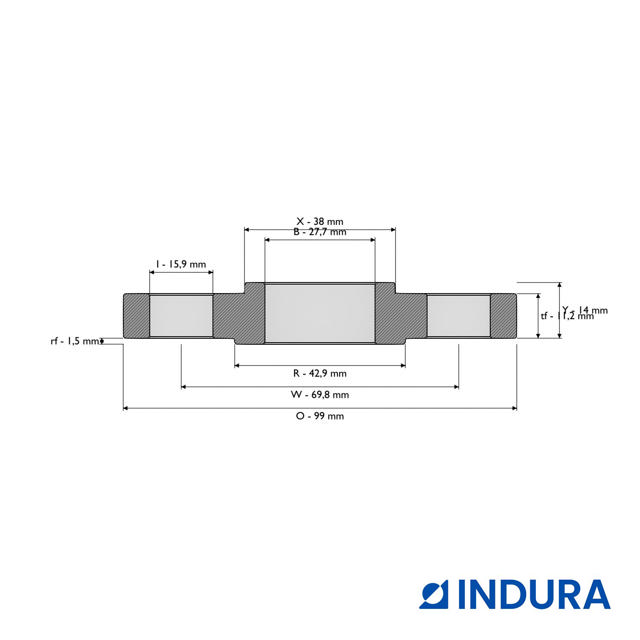

Drawing
