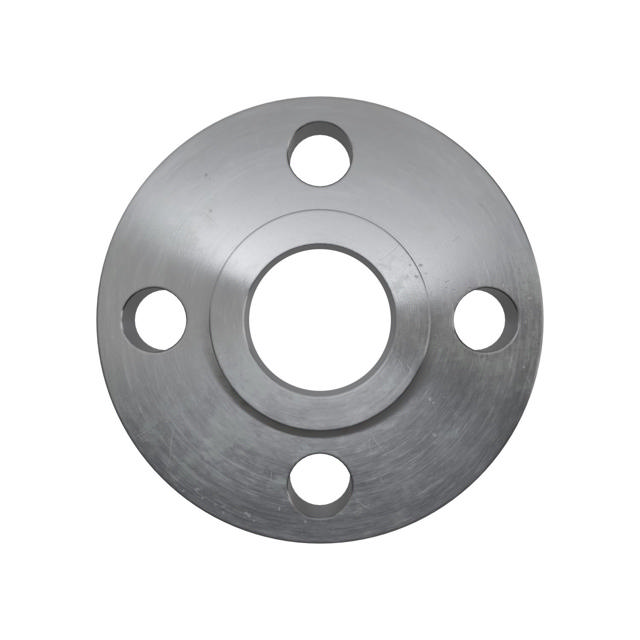

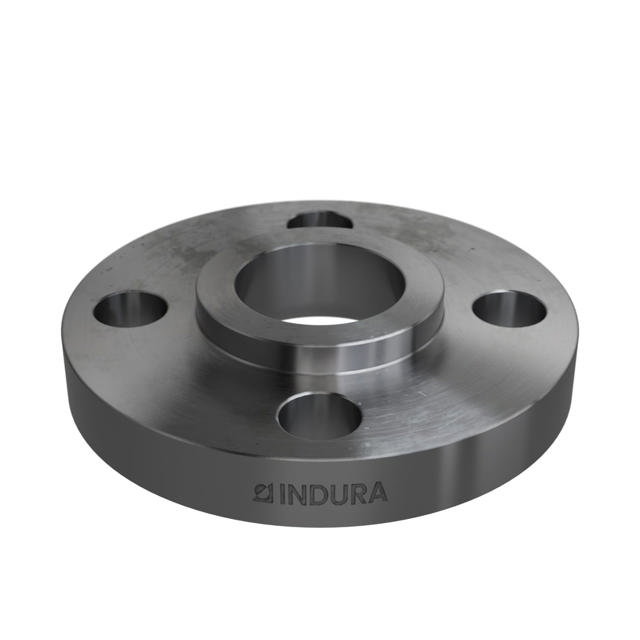

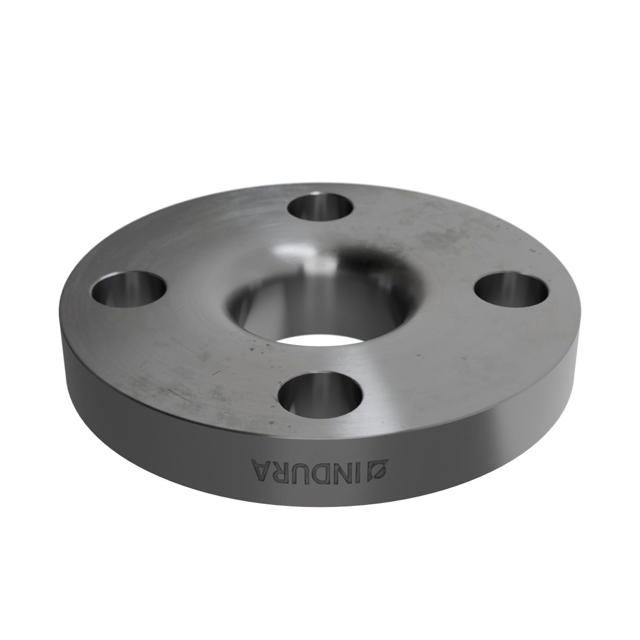

Lap Joint flange, ASME B16.5, 300 lbs, 1 1/4", LF2 C2-SA/A105N-P280GH
Item no.
002401042
Non-stock product
This is a non-stock product
When ordering, a quotation will be created instead of an order.
Product information
Material type
Carbon
Product Type
Lap Joint flange
Norm
ASME B16.5
Packing Surface Type
FF
Material name
LF2 C2-SA/A105N-P280GH
Nominal pressure
300 lbs
HS code
7307910090
EPD Co2(kg)
5.69
Important details
Impact test
Net Weight (kg)
1.85
DN (DN)
32
Nominal Pipe Size(")
1 1/4"
Inside Diameter (B)
43.7
Outside Diameter (O)
133
Thickness (tf)
19
Bolt Cirkel Diameter (W)
98.6
Number of Bolt Holes (Z)
4
Bolt Hole Diameter (I)
19.1
Height (Y)
27
Low Outside Neck Diameter (X)
64
Pcs. per pallet
288
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
350
Width pallet(mm)
800
Length pallet(mm)
1200
Number of layers
6
Pcs. per layer
48
Number of Frames
1

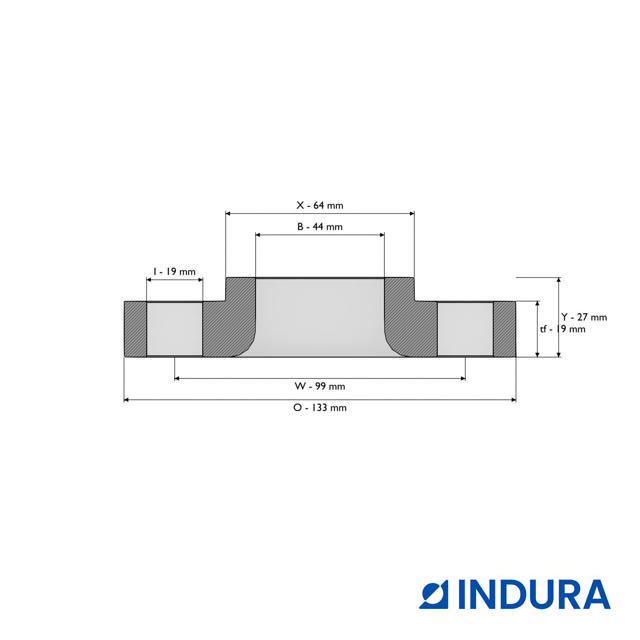

Drawing
