Blind flange, ASME B16.5, 150 lbs, 1/2", LF2 C1-SA/A105N-P280GH
Item no.
002250021
Not in stock
Product information
Material type
Carbon
Product Type
Blind flange
Norm
ASME B16.5
Packing Surface Type
RF
Material name
LF2 C1-SA/A105N-P280GH
Nominal pressure
150 lbs
HS code
7307910090
EPD Co2(kg)
5.69
Important details
Impact test
Net Weight (kg)
0.47
DN (DN)
15
Nominal Pipe Size(")
1/2"
Outside Diameter (O)
89
Thickness (tf)
9.7
Bolt Cirkel Diameter (W)
60.5
Number of Bolt Holes (Z)
4
Bolt Hole Diameter (I)
15.9
Packing Surface Height (rf)
1.5
Packing Surface Diameter (R)
34.9
Pcs. per pallet
432
Pcs. per box
-
Pcs. per bag
-
Height pallet(mm)
350
Width pallet(mm)
800
Length pallet(mm)
1200
Number of layers
4
Pcs. per layer
108
Number of Frames
1

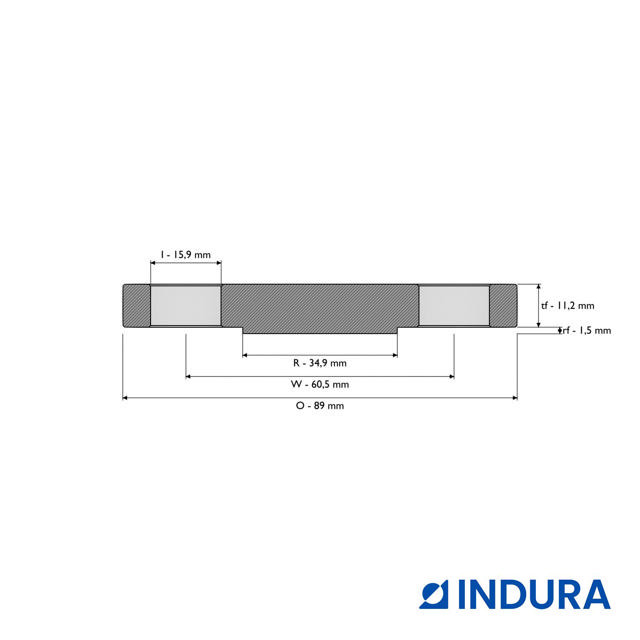

Drawing
